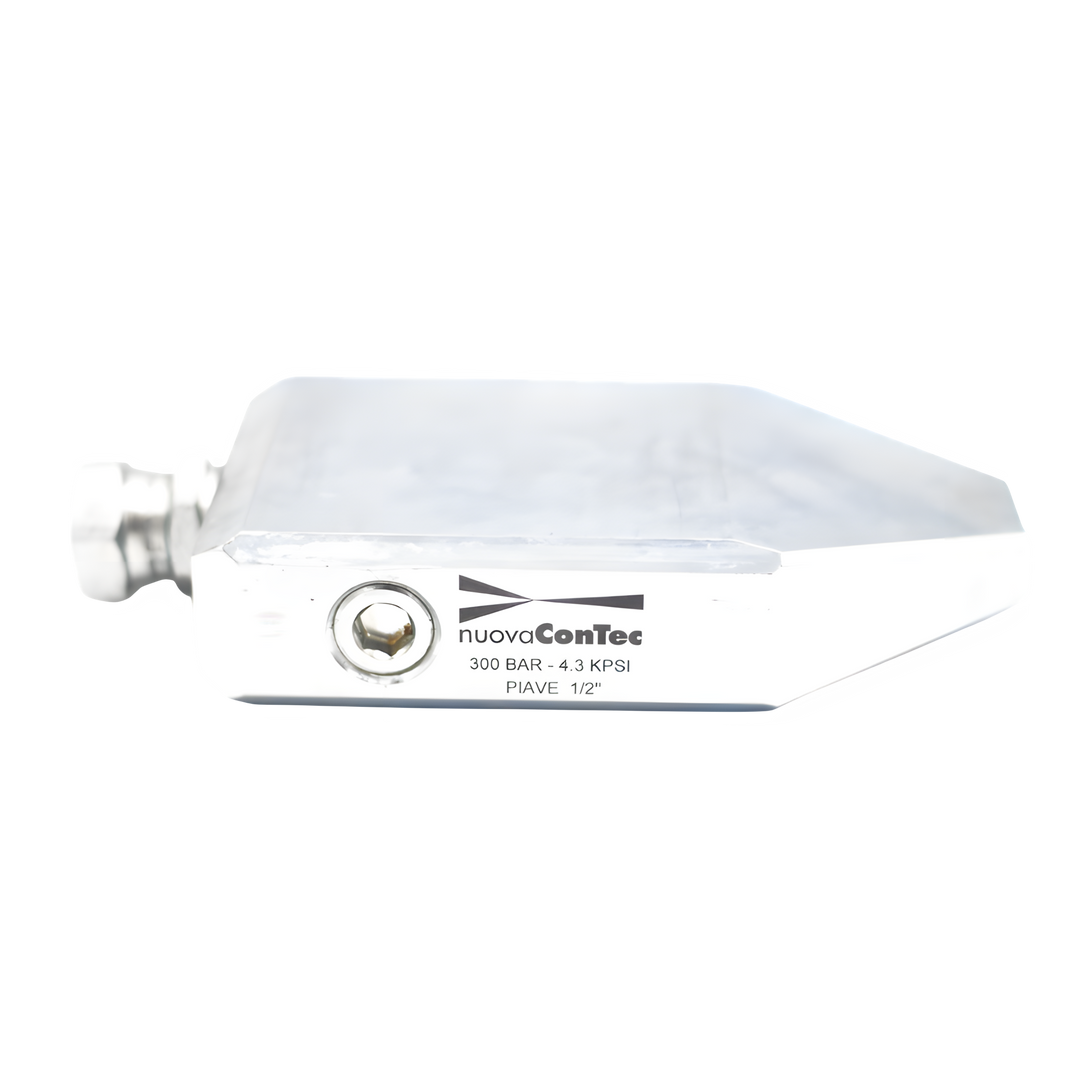

1/2" Piave Flat Cleaning Nozzle
JD014-12-2014
The 4 Rear Ceramic Inserts concentrate cleaning at the bottom of the pipe. The flat nozzle is ideal for removing sand, sludge, debris, etc. in 6" and 8" pipe. Suitable for portable jetters and low flow HP pumps. To be used for sand, sludge, sediments, debris in small flat pipes.
| Inlet | 1/2" F |
| Dimensions (inches) | 6.50 x 3.70 x 1.46 |
| Weight (lbs) | 7.72 |
| Jet Angle | 5° / 10° |
| Number of Jets | 4 |
| Type of Inserts (grain) | M10x1 |
| Minimum Flow (gpm) | 15.85 |
| Working DN (inches) | 5.91 - 9.84 |
