NCT Nozzles

Excellent Pulling and Flushing Power!!

• 50 - 80 GPM
• 6 or 8 Rear jets @ 15°
• Up to 3,000 PSI

The shape of the Arzino flushing nozzle allows easy navigation through tight elbows and provides easy retrieval from the pipe.  This Nozzle is ideal where high thrust is required in the pipe.  Comes 6 or 8 rear steel inserts set at a 15° angle for flushing power.  Also has optional front jet for Penetration.

Arzino Flushing Nozzle Specifications

Video of Arzino Flushing Nozzle

Turbine for Superior Drive and Thrust

Comes with Rotating Chain, Drilling Heads & Additional Chain

• 3 Rear jets @ 90° on Rotation for all nozzles
• 6 Rear jets @ 20° for thrust
• Good for Pipes 4" - 8"
• Comes with case
• Easy and Fast Changeable Chain Retainers

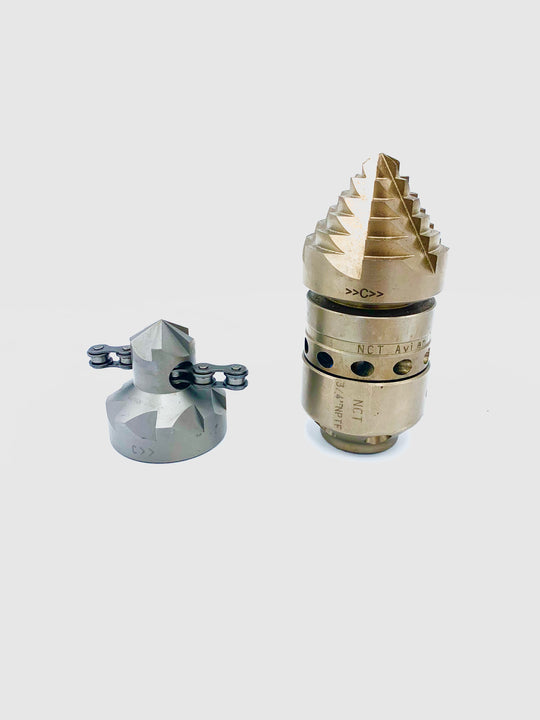

• Carbide Drilling Head Available

Carbide Head can be used instead of steel drilling head for more aggressive drilling in pipe

*** Please note in comments during checkout what PSI and GPM you require***

Turbing Cutting Nozzle Specifications

Turbine for Superior Drive and Thrust

Features:

• 50-80 GPM, up to 3,000 PSI
• 3 rear jets @ 90° on Rotation for all nozzles
• Comes with case
• Easy and fast changeable chain retainers

Turbine Cutting Nozzle Specifications

Turbine for Superior Drive and Thrust

Features:

• 50-80 GPM, up to 3,000 PSI
• 3 rear jets @ 90° on Rotation for all nozzles
• Comes with case
• Comes with stainless steel drilling head; Carbide drilling head available

Carbide head can be used instead of steel drilling head for more aggressive drilling in pipe.

Turbine Cutting Nozzle Specifications

The premier penetrating nozzle made by NCT

The rotating front jet forms a high efficiency water cone with high impact capacity for blockages and obstructions making the nozzle much more aggressive than a conventional front jet penetrator.   This nozzle is ideal when jetting downstream from the entry point to the main for scale removal, grease, roots etc.

• High Impact Rotating Front Jet !
• 8 Ceramic rear jets @ 20°
• 50 - 80 GPM, up to 3,000 PSI

'Bora' Penetrator Nozzle Specifications

Video of Twister Penetrator Nozzle

Low Angle Jets for High Thrust

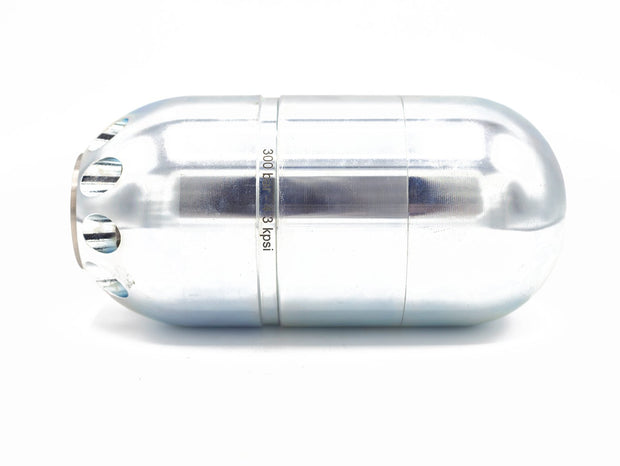

The ultimate flushing power in larger pipe

• 50 - 80 GPM
• Up to 3,000 PSI
• 6 or 10 Rear Ceramic Jets at 5° & 10°

These high efficiency nozzles are manufactured in hardened alloy steel and are designed for high thrust. A Deviator set inside the nozzle maximizes flow efficiency reducing pressure drop.

Canin High Efficiency Nozzle Specifications

Video of Canin High Efficiency Nozzle

Dual Degree Pattern For Thrust & Cleaning
Spray pattern allows for strong cleaning without loss of pulling traction

• 16 Ceramic Rear Jets
• 8 rear jets at 20°
• 8 rear jets at 30°
• 60 - 80 GPM, up to 2,000 PSI
• Weight: 22 lbs.

Duranno high efficiency nozzles are manufactured in hardened alloy steel and are designed for a combination of general pipe wall cleaning and expelling of materials from the pipe. These nozzles are supplied with ceramic inserts. To improve the performance a deviator is set inside the Nozzle to maximize flow efficiency, reducing pressure drop. A very effective combination Cleaning Nozzle for any large Jetter.

Fara 1" High Thrust Nozzle

Low Angle Jets for High Thrust

The Ultimate flushing power in larger pipe

Features:

• 10 Rear Ceramic Jets @ 15° For Heavy Removal
• 60 - 80 GPM
• Up to 2,000 PSI

These high efficiency nozzles are manufactured in hardened alloy steel and are designed for general cleaning and expelling of materials. These nozzles are supplied with ceramic inserts. To improve nozzle performance high efficiency nozzles have a deviator inside the nozzle to maximize flow efficiency, reducing pressure drop. A quality Cleaning or Flushing Nozzle for any large jetter.

High Thrust Jetter Nozzle Specifications

Hardened Stainless Steel
All Ceramic Inserts
PERFORMANCE AND DURABILITY!

• 50 - 80 GPM
• up to 3,000 PSI

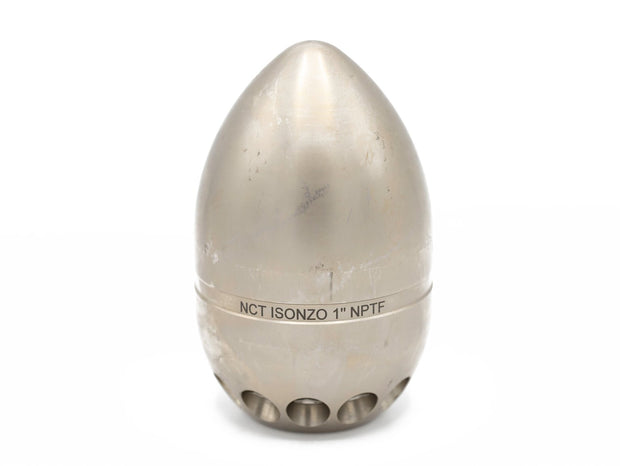

• 30° High angle jets for effective cleaning of pipe walls
• A Deviator set inside the nozzle maximizes flow efficiency reducing pressure drop

Best choice in frequent mainline cleaning

Isonzo Cleaning Nozzle Specifications

Video of Isonzo Grenade Cleaning Nozzle

Best High Performance Kit for Jet Operator !
50-80 GPM, up to 3,000 PSI - Nozzle Case Included
Deviator set Inside Nozzles Maximizes Flow Efficiency Reducing Pressure Drop.

• CANIN - 6/10 Rear Jets @ 5° & 10°
• Superb Thrust for Flushing and Expelling of Materials
• BORA - 1F and 6/8 Rear Jets @ 20°
• Rotating Front Cone Jet for More Efficient High Impact Penetration
• ISONZO - 1F(optional) and 6/8/12 Rear Jets @ 30°
• Excellent Pipe Wall Cleaning Prior to Lining/TV Inspection
• High Performance Kits with ALL CERAMIC Inserts

High Performance Package - With Case!
50-80 GPM, up to 3,000 PSI
Limited Time Special - Excellent Value - Quality Nozzles!

• Tremol- Spinner Nozzle for Descaling and Grease etc.
• Arzino - Egg Style Flushing Nozzle
• Isonzo - The Best General Cleaning Nozzle
• Raut - Forward Penetration - Blockage Removal
• High performance 4 nozzle kit ALL with replaceable inserts

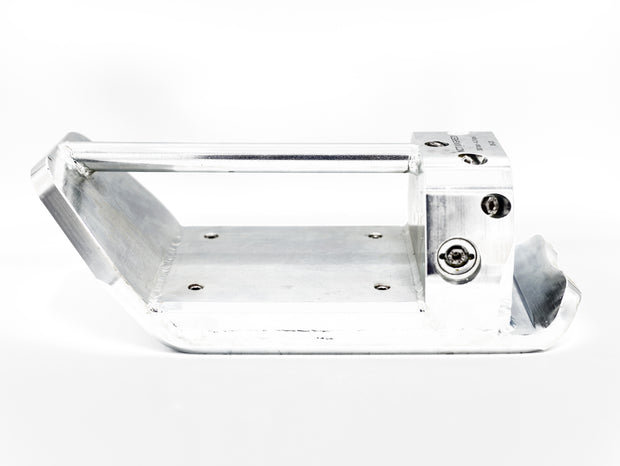

Skid Shaped Heavy Shovel Nozzle for Floor Cleaning in Flat Pipes.
Nozzle is a virtual water shovel in larger lines.

Applications: Sand, Sludge, Mud, Stones, Rocks, etc.

• 9 rear jets inclined @ 0°/5°/10°/15°/25°
• Additional 7 Jets - 5@75° / 2@90° for Total Pipewall Cleaning
• Use with rotary swivel
• 50 - 100 GPM, up to 3,000 PSI
• Works in 15" - 60" size pipes
• All Replaceable Ceramic Inserts.

Works great in 15" to 60" Pipe. This water shovel nozzle needs a minimum of 50 GPM and a max pressure of 3,000 PSI. Makes easy work of removing sand, sludge, stones, rocks and debris from the pipe. Replaceable ceramic inserts.

Magredi Nozzle Specifications

Video of Magredi Nozzle

Skid shaped heavy shovel nozzle for floor cleaning in flat pipes.
Nozzle is a virtual water shovel in larger lines.

Applications: sand, sludge, mud, stones, rocks, etc.

• 9 rear jets inclined @ 0°/5°/10°/15°/25°
• Use with rotary swivel
• 50 - 100 GPM, up to 3,000 PSI
• Works in 15" - 60" size pipes
• All replaceable ceramic inserts.

Works great in 15" to 60" Pipe. This water shovel nozzle needs a minimum of 50 GPM and a max pressure of 3,000 PSI. Makes easy work of removing sand, sludge, stones, rocks and debris from the pipe. Replaceable ceramic inserts.

Magredi Nozzle Specifications

Video of Magredi Nozzle

This versatile chain cutting combo kit is used for more aggressive cutting with bike chain.
Would need centralizer. Very well priced combo kit!

Pattern: 3 Jets @ 90° on spin - 6 @ 25° on rear (Ceramic Inserts)

• 40-100 GPM
• Up to 2,500 PSI
• Comes with three lengths of motor chains
• Motor chain for 8", 12", 18, and 24" pipes
• Knife head included
• Tools to Replace Chains and Inserts
• Comes with case

Maniago Root Cutter Nozzle Specifications

Multiple front jets for penetrating total blockages, grease obstructions, etc.

• 3F @ 20° - 1F @ 0° steel inserts
• 6 or 3 Rear Jets @ 20°
• 50 - 80 GPM
• Up to 3,000 PSI

Raut Chisel Point Nozzle Specifications

Video of Raut Chisel Point Nozzle

'Solo' Turbine Chain Nozzle Kit

Root Cutter Nozzle with Welded Carbide Plates on Circular Chain.

• 1" Nozzle Works in 6" & 8" Pipe
  - Comes with 6" & 8" Chain and Centralizers
  - 4 rear Ceramic inserts at 20° - 3 @ 90° on Rotation
  - 50-80 GPM up to 3,000 PSI
• All Kits come with Nozzle Case

Aggressive Carbide Tipped Chain for Roots and Hard Materials on Pipe Wall.

Very Effective on Removal of Unsuccessful Liners, Patch Repairs, etc.

Solo Turbine Nozzle Specifications

Video of Solo Turbine Nozzle

The "Tremol" series of spinner nozzles are very effective tools for cleaning inside of pipes. The rotating element and jets scour the surface of the pipe loosening hard debris. Spinner nozzles are great for descaling and emulsifying grease.

• 4 Jets on spin barrel @ 90°
• 6 or 3 Rear jets @ 20°
• 50-80 GPM, up to 3,000 PSI
• Cleans the entire inside pipe wall

Tremol Nozzle Specifications

Video of Tremol Spinner Nozzle

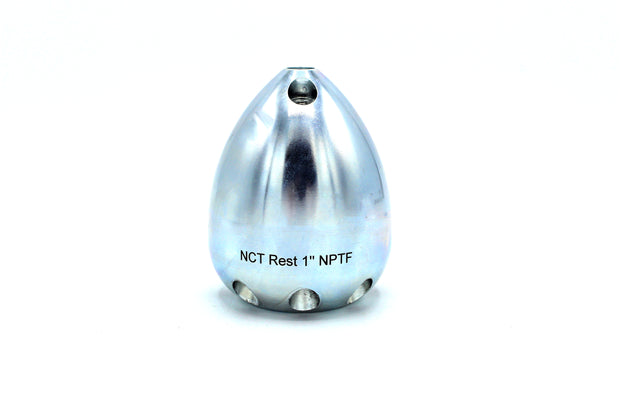

Successfully navigates over offsets in the pipe!
Removes obstructions and opens blockages in no time!
15° Rear jets to flush back debris!

• 3 front jets at 15° and 1 front jet at 0°
• 6 or 8 rear jets @ 15°
• Replaceable steel and ceramic inserts
• 50 - 80 GPM, up to 3,000 PSI

VIBRATION AND BOUNCE BREAK UP DEPOSITS
Displaces the most resistant deposits in 4"-24" pipes

Intended for use in plastic (HDPE, PVC etc.) and cast iron pipes only.

• Removes mineral deposits, concrete, building materials, etc
• Lightweight vibrating nozzle with ceramic inserts
• Head and rear body shape avoids nozzle getting stuck on joints
• 50 - 80 GPM

Vibro 'Jiggler' Nozzle Specifications

Video of the Vibro Jiggler Nozzle

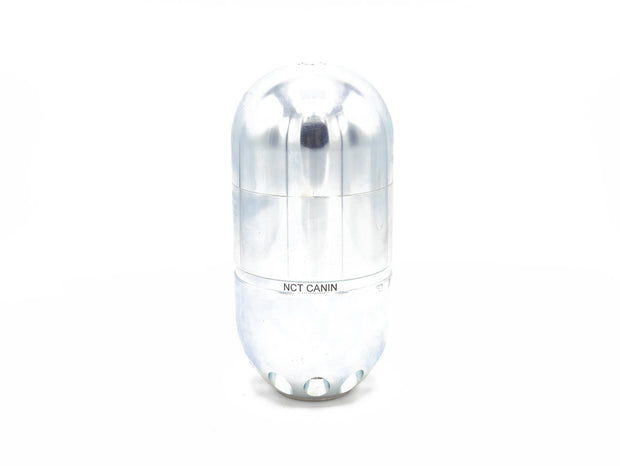

Low Angle Jets for High Thrust
The ultimate flushing power in larger pipe

• 80 - 120 GPM
• Up to 3,000 PSI
• 6 or 10 Rear Ceramic Jets at 5° & 10°

These high efficiency nozzles are manufactured in hardened alloy steel and are designed for high thrust. A Deviator set inside the nozzle maximizes flow efficiency reducing pressure drop.

Canin High Efficiency Nozzle Specifications

Video of Canin High Efficiency Nozzle

Dual Degree Pattern For Thrust & Cleaning
Spray pattern allows for strong cleaning without loss of pulling traction

• 16 Ceramic Rear Jets
• 8 rear jets at 20°
• 8 rear jets at 30°
• 60 - 80 GPM, up to 2,000 PSI
• Weight: 22 lbs.

Duranno high efficiency nozzles are manufactured in hardened alloy steel and are designed for a combination of general pipe wall cleaning and expelling of materials from the pipe. These nozzles are supplied with ceramic inserts. To improve the performance a deviator is set inside the Nozzle to maximize flow efficiency, reducing pressure drop. A very effective combination Cleaning Nozzle for any large Jetter.

The "Tremol" series of spinner nozzles are very effective tools for cleaning inside of pipes. The rotating element and jets scour the surface of the pipe loosening hard debris. Spinner nozzles are great for descaling and emulsifying grease.

• 4 Jets on spin barrel @ 90°
• 6 or 3 Rear jets @ 20°
• 60-80 GPM, up to 3,000 PSI
• Cleans the entire inside pipe wall

Tremol Nozzle Specifications

Video of Tremol Spinner Nozzle

Excellent Pulling and Flushing Power!!

• 10 - 25 GPM
• 6 or 8 Rear jets @ 15°
• Up to 4,000 PSI

The shape of the Arzino flushing nozzle allows easy navigation through tight elbows and provides easy retrieval from the pipe.  This Nozzle is ideal where high thrust is required in the pipe.  Comes 6 or 8 rear steel inserts set at a 15° angle for flushing power.  Also has optional front jet for Penetration.

Arzino Flushing Nozzle Specifications

Video of Arzino Flushing Nozzle

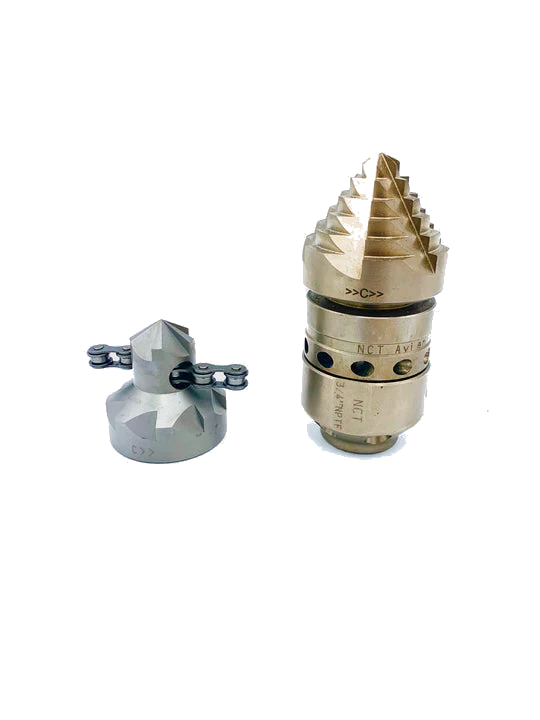

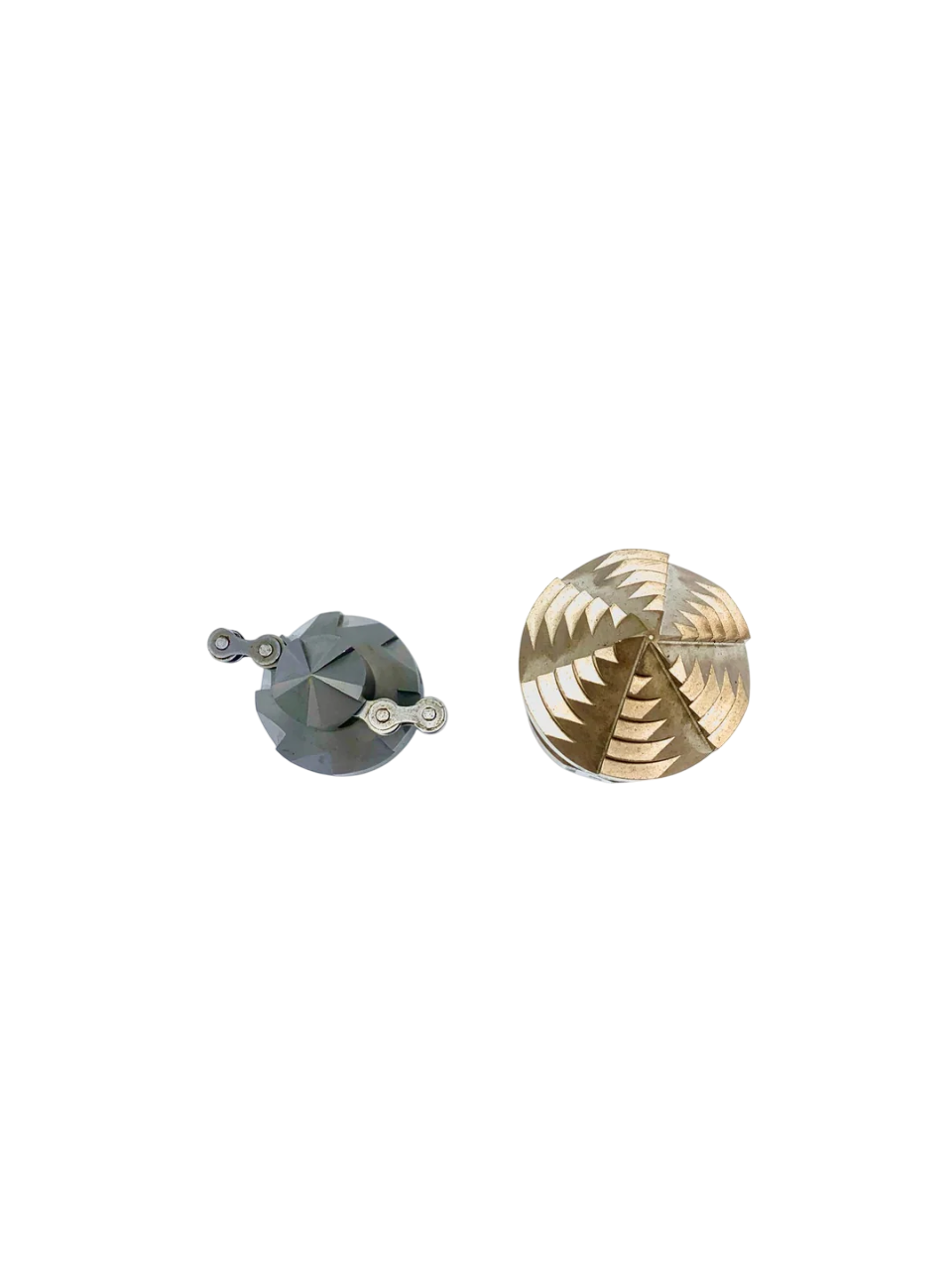

Turbine for Superior Drive and Thrust

Comes with Rotating Chain, Drilling Heads & Additional Chain

• 12-80 GPM, up to 4,000 PSI
• 3 rear jets @ 90° on Rotation for all nozzles
• 1/2" good for 3" - 4" pipes - weight 1.1 lb
• 3 or 6 rear jets @ 25° on 1/2"
• 3/4" good for 4"-8" pipes - weight 2.2 lb
• 4 rear jets at 20° on 3/4"
• Comes with case
• Easy and fast changeable chain retainers
• Carbide drilling head available

Carbide head can be used instead of steel drilling head for more aggressive drilling in pipe.

*** Please note in comments during checkout what PSI and GPM you require ***

Turbine Cutting Nozzle Specifications

Turbine for Superior Drive and Thrust

Features:

• 10-25 GPM, up to 4,000 PSI
• 3 rear jets @ 90° on Rotation for all nozzles
• Comes with case
• Easy and fast changeable chain retainers

Turbine Cutting Nozzle Specifications

Turbine for Superior Drive and Thrust

Features:

• 10-25 GPM, up to 4,000 PSI
• 3 rear jets @ 90° on Rotation for all nozzles
• Comes with case
• Comes with stainless steel drilling head; Carbide drilling head available

Carbide head can be used instead of steel drilling head for more aggressive drilling in pipe.

Turbine Cutting Nozzle Specifications

The premier penetrating nozzle made by NCT

The rotating front jet forms a high efficiency water cone with high impact capacity for blockages and obstructions making the nozzle much more aggressive than a conventional front jet penetrator.   This nozzle is ideal when jetting downstream from the entry point to the main for scale removal, grease, roots etc.

• High Impact Rotating Front Jet !
• 3 Ceramic rear jets @ 20°
• 10 - 25 GPM, up to 4,000 PSI

'Bora' Penetrator Nozzle Specifications

Video of Twister Penetrator Nozzle

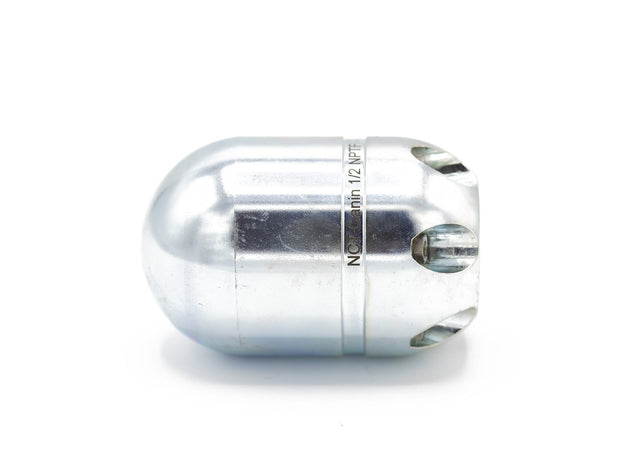

Low Angle Jets for High Thrust
The ultimate flushing power in larger pipe

• 10 - 25 GPM
• Up to 4,000 PSI
• 6 or 10 Rear Ceramic Jets at 5° & 10°

These high efficiency nozzles are manufactured in hardened alloy steel and are designed for high thrust. A Deviator set inside the nozzle maximizes flow efficiency reducing pressure drop.

Canin High Efficiency Nozzle Specifications

Video of Canin High Efficiency Nozzle
