Lining/Patching Consumables

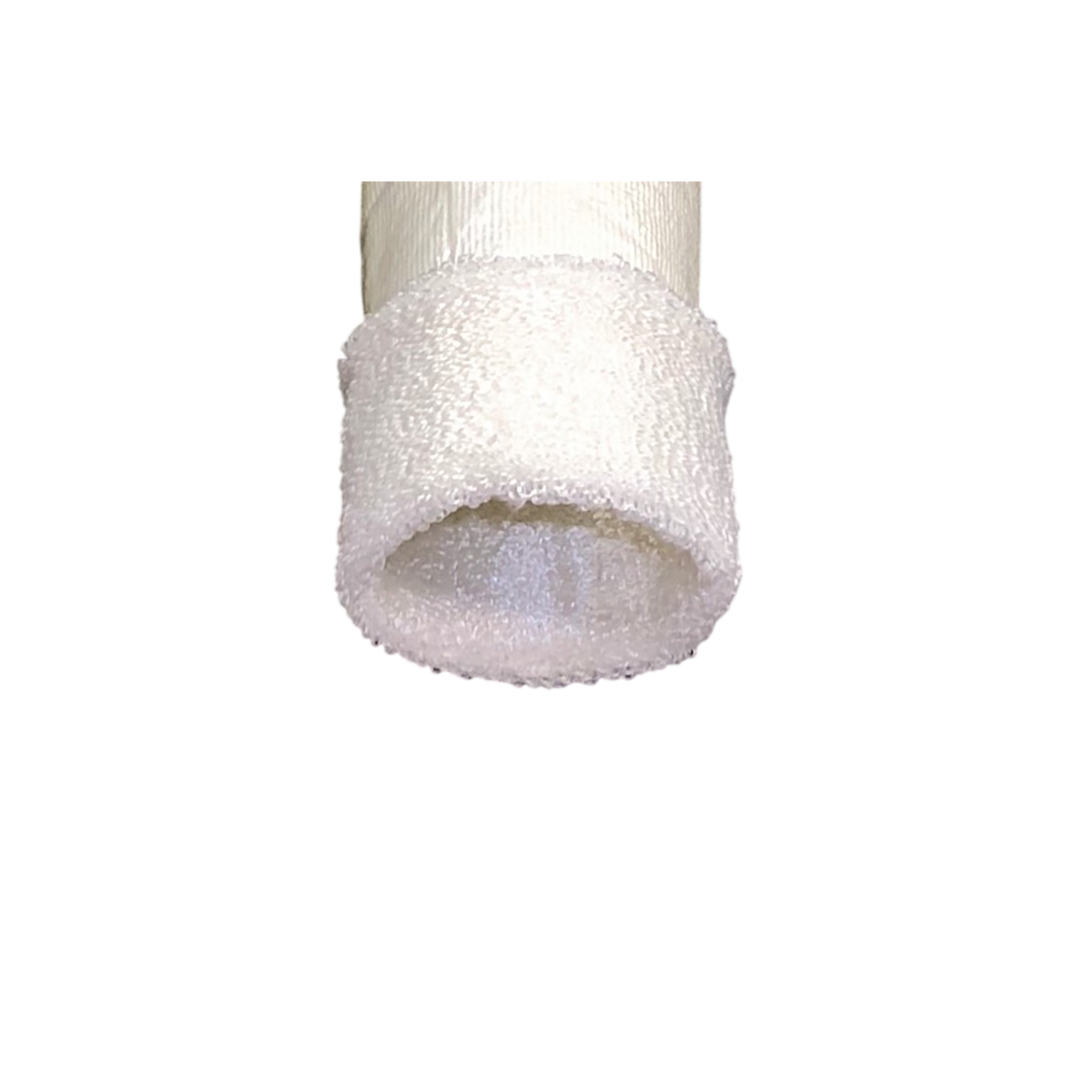

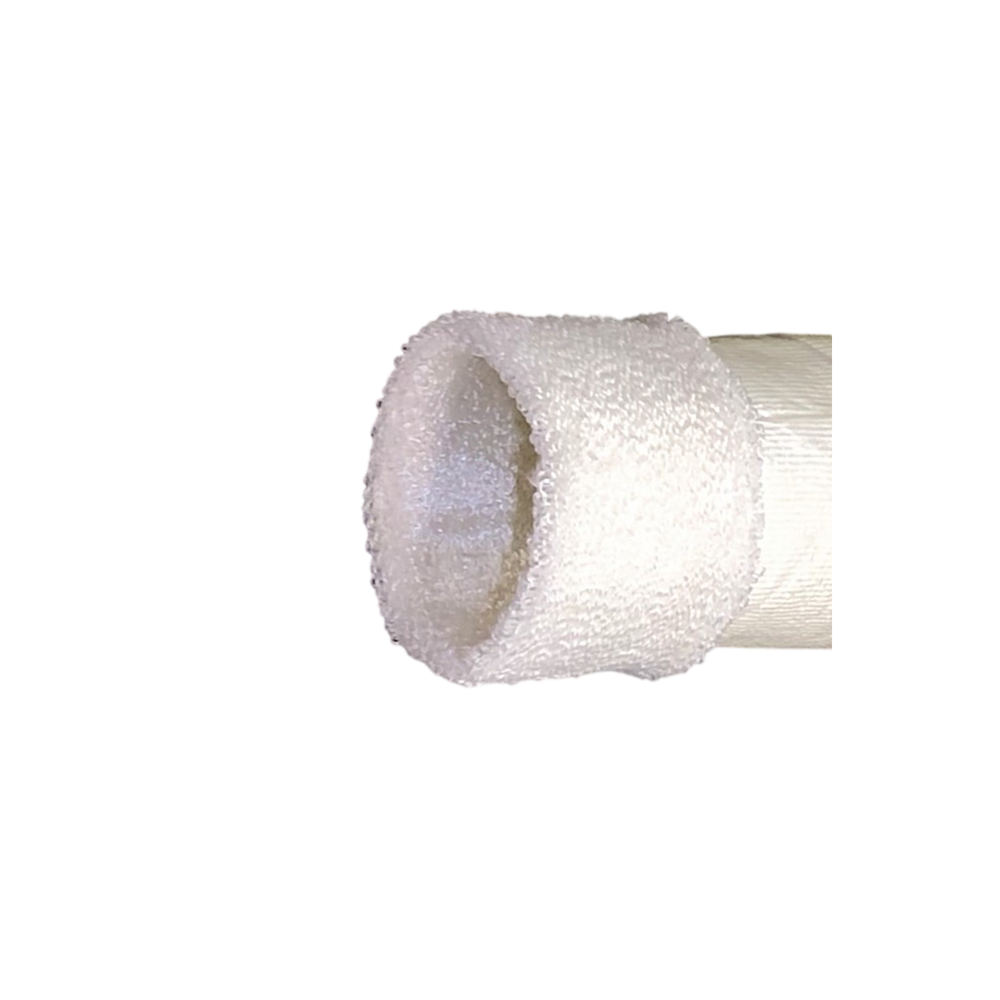

Thanks to a special knitted construction all BRAWOLINER_® are extremely flexible. This makes it the perfect solution for defective pipes containing multiple bends of up to 90° and up to two changes in diameter. These excellent product characteristics also impressed in the IKT (Institute for Underground Infrastructure) product test, in which BRAWOLINER_® was by far the top performer, multiple times.

Thanks to a special knitted construction all BRAWOLINER_® are extremely flexible. This makes it the perfect solution for defective pipes containing multiple bends of up to 90° and up to two changes in diameter. These excellent product characteristics also impressed in the IKT (Institute for Underground Infrastructure) product test, in which BRAWOLINER_® was by far the top performer, multiple times.

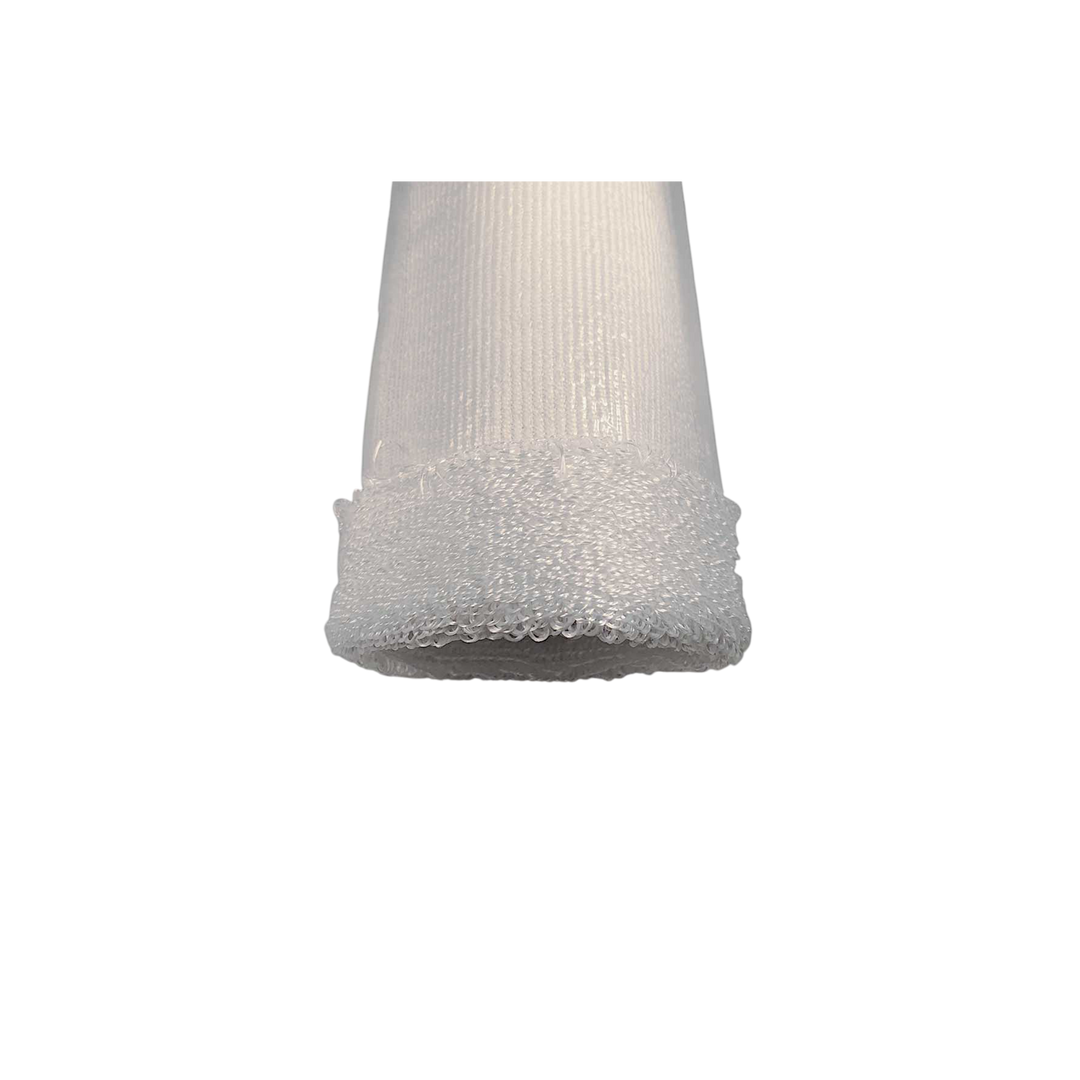

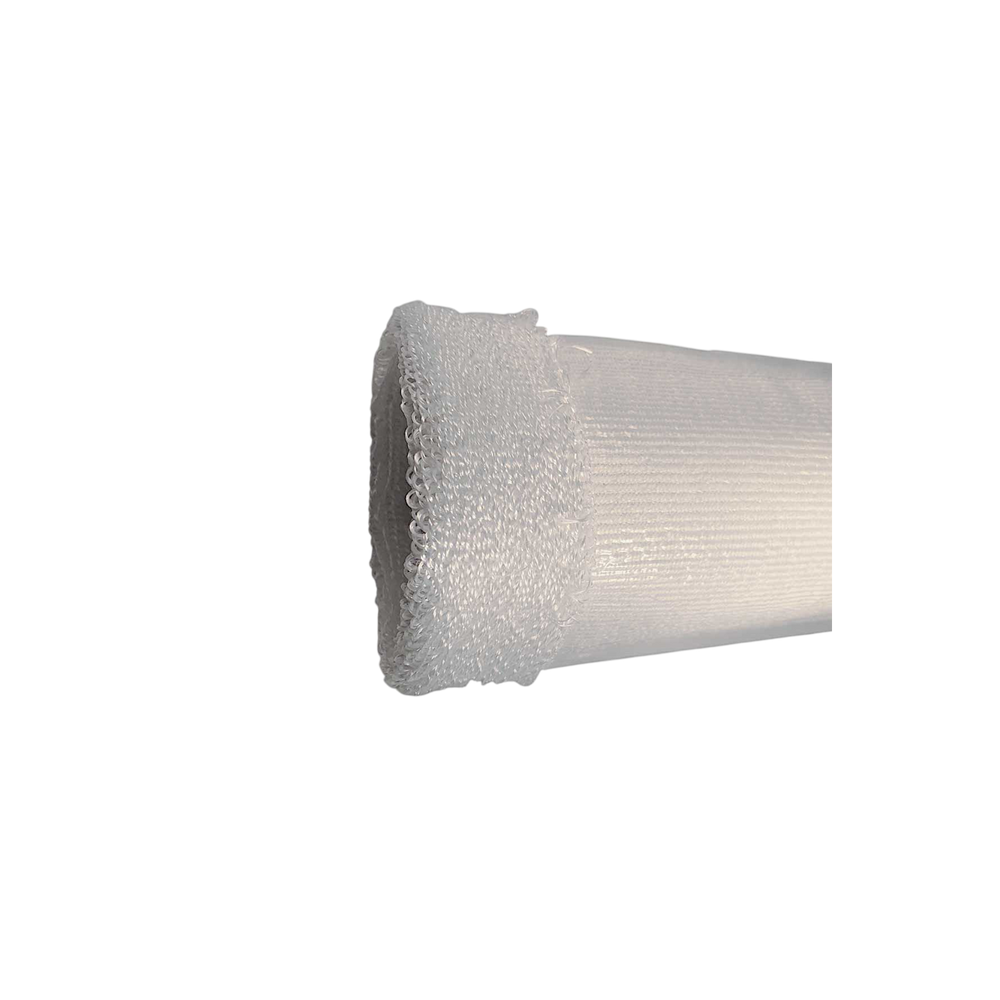

Fiberglass Transitional Liner with no Longitudinal Stretching for Inversion Lining.

2mm thickness, can be used with Epoxy or Silicate Resins.  Great for Ambient Curing or Heat Assisted Curing.  Can also be used for UV applications.

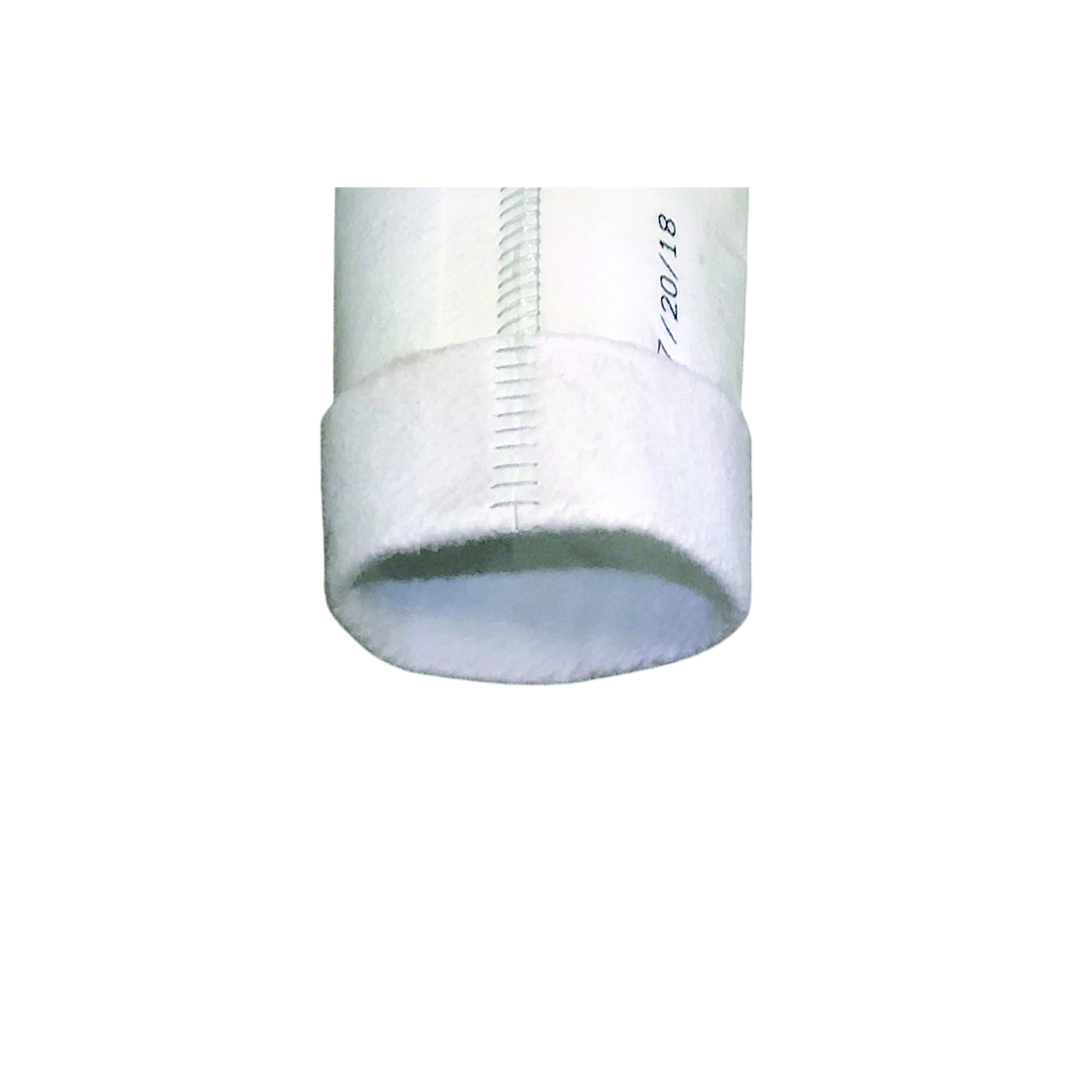

Non-woven, needle punched PE felt, uniquely bonded to an impermeable PU coating with special stitched seam. Highly flexible, single-layer liner, capable of navigating multiple bends up to 90°

Flexible scrim reinforced tube that is TPU extrusion coated and laminated. Liner is a non-woven, needle punched polyester fiber with a 100% continuous polyester filament scrim integrated into the fabric to limit longitudinal stretch. Tube forming and seam bonding achieved through a specially designed thermal welding and/or stitched sewn process-creating a superior enhanced performance liner.

Ultra-flexible, light-weight PE fabric with PVC coating with a high frequency welded overlap joint.  Ideal for lower pressure and heat curing up to 122°

Excellent choice for Lining via the "Tail Method".

*We still have some stock in Yellow, though we will be moving to a Clear version.  This will allow for easy wet-out using Tails.

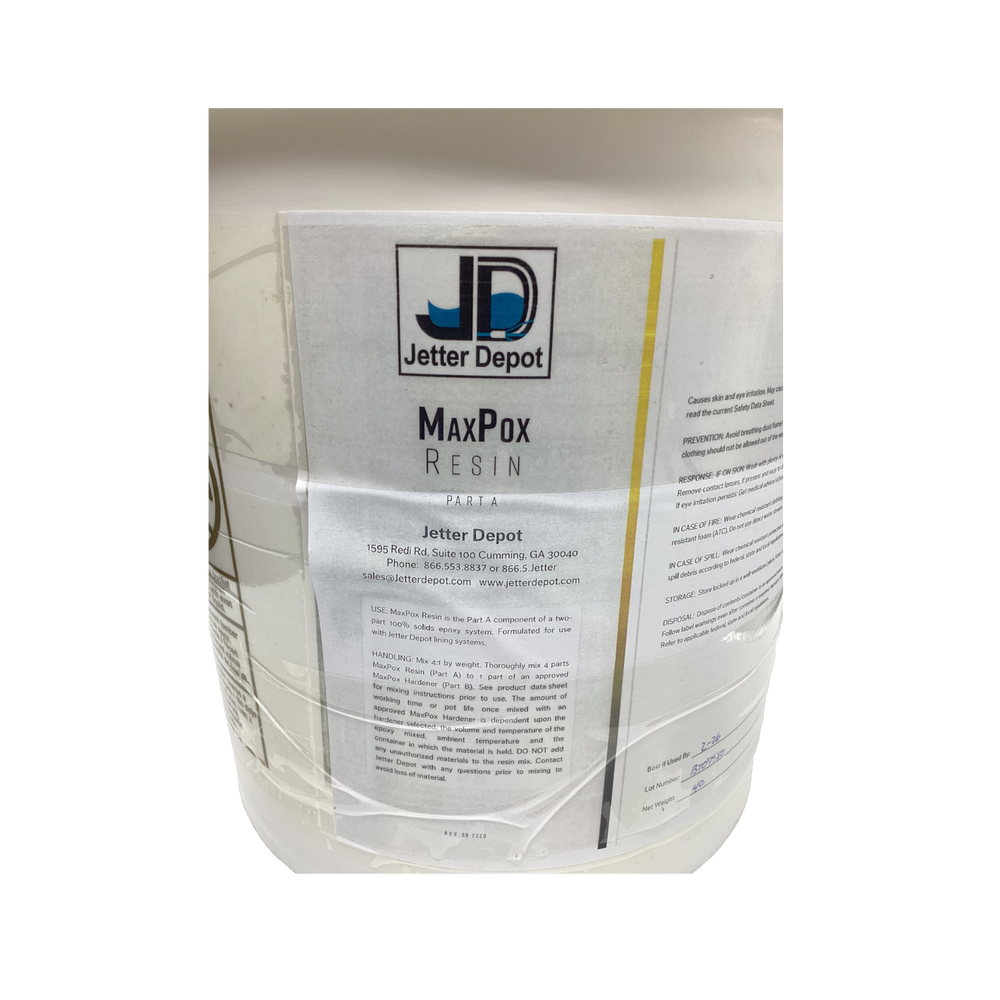

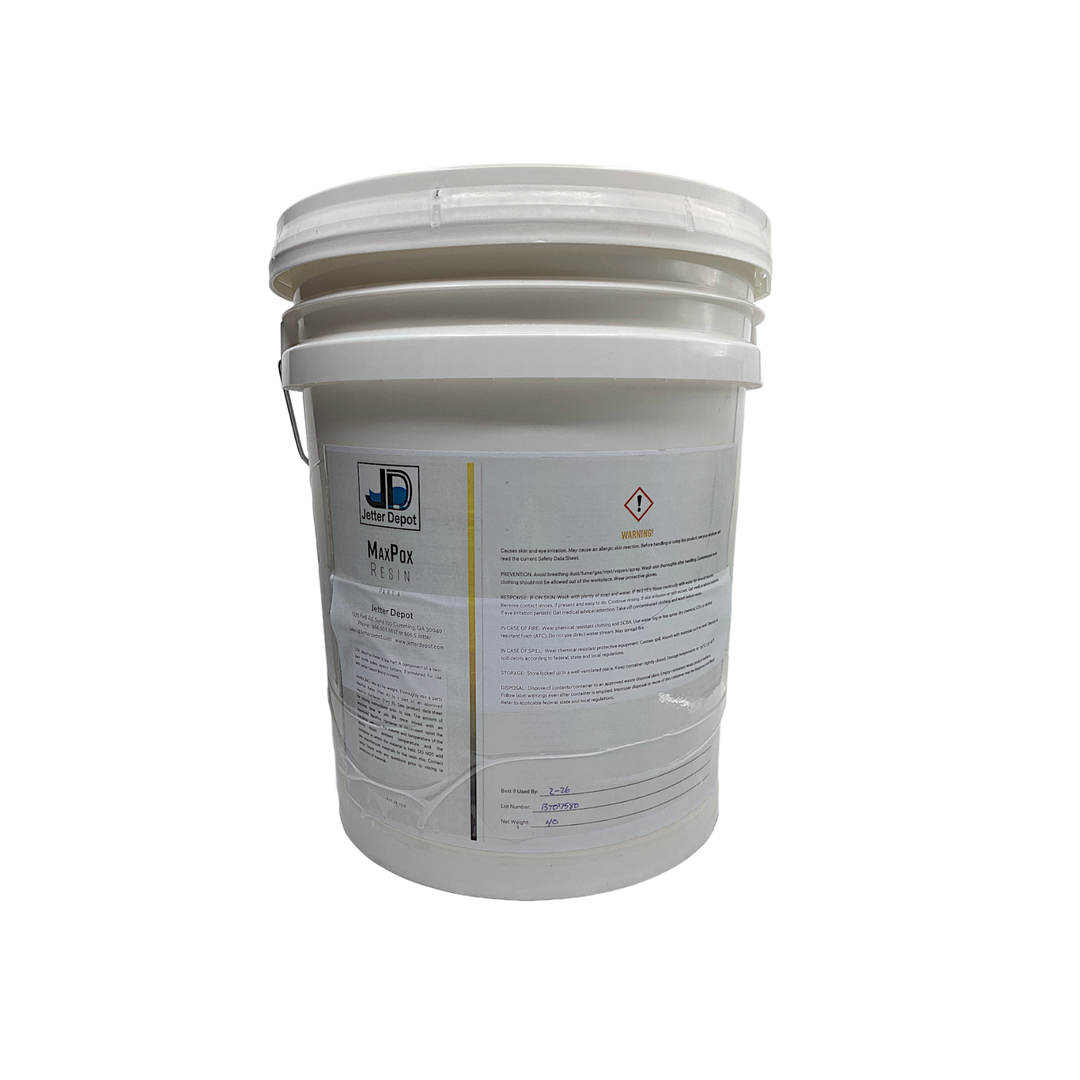

Two-part, 100% solids, styrene-free epoxies offering superior mechanical properties, chemical resistance and adhesion to pipe materials.  These resins are specially designed with excellent wet-out capability, low-odor and no VOC’s for quick and easy sewer service repairs.  May be used for ambient curing applications as well as heat curing.

*4:1 Mixing Ratio (Base : Hardener) - Most choose to purchase 4 of these 5 gallon buckets to pair with a 5 gallon Hardener (15, 30, or 60 Minute) bucket.  Totals a 200lbs Kit when ordered this way.

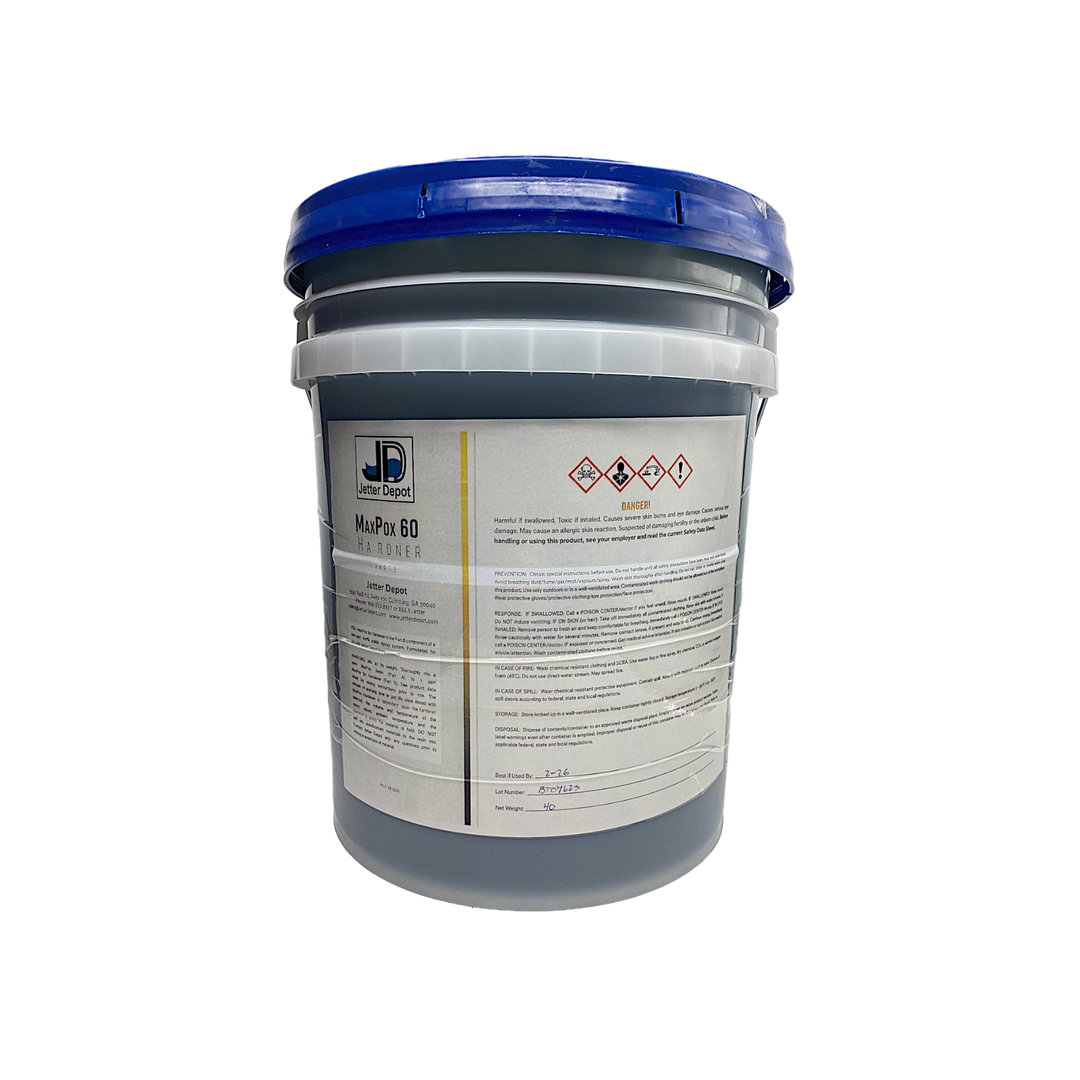

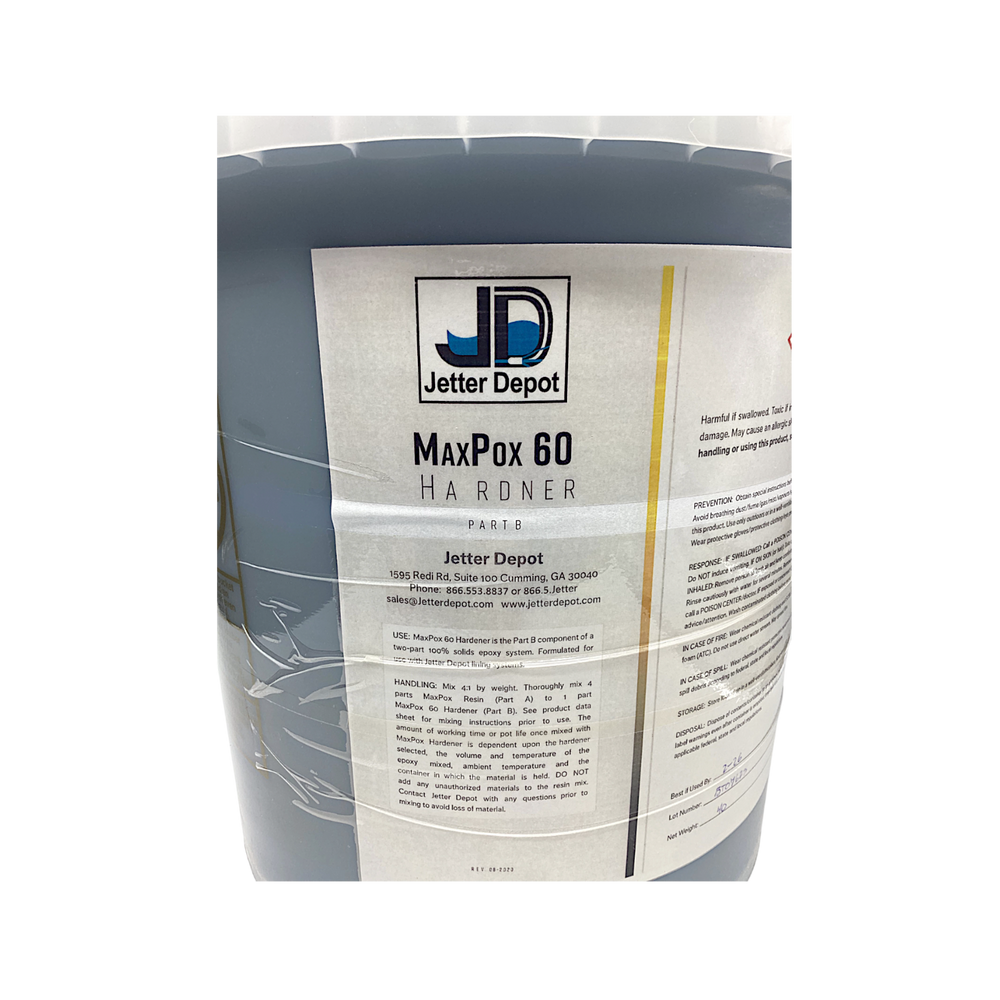

Two-part, 100% solids, styrene-free epoxies offering superior mechanical properties, chemical resistance and adhesion to pipe materials.  These resins are specially designed with excellent wet-out capability, low-odor and no VOC’s for quick and easy sewer service repairs.  May be used for ambient curing applications as well as heat curing.

*4:1 Mixing Ratio (Base : Hardener) - Most choose to purchase four 5 gallon buckets of Base Resin to pair with one of these 5 gallon Hardener (15, 30, or 60 Minute) buckets.  Totals a 200lbs Kit when ordered this way.

**Curing Time depends largely on temperature and method of Curing.  Call our Staff for further information and recommendations.

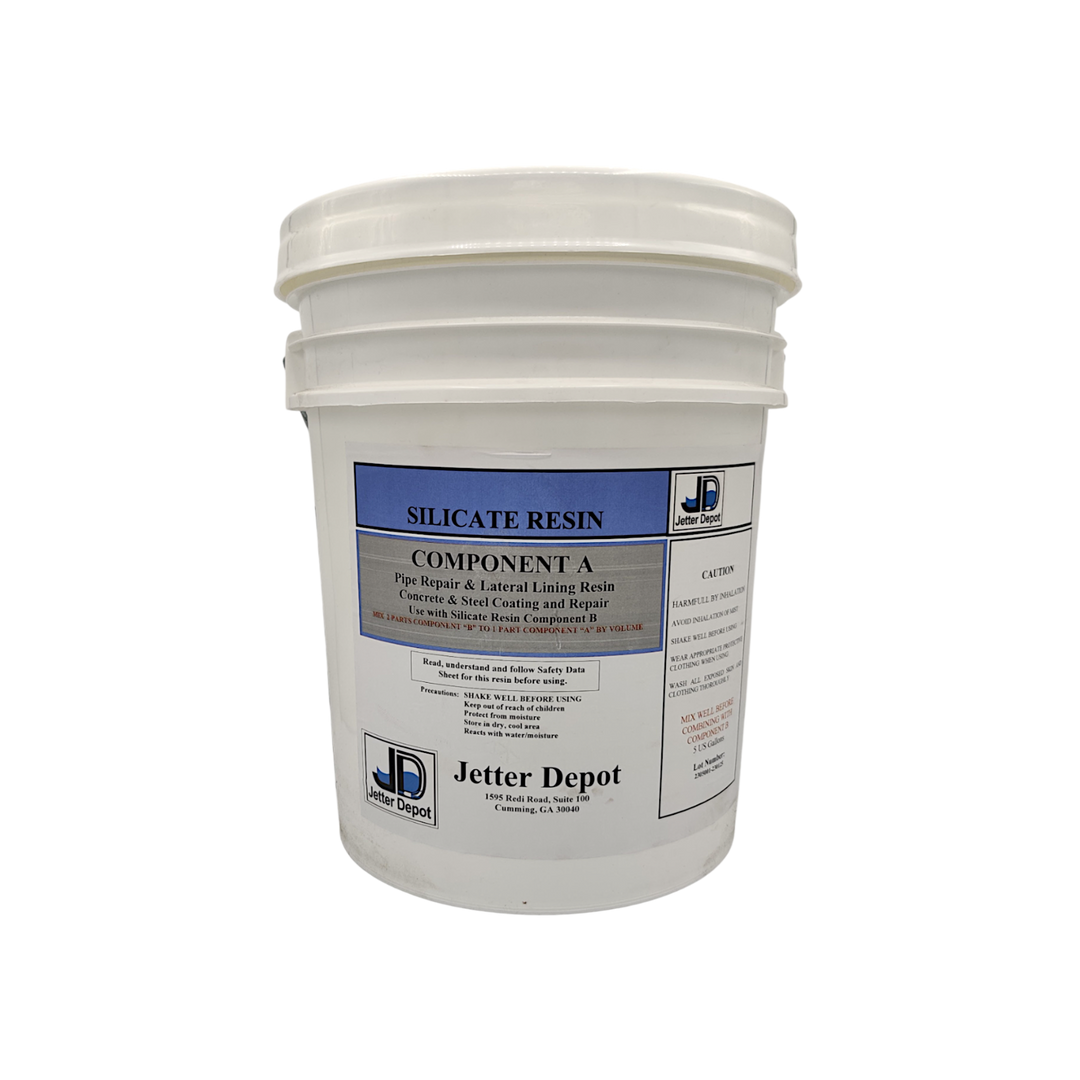

Sold in 3 five-gallon bucket Kits:
• 15, 30 Minute Pot Life
• No VOC’s / User Friendly
• Mixed 2:1 by Volume

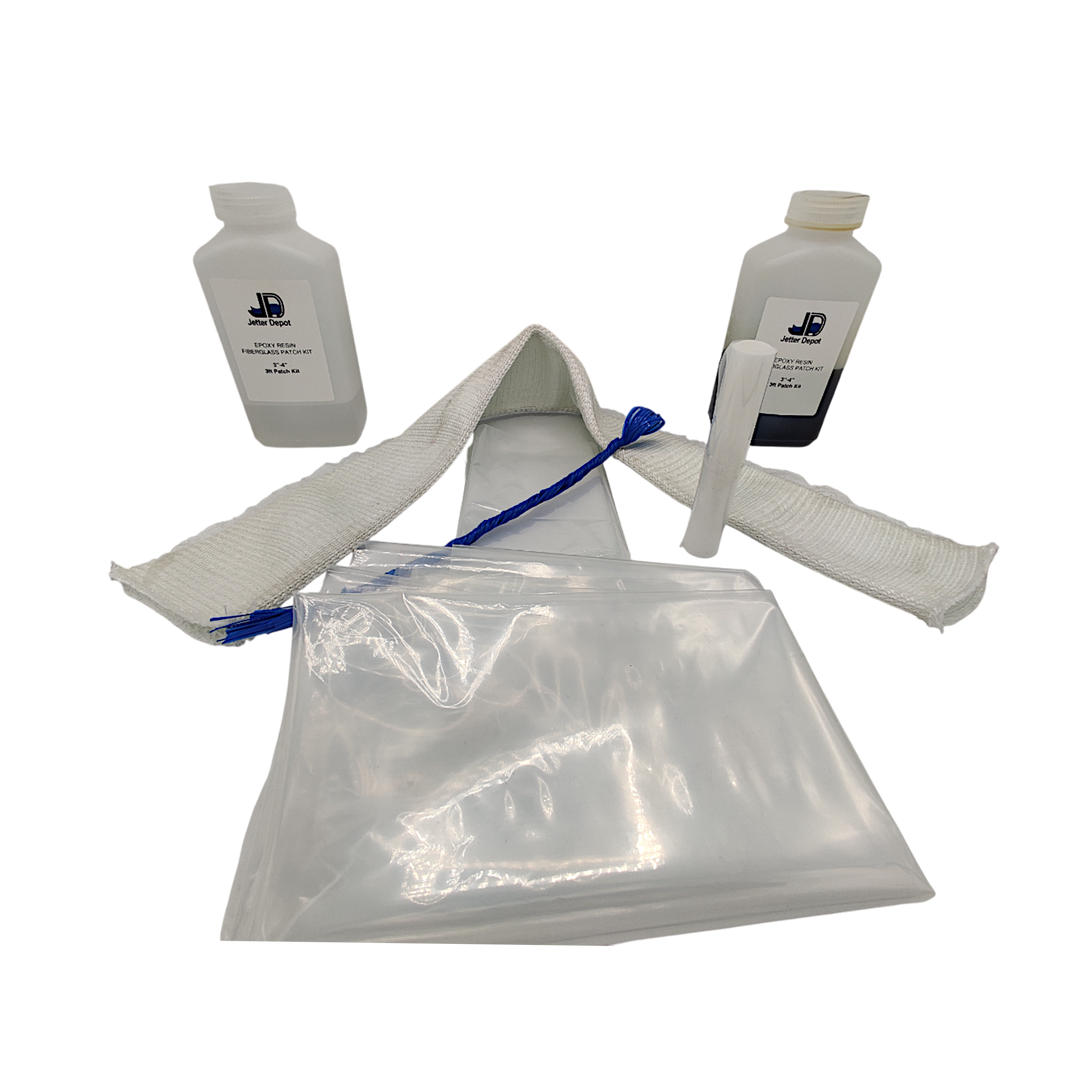

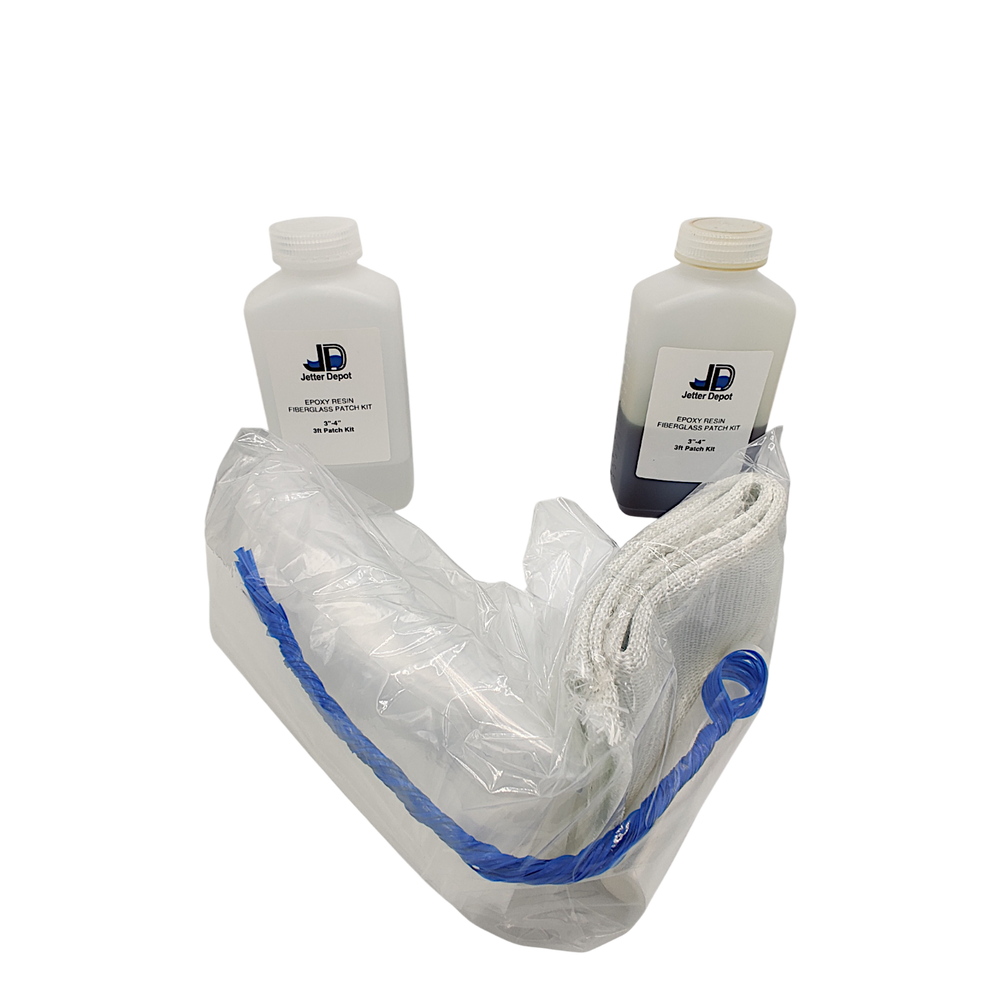

Great option for building your own Patch Kits in Bulk to save Money!

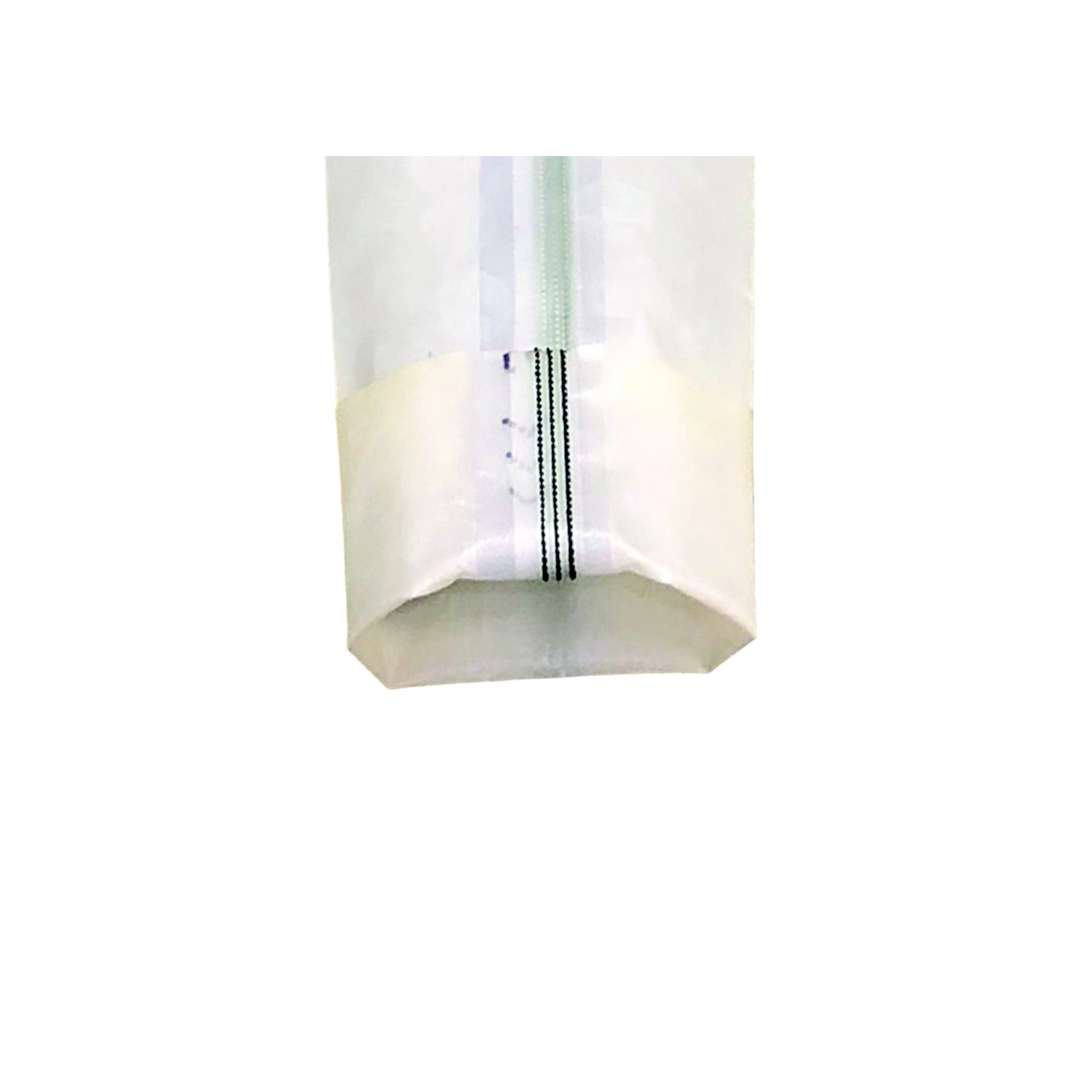

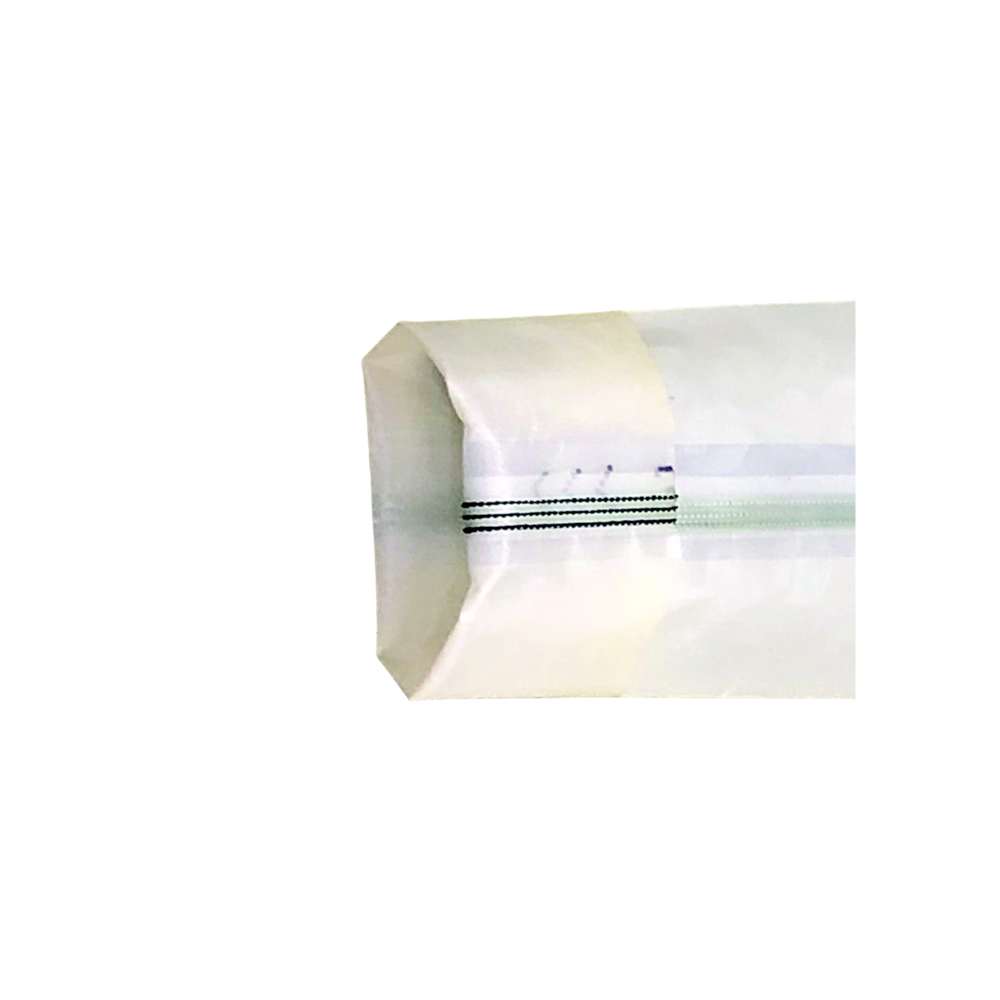

Calibration tube designed to provide excellent resistance against tearing and higher temperature resistance for heat cured installations up to 176°

Also a great option to use as Containment Sleeves for Patch Kits.  Call our Staff for more information.

*We still have some stock in Clear, though we will be moving to Orange.  Larger sizes available.
