1/4" Nozzles

WV WARTHOG® - 1/4" thread / 2-4" pipe /  works with 3-4k PSI

The WARTHOG® WV uses a rotating head, allowing the jets to deliver their full power against pipe interiors.

• The WARTHOG® front boring jet is 15° off-center.
• This creates a powerful front end that cuts through roots, sediments, grease and other blockages with ease.
• Top performance and dependability on ALL sizes.

The nozzle enz® KBRV is provided with 2 semi-radial jets directed forward in an angle of 45°. As a result, this nozzle must either be equipped with extra thrust jets or be mounted on a lance. The forward jets desintegrate most any residue and flush the debris ahead of the nozzle.

Applications

• To remove plastic deposits
• To clean heat exchangers
• Cleaning of fat deposits
• Flushing of the pipes from the house toward the main line

***Please leave a comment upon checkout noting the PSI and GPM required***

enz® nozzles with forward impact angle of approx. 45° on the pipe wall as well as a front jet (on request) and 3 retro-thrust jets cause a cork-screw-like advance through the clogged pipe. While the front nozzles loosens and the semi-radial nozzles disintegrate the residues, the thrust nozzles are driving the nozzle head forwards and simultaneously pushing the waste material backwards.

Applications

• Core-flushing of the steel pipes during hydraulic thrust-boring
• Cleaning of house connecting pipework from inside to the drain system
• Removal of ice in manholes

***Please leave a comment upon checkout noting the PSI and GPM required***

The semi-radial rotating enz®  nozzles with their 4 retroacting cutting-jets at an angle of approx. 45° cause simultaneously the cleaning procedure and the thrust for the forward move of the tool i.e. the jets combine rotation and thrust in one function resulting in a low water consumption. With sufficient water capacity, optional thrust jets can facilitate upward cleaning.

Applications

• Cleaning of pipes before TV-recordings
• To remove mineral deposits in pipes
• To remove roots up to Ø 0.2 inch

***Please leave a comment upon checkout noting the PSI and GPM required***

1/4" Balljet nozzles will have an extended lead time due to supply chain issues.

If you are unable to wait for these to become available please consider the alternative options linked below.

The enz® Bulldog® rotating nozzle has been designed for operation with recycling water and fresh water. The cleverly built sliding bearing allows the use of every kind of recycled water. An integrated oil-free braking system results in a low wear and tear operation and in controlled numbers of rotation. In this way a most efficient and economic pipe cleaning is achieved. The bore of the nozzle insert determines the admissible size of the dirt particles up to a maximum Ø 0.05 inch.

Transport and water costs are noticeably reduced.


Characteristics

• Easy to handle
• The tool is practically maintenance-free

 Applications

• To remove fat, roots and harder incrustations
• For operation with recycling water and fresh water

***Please leave a comment upon checkout noting the PSI and GPM required***

Nozzle Features a Rotating Jet for Total Cutting Performance.

Features:

• Rotating rear jet for flushing, debris removal and roots
• 4 - 12 GPM
• Up to 4,000 PSI
• Easily navigates traps and bends!
• Highly effective in 3" - 8" pipes
• Available in 1/4" and 3/8" sizes

***Please leave a comment upon checkout noting the PSI and GPM required***

Excellent Pulling and Flushing Power!!

• 4 - 9 GPM
• 6 or 8 Rear jets @ 15°
• Up to 4,000 PSI

The shape of the Arzino flushing nozzle allows easy navigation through tight elbows and provides easy retrieval from the pipe.  This Nozzle is ideal where high thrust is required in the pipe.  Comes 6 or 8 rear steel inserts set at a 15° angle for flushing power.  Also has optional front jet for Penetration.

Arzino Flushing Nozzle Specifications

Video of Arzino Flushing Nozzle

A DUAL PURPOSE NOZZLE AT A GREAT PRICE!

• Includes Front Jet AND Plug: 1 Front & 6 Rear - OR - 6 Rear Only @ 30°
• Optional Front Jet for Blockage Penetration
• 4 - 9 GPM
• up to 4,000 PSI

Small OD for Easy Bend Navigation!

EXCELLENT FLUSH/CLEAN AND PENETRATOR NOZZLE!

A great degreaser and de-icer nozzle

• 3F @ 10° and 6R jets @ 45°
• Change rear to 35° for extra pulling power
• 3 - 9 GPM
• Up to 4,000 PSI

A 45° angle is the default choice for this pattern. However, when faced with a longer run a 35° angle will provide extra pulling power. Pattern: 3 forward jets @ 10° and 6 rear jets @ 45° Please specify if 35° is needed.

CAN BE CUSTOM DRILLED FOR ANY PRESSURE OR FLOW

Maximum Cleaning Action from 90° Side Jets with 45° for Flushing / Pulling.

• 2 side jets @ 90° & 2 rear jets @ 45°
• 3 - 9 GPM, up to 4,000 PSI

CUSTOM DRILLED FOR ANY PRESSURE OR FLOW

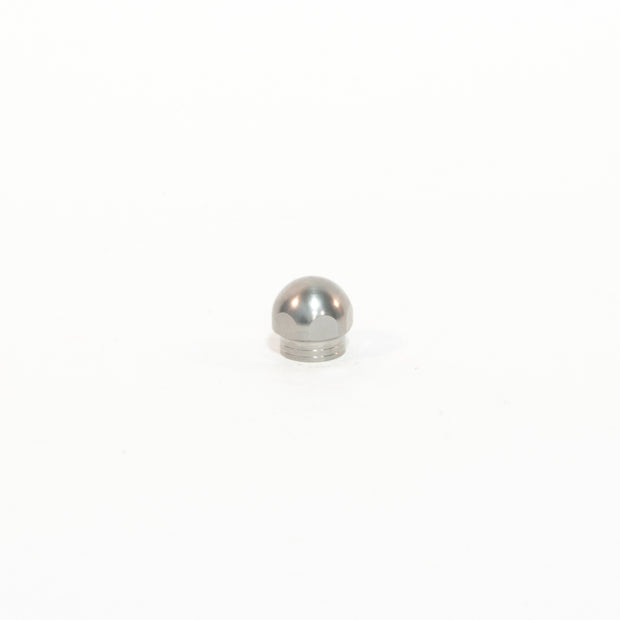

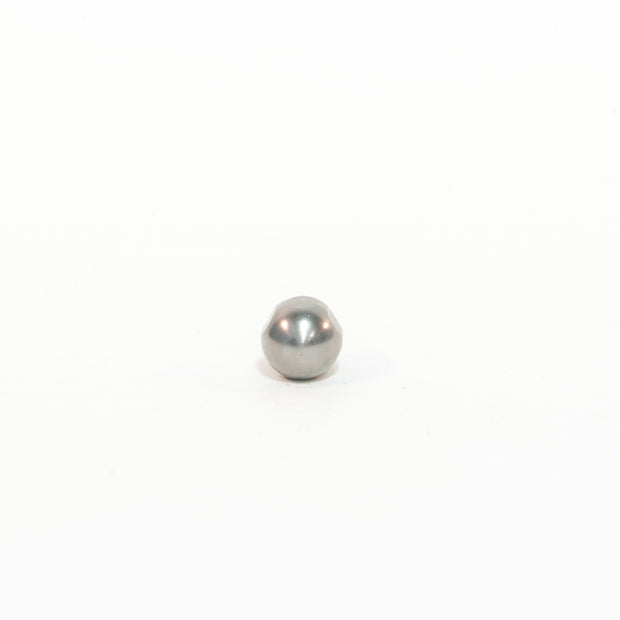

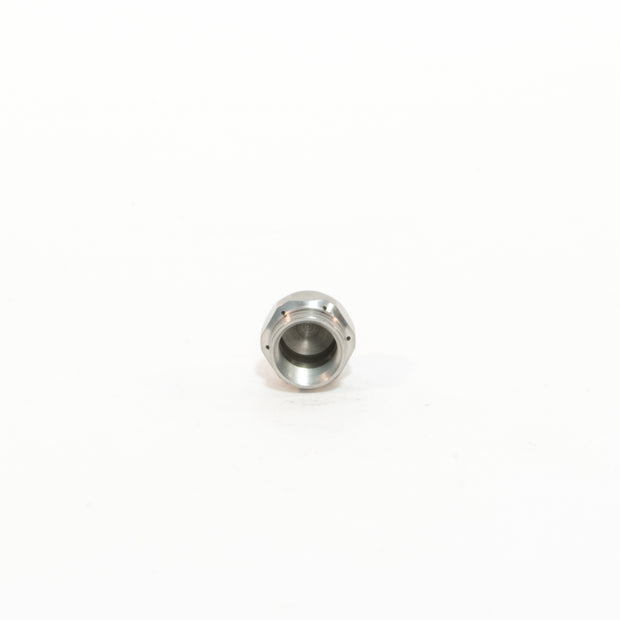

Superior Flushing Power

A pristine round hex design.
Jet pattern: 6 rear jets @ 20°

• 3 - 9 GPM
• Up to 4,000 PSI

CAN BE CUSTOM DRILLED FOR ANY PRESSURE OR FLOW

Superior Flushing Power

A pristine round hex design.
Jet pattern: 6 rear jets @ 20°

• 3 - 9 GPM
• Up to 4,000 PSI

CAN BE CUSTOM DRILLED FOR ANY PRESSURE OR FLOW

This Nozzle is an excellent choice when looking for full forward penetration. It has 'NO' rear jets which allows for maximum penetrating power.

Advantages are Control direction and speed of nozzle, pushes material towards the main sewer line

• 6 Front jets at 10° and 1 Front jet at 0°
• Stainless steel construction
• 3-9 GPM
• Up to 4,000 PSI

A dual-angle nozzle combining thrust and flushing power

Pattern: 3 rear jets @ 45° & 3 rear jets @ 25°

• 3 - 9 GPM
• Up to 4,000 PSI

CAN BE CUSTOM DRILLED FOR ANY PRESSURE OR FLOW

A dual-angle nozzle combining thrust and flushing power

Pattern: 1 forward, 3 rear jets @ 45° & 3 rear jets @ 25°

• 3 - 9 GPM
• Up to 4,000 PSI

CAN BE CUSTOM DRILLED FOR ANY PRESSURE OR FLOW

Multiple front jets for penetrating total blockages, grease obstructions, etc.

• 3F @ 20° - 1F @ 0° steel inserts
• 6 or 3 Rear Jets @ 20°
• 4 - 9 GPM
• Up to 4,000 PSI

Raut Chisel Point Nozzle Specifications

Video of Raut Chisel Point Nozzle

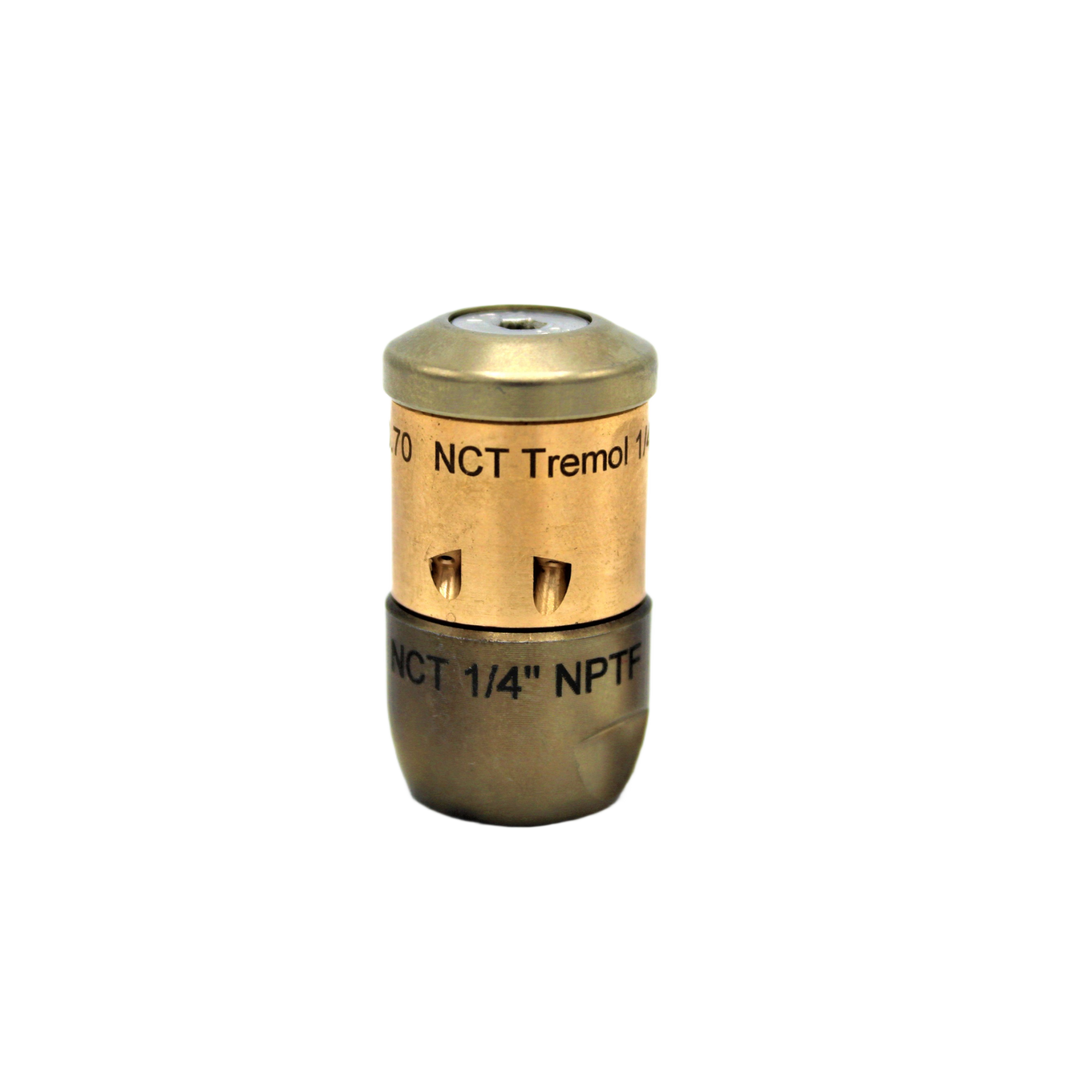

The "Tremol" series of spinner nozzles are very effective tools for cleaning inside of pipes. The rotating element and jets scour the surface of the pipe loosening hard debris. Spinner nozzles are great for descaling and emulsifying grease.

• 4 Jets on spin barrel @ 45°
• 6 or 3 Rear jets @ 20°
• 4-9 GPM, up to 4,000 PSI
• Cleans the entire inside pipe wall

Tremol Nozzle Specifications

Video of Tremol Spinner Nozzle

VIBRATION AND BOUNCE BREAK UP DEPOSITS
Displaces the most resistant deposits in 4"-24" pipes

Intended for use in plastic (HDPE, PVC etc.) and cast iron pipes only.

• Removes mineral deposits, concrete, building materials, etc
• Lightweight vibrating nozzle with ceramic inserts
• Head and rear body shape avoids nozzle getting stuck on joints
• 4 - 9 GPM

Vibro 'Jiggler' Nozzle Specifications

Video of the Vibro Jiggler Nozzle

Great for Small Pipe!
Drop Head on Swivel for Easy Navigating!
Very effective design for navigating P-traps and bends.

Available in Brass or Stainless Steel

• 3R Jets at 45°
• Both nozzles set for 2.1 GPM at 1,500 PSI

Excellent Quality Lateral Kit for Small Line Cleaning
Spinner for Grease - Chisel for Penetration - Flusher Nozzle

Kit includes:

• Raut - Chisel Point Nozzle - 4F / 3 Rear Jets
• Tremol - Spinner Nozzle - 4 Rear on Spin Barrel
• Arzino - Flushing Nozzle - 1F / 6 Rear Jets

4-9 GPM, Up to 4,000 PSI

All nozzles are 1/4"

CUSTOM DRILLED FOR ANY PRESSURE OR FLOW
3-9 GPM, up to 4,000 PSI

Kit includes:

• Thruster/Flusher - 1F - 3R @ 25°
• Cleaner - 1F - 6R @ 45°
• Penetrator - 3F @ 10° - 6R @ 45°
• Spinner for Grease - (4) 2 @ 90° / 2 @ 45°
• Case and tip cleaner included
• Excellent value kits for all jetting applications

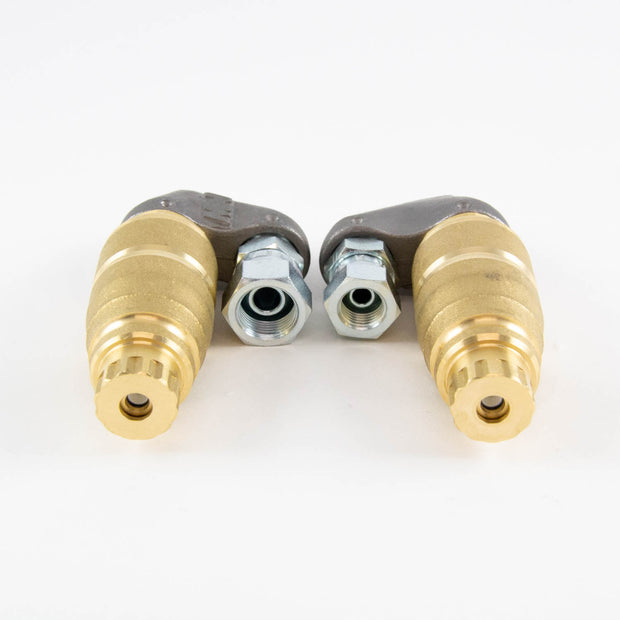

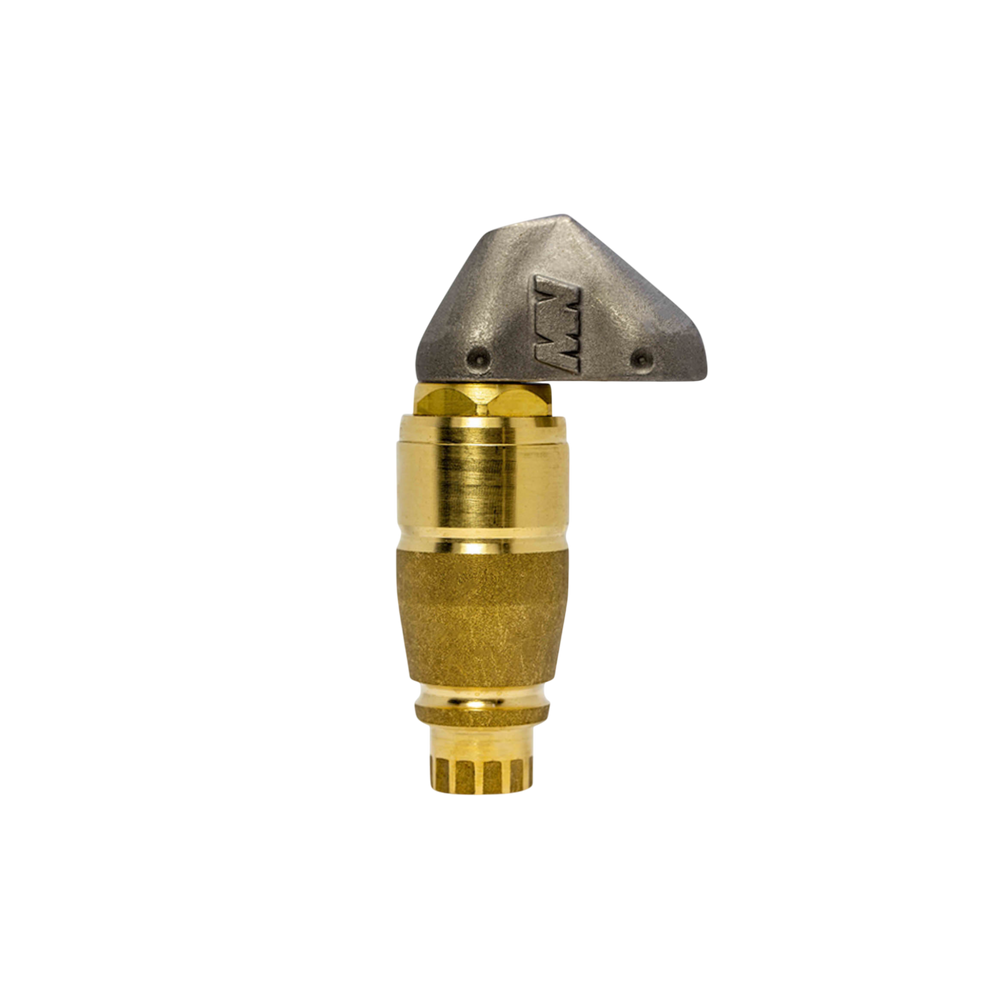

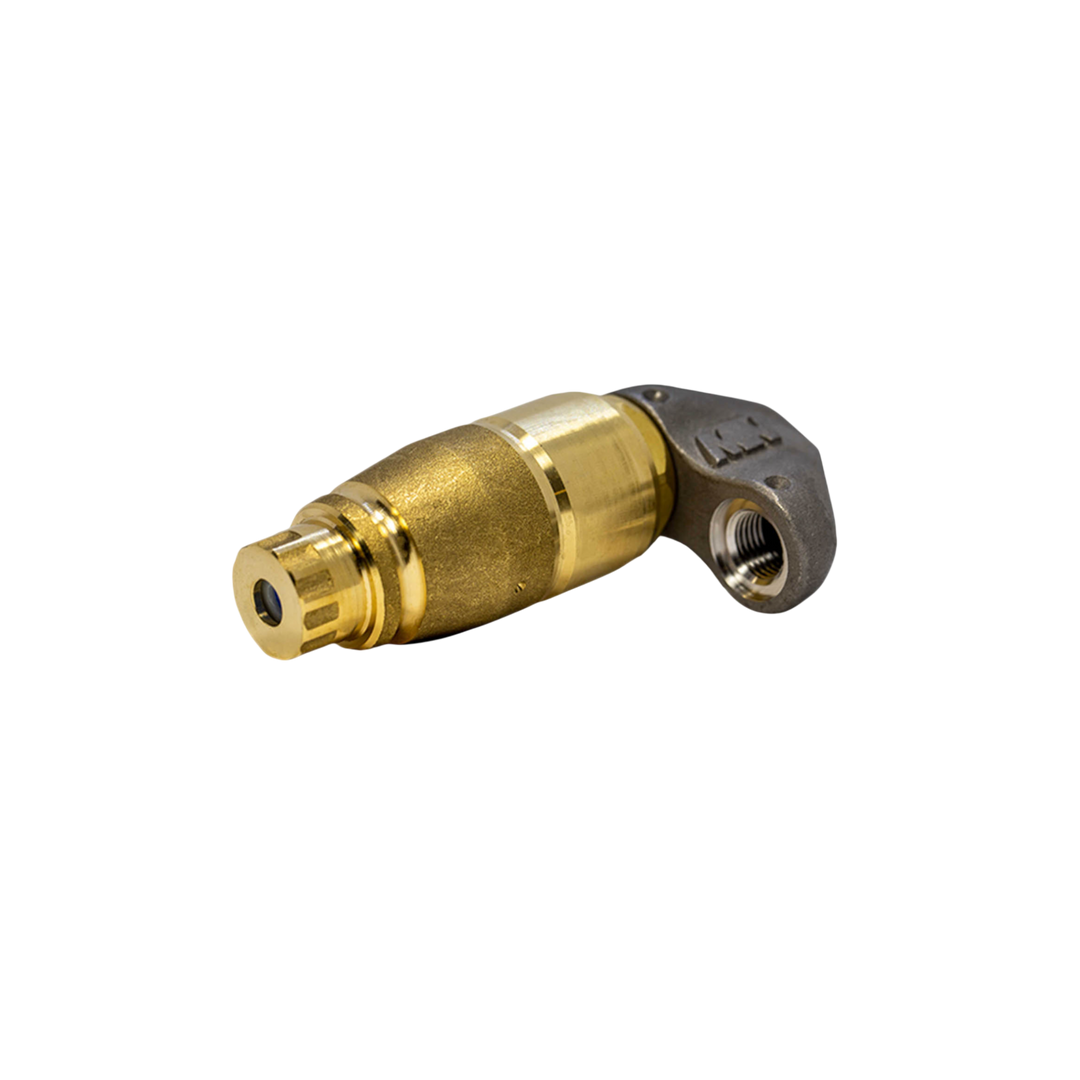

The Root Ranger Nozzle is possibly the best root cutting nozzle available today, especially for lower GPM Jetters. It thoroughly cleans roots, grease and debris from a drain. The offset pressure bend and single jet design concentrates all the power of your jetter and aims it directly at the roots. The operator twists the hose, turning the tool to scour 360 deg. of the pipe wall.

Available with a Whip hose that allows to the connection of a 3/8" jetter hose.

Hardened Stainless Steel
All Ceramic Inserts
PERFORMANCE AND DURABILITY!

• 2-8 GPM
• up to 4,000 PSI
• 30° High angle jets for effective cleaning of pipe walls
• A Deviator set inside the nozzle maximizes flow efficiency reducing pressure drop

Best choice in frequent mainline cleaning

The Reaper is available in 2 different flow rates, all at pressure up to 4000 PSI:

1/4" inlet: sizes 5.5-6 GPM, 7-8 gpm (ideal for 2-4" pipes)

The front rotating jet uses the same technology found in the Ripsaw and Aqua-Rocket rotating nozzles for superior performance and durability. Reaper's four rear jets create a 20-degree angle for maximum thrusting power capable of pulling several hundred feet of jetting hose.

The Reaper™ Rotating Jetting Nozzle is designed and engineered specifically for jetting applications.

SUPERIOR PERFORMANCE - The Reaper's rotating front jet is a 0-degree, straight water stream that blasts at up to 4000 PSI while rotating at an optimal speed to form a 30-degree cone of coverage. Optimized stream quality results in greater impingement, allowing you to use one tool for various applications (cutting, cleaning, removal, etc.). Reaper's four rear jets create a 20-degree angle for maximum thrusting and pulling power.

DURABLE & RELIABLE - These heavy-duty, high impact nozzles are constructed with stainless steel housing and tungsten carbide wear surfaces to withstand harsh environments and provide longer life than ceramic nozzles.

EFFICIENCY - Greater impingement allows you to complete jobs faster and use smaller nozzle sizes while getting the same or better performance as nozzles with higher GPM flow rates.

SERVICEABILITY - Repair kits are available for extended life and lower overall operating costs.

High Performance Package - With Case!
4-8 GPM, up to 4,000 PSI
Limited Time Special - Excellent Value - Quality Nozzles!

• Tremol - Spinner Nozzle for Descaling and Grease etc.
• Arzino - Egg Style Flushing Nozzle

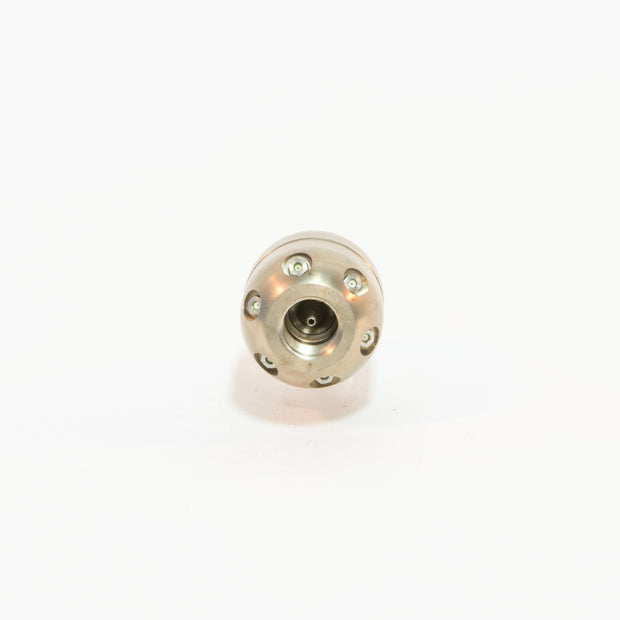

• Isonzo - The Best General Cleaning Nozzle
• Raut - Forward Penetration - Blockage Removal
• High performance 4 nozzle kit ALL with replaceable inserts
