Picote Equipment

*** Best Seller ***

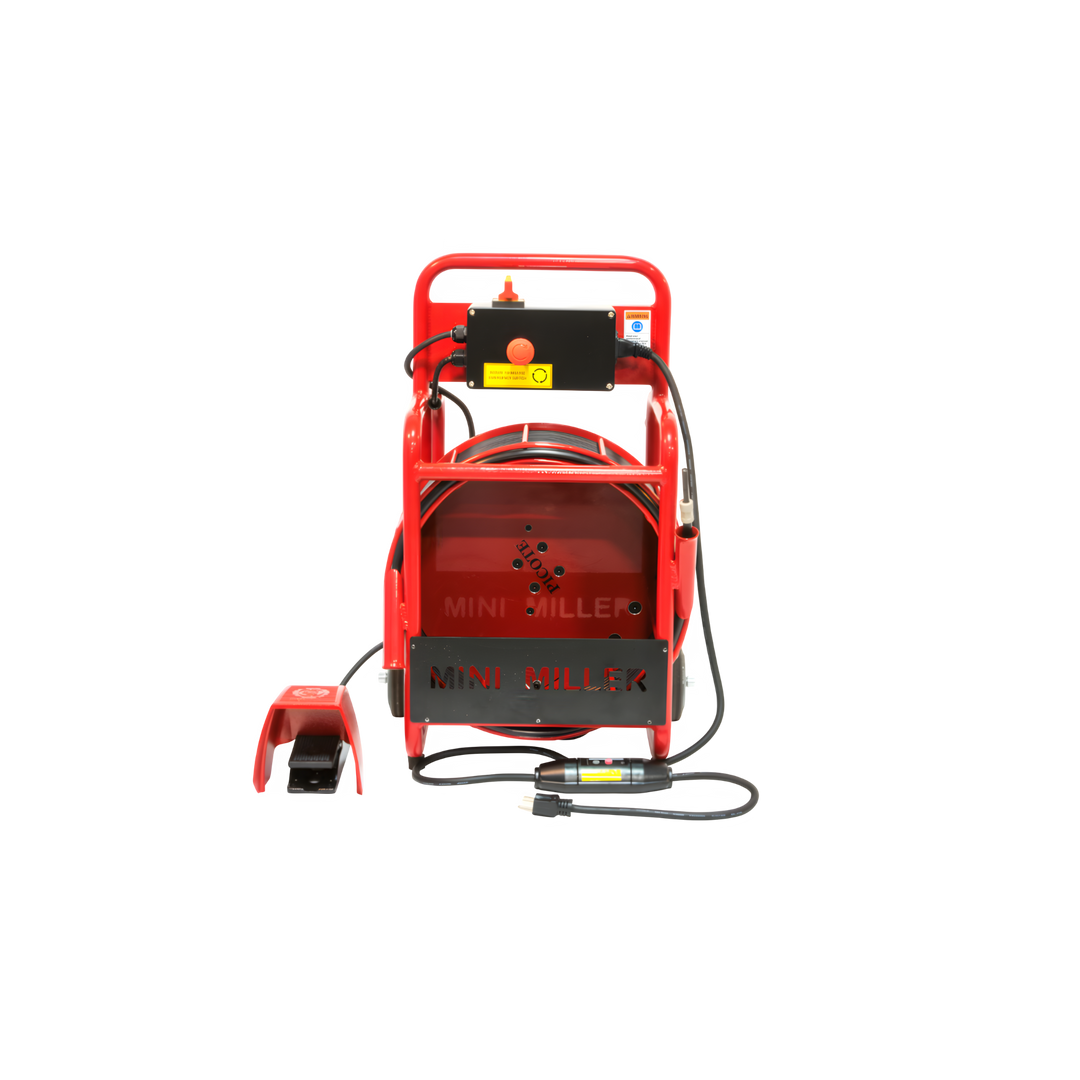

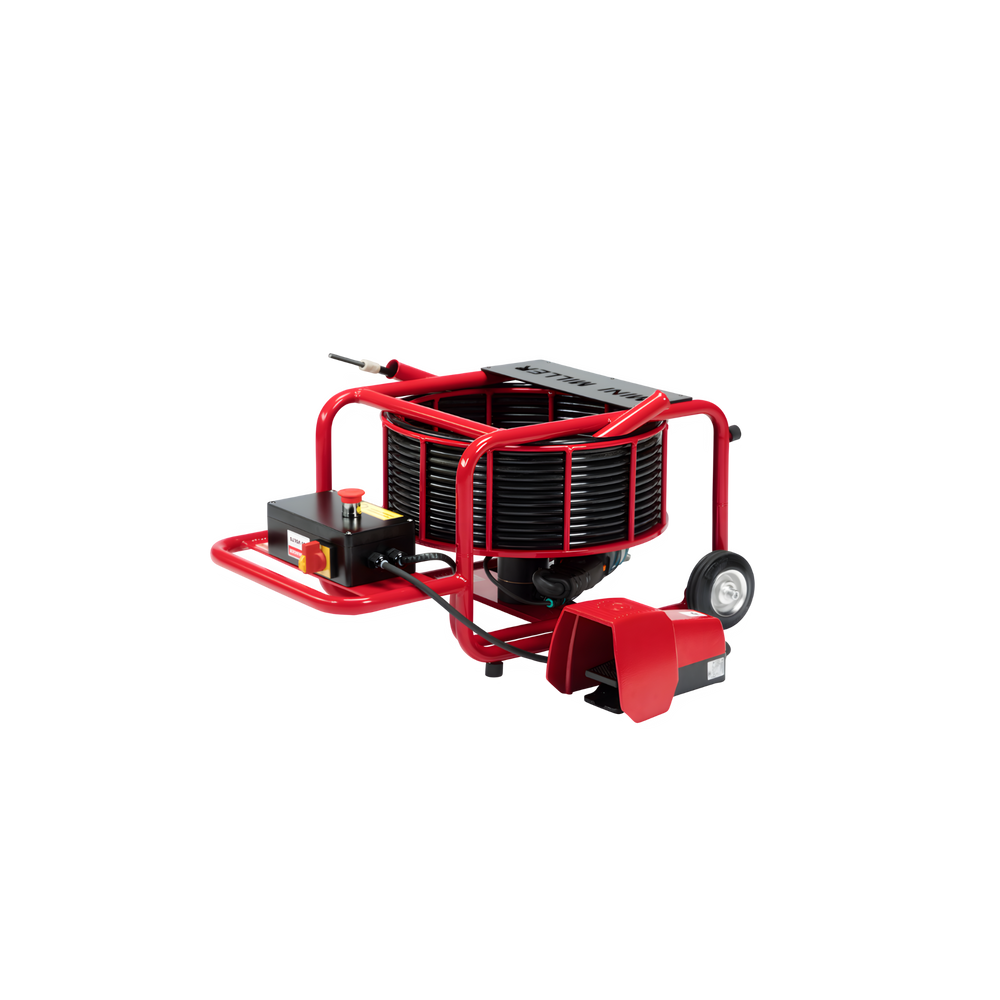

The most popular choice in small diameter pipe, the compact and convenient Mini Miller has 55' of cable with a 1/3" shaft and is suitable for cleaning 2" - 4" pipes. Weighs:
70lb, 600-2900rpm, 1200w output.

With 67' of 1/2" cable, the Super Midi is suitable for work in 3" - 8" lines.

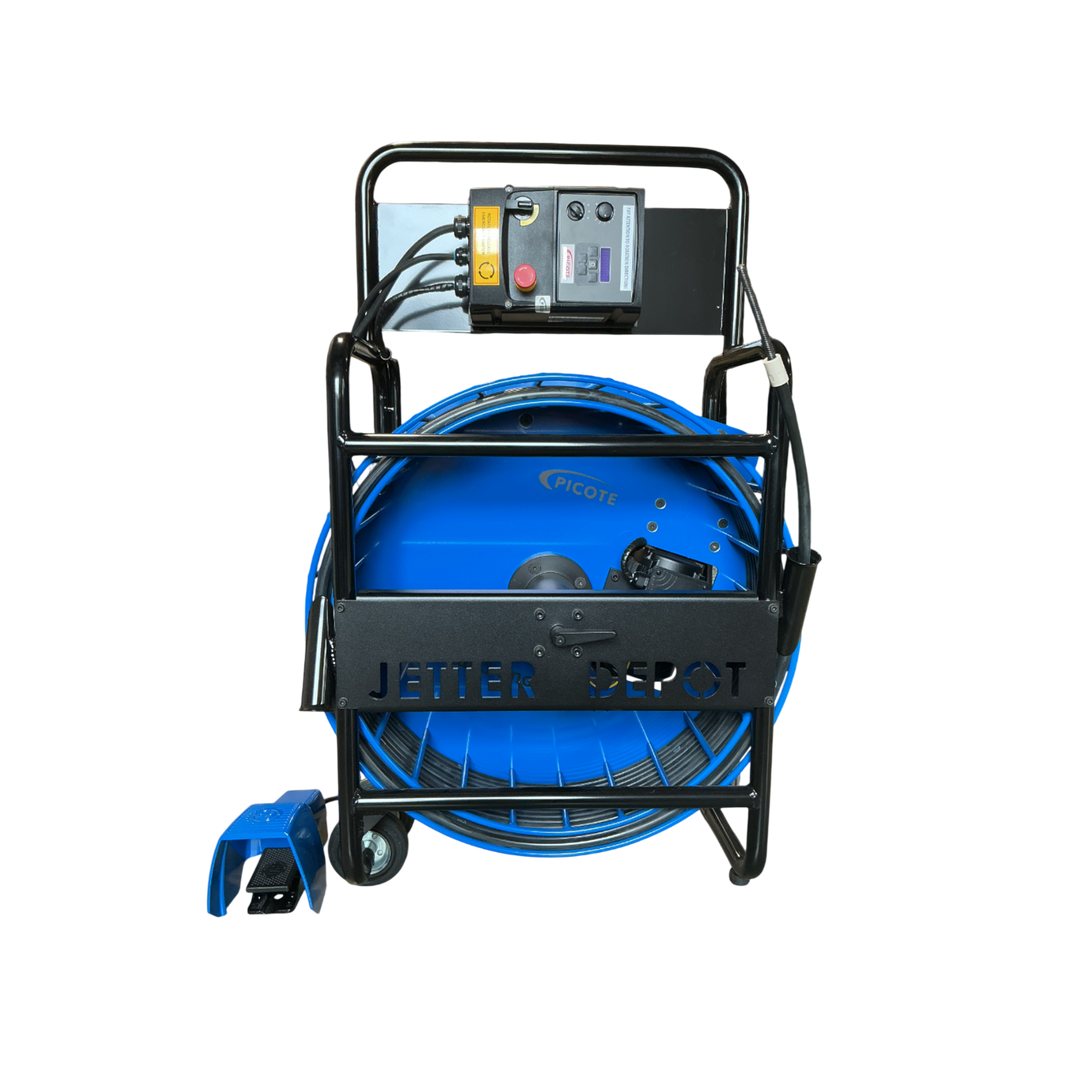

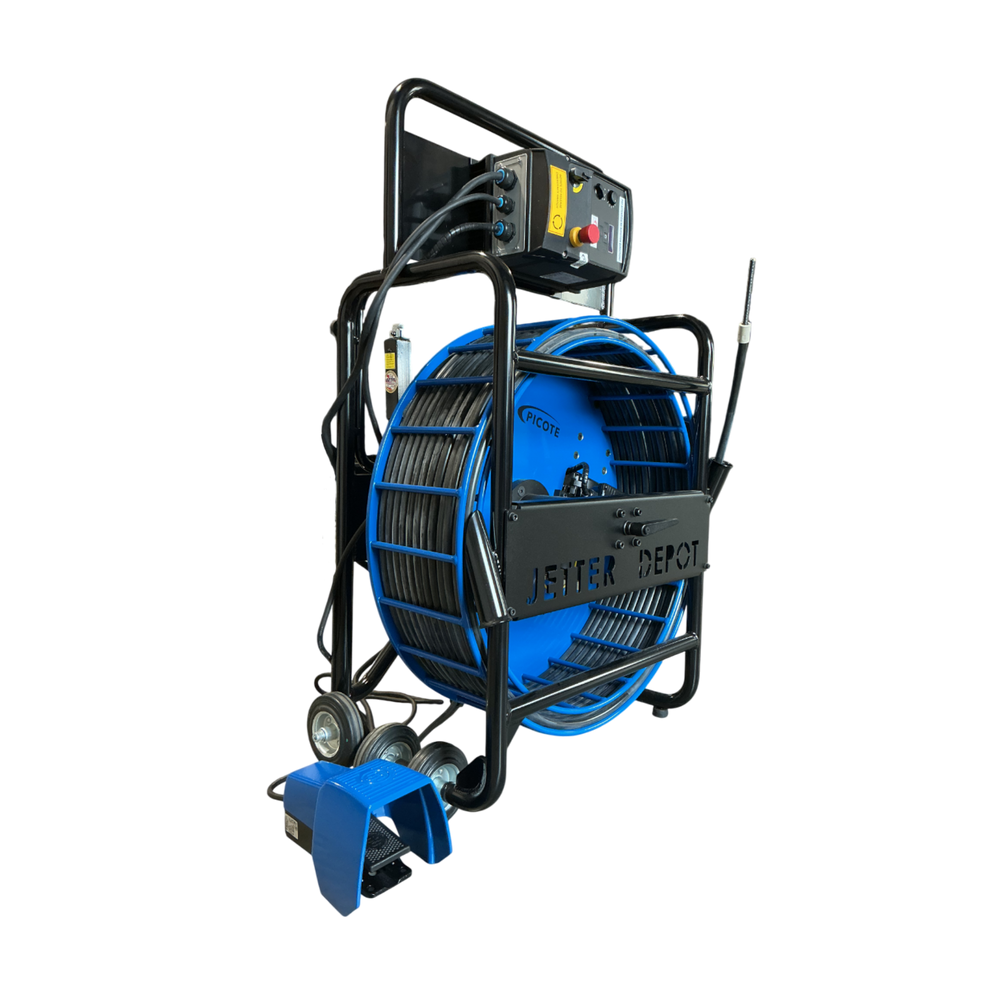

With 75' of 3/8" cable, the Midi Cleaner is suitable for work in 2"- 6" lines.

Both machines are capable of handling an extension cable of up to an additional 50', and have an electronic clutch.  They work with 110V @20amps.

The most popular model, the Maxi-Miller is an efficient powerhouse that features a high-performing electric motor delivering the most torque.   This unit features a safety clutch and includes an impressive 110' of 1/2" cable and is suitable for drain cleaning, pipe cutting or powering the Smart Cutter and Twisters inside 4" - 8" pipe.   An adapter for 1/3" shaft is available for 2" drains.   The Maxi Miller has a push rod and pull system and glides for maneuvering stairs and includes a locking system that keeps the shaft steady during transportation. Weighs 210lb, 1400rpm, 1130w output.



1/2" Shaft with Thick Outer Casing. Separate Control Box with 16ft cord. Requires a
30 Amp Non-GFI Generator/Outlet
High Speed Cleaning 3-10", Cutting 3-8" & Brush Coating 3-12" Range: 100ft. Max
Range: 132ft. Weight: 205lbs. 500-1475rpm. Can be extended 32ft

*The same great features of the Maxi Miller but with a removable control unit on a 16ft cord. Standard safety features include: protective outer shaft casing, operator presence foot control, electric safety clutch, internal GFI, and an E-stop.*

The Maxi Miller Power Plus is a new, powerful and efficient multi-use trenchless system from Picote. It allows the use of Picote’s unique tools in DN150-300 / 6”-12” sewers (DN70 & 100 / 3” & 4” in-side straight pipe). The Miller Power Plus System is designed for faster lateral rein-statements, even higher speed drain cleaning and more efficient collapsed liner removal. The Power Plus provides double the power compared to the regular Maxi Miller (3kw vs. 1.5kw).



Specifications:

Range: 59’ range of ¾” shaft. Can be extended an additional 36’.
Pipe size: 6” - 12” (3” & 4” inside straight pipe only).
Specs: Electric motor & safety clutch / 3-phase 16amp 400v / 3kw / 1500rpm

Features: Control box can be detached and taken closer to access point (16.4’ cord) allowing easy access to control box (Emergency stop, speed control).

Includes a 3.3kVA portable tool transformer with a 110v 15A & 30A socket.
Weight 794lbs.

Push your Maxi Power+ to the max with the Picote Generator. Already configured for the Power+ so no need to rewire on site, removing risk of potential damage to the machine and making sure that there is enough power for the tough jobs. The Picote Generator comes with a 3.3kVA portable tool transformer with a 110v 15A & 30A socket. Conveniently power all your Millers with the Generator.

The Picote Mini Miller Coating Pump features a digital control box. A rotational dial allows the user to control the speed of delivery, which is dependent on the pipe diameter. The no-mess peristaltic pump supplies the resin and hardener together to ensure evenly mixed resin enters the delivery hose. With the Picote Mini Miller pump you will be able to pump resin up to 75' in lined or unlined pipes from 1 1/4” to 8”.

The Picote Maxi Miller Coating Pump features a digital control box. A rotational dial allows the user to control the speed of delivery, which is dependent on the pipe diameter. The no-mess peristaltic pump supplies the resin and hardener together to ensure evenly mixed resin enters the delivery hose. With the Picote Maxi Miller pump you will be able to pump resin up to 135' in lined or unlined pipes from 3” to 12”.

Picote 1/4" Flexible shaft for Picote millers is an ideal choice for drain cleaners needing to reach pipe through P traps, S traps, multiple 90° turns, or any other application that requires navigating tight spaces for drain cleaning.

The Picote 1/3" Flexible Shaft for Picote Millers is an ideal choice for drain cleaners needing to clean, reinstate, or brush coat 2",3",4", and even some 6" pipes!

1/3" Picote Flexible Shaft can be used either as an extension for the existing Flexible Shaft on your Picote Miller, or as a replacement for an original Picote Flexible Shaft.

Compatible with Picote Super Midi Miller

The Picote 1/2" Flexible Shaft for Picote Millers is an ideal choice for drain cleaners needing to clean, reinstate, or brush coat 3", 4", 6" and even 8" pipes!

1/2" Picote Flexible Shaft can be used either as an extension for the existing Flexible Shaft on your Picote Miller, or as a replacement for an original Picote Flexible Shaft.

price per 3.28ft

Sleeves for shafts. Available for ⅓", ⅜" & ½" shafts (8mm, 12mm & 18mm shafts). Not suitable for Mini Cleaners.

Used in order to connect shaft extensions

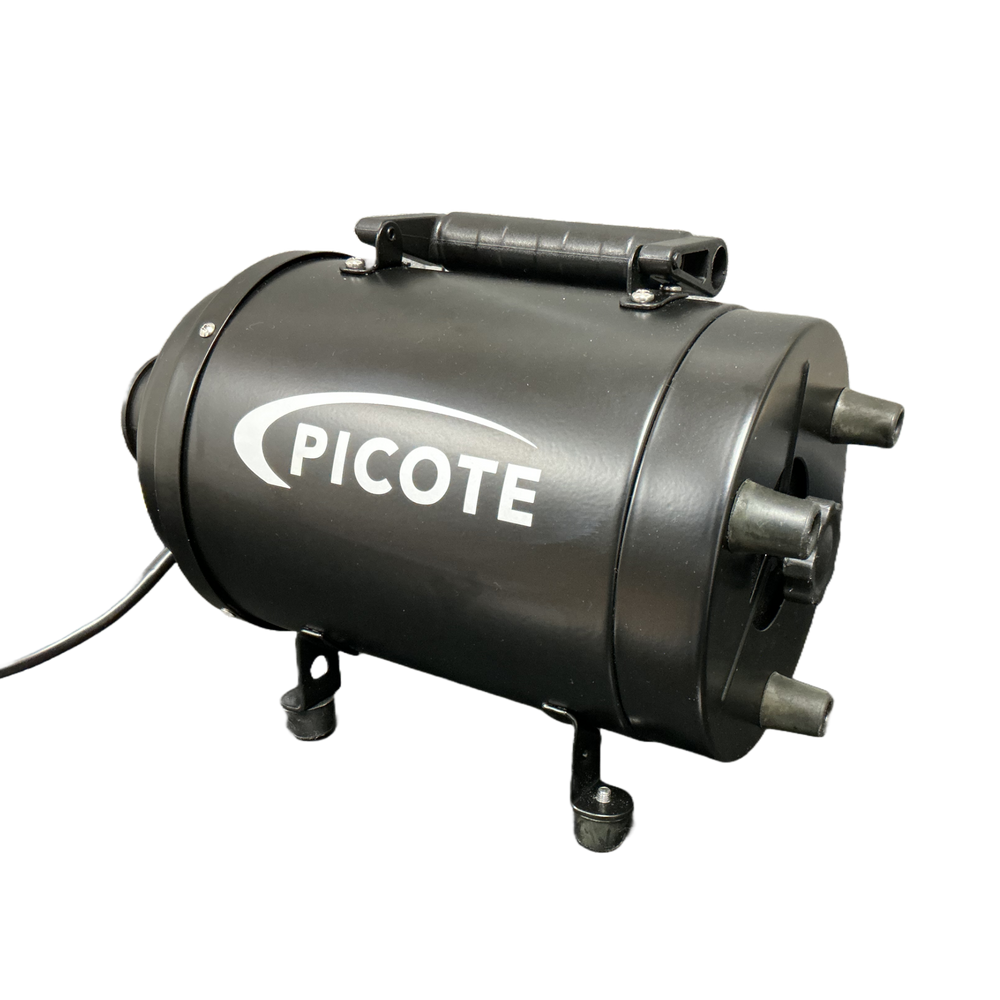

Simplify and speed up drying time of newly applied coatings with the portable Picote Smart Heater.

​ A safe heating option with a maximum air temperature of 55˚C/131˚F, including an automatic thermal cut-out in both motor and heating element. Provides a powerful air output. Ships with a 16' specialty hose with high strength & temperature resistance included.



The Picote Smart Mixer 2.0 is a battery powered cartridge gun in a carrying case with spare battery, charger and additional 600ml piston all included.

The Picote Smart Mixer 2.0 is used to insure complete, and and even mixing of Picote Epoxy, and Picote Fast Cure Epoxy kits for a consistent product every time you coat.

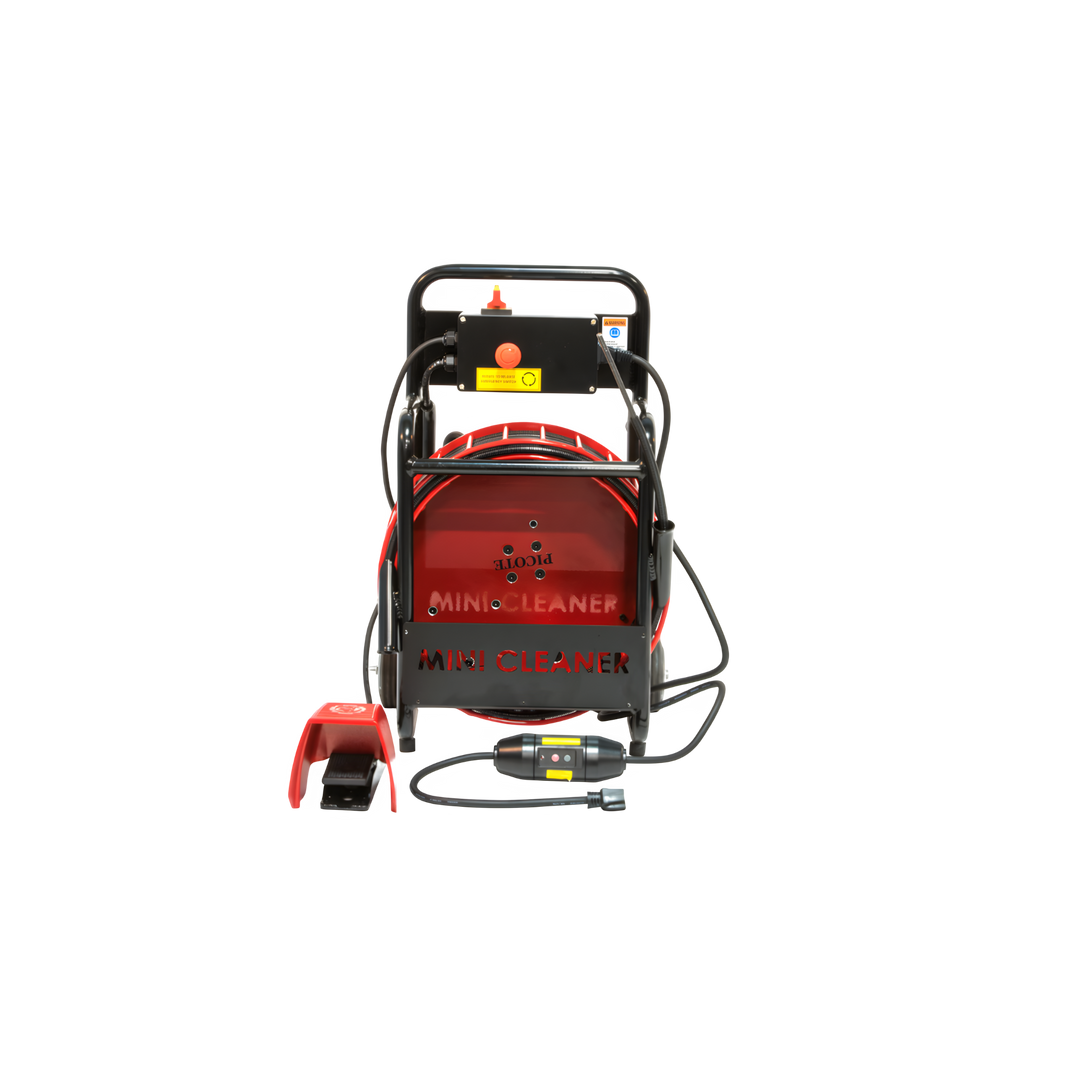

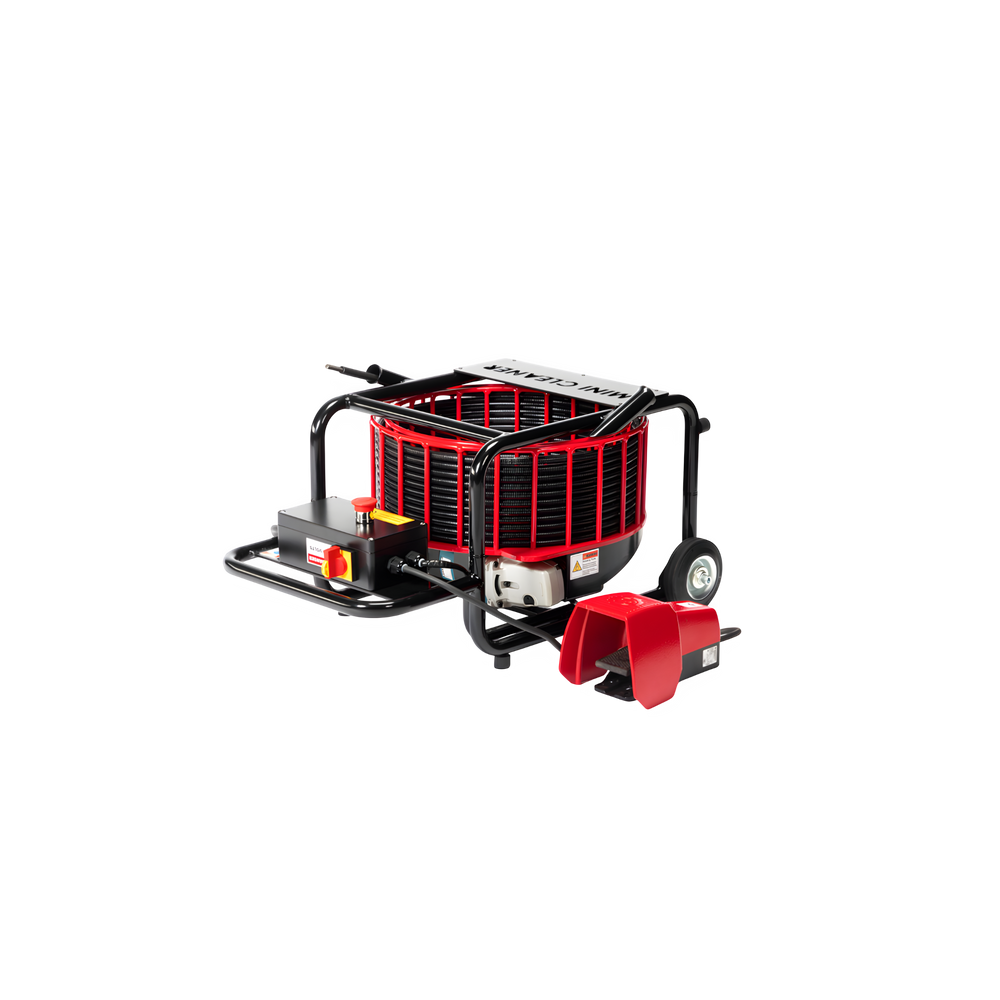

Add the foldable handle to your older style Mini Miller or Mini Cleaner with the handle
upgrade kit to make transporting your Miller easier.

For older style Mini Miller without safety clutch

For safety clutch
