JDVALK6A2.01-1550

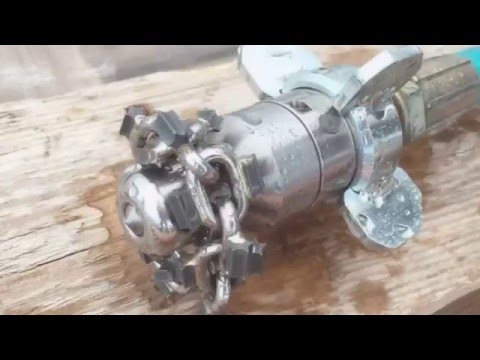

Turbine Nozzles with circular chains head top. Root Cutter Nozzle with Welded Carbide Plates on Circular Chain. Thanks to the fast rotation and special carbide plates welded on the chains, roots, limestone, rust or any material on the pipe wall is easily cut away. This nozzle is also effective for tough jobs such as removal of unsuccessful liners and patch repairs or limestone from cast iron pipes. SOLO is offered as a package including nozzle, 2 sets of chains and centralizers for multiple working DN.
Inlet | 1"F |
Ø x L (inches) | 2.76 x 5.51 |
Weights (lbs) | 5.73 |
Max Pressure (psi) | 3626 |
Flow (gpm) | 39.63 - 71.39 |
Working DN (inches) | 3.94 -9.84 |
