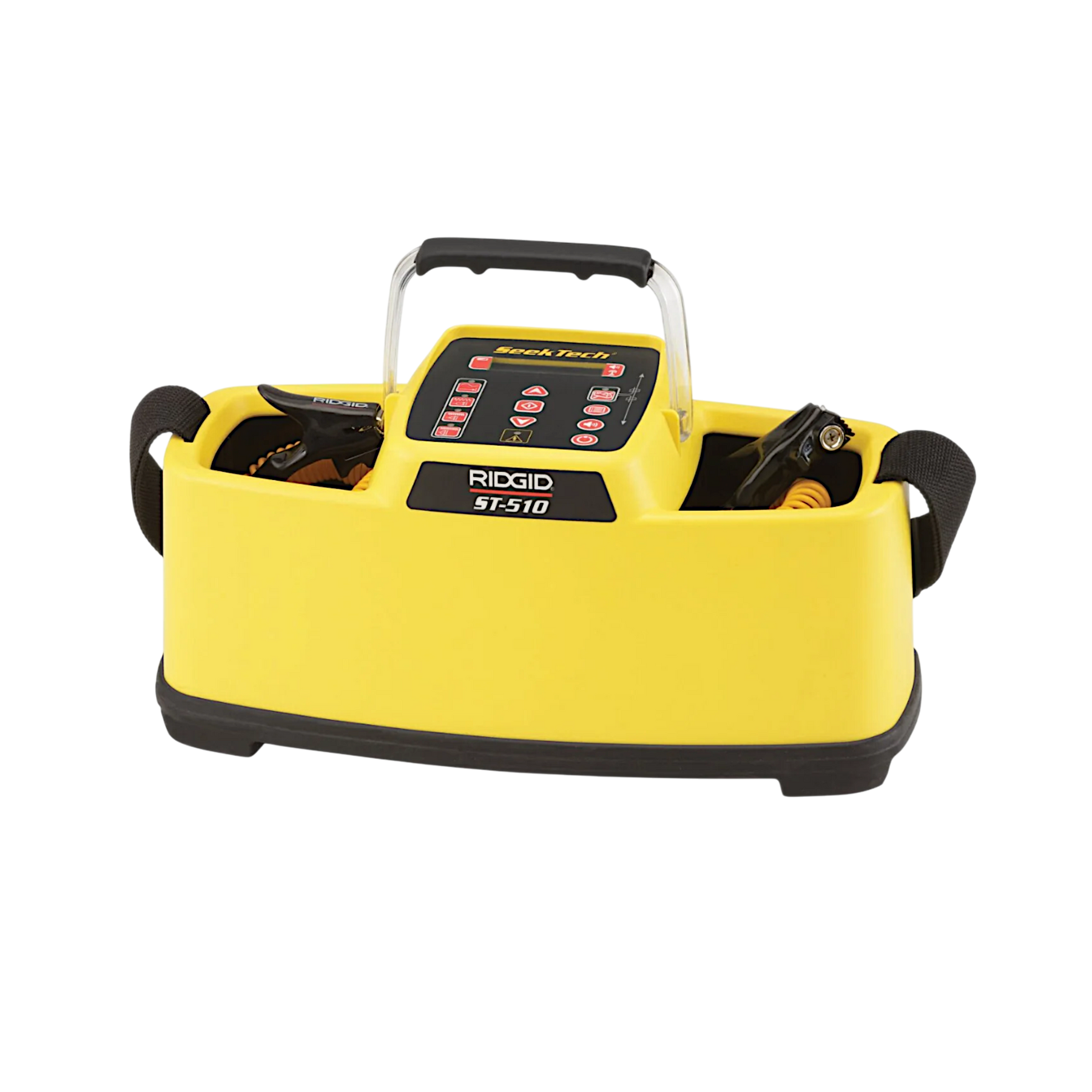

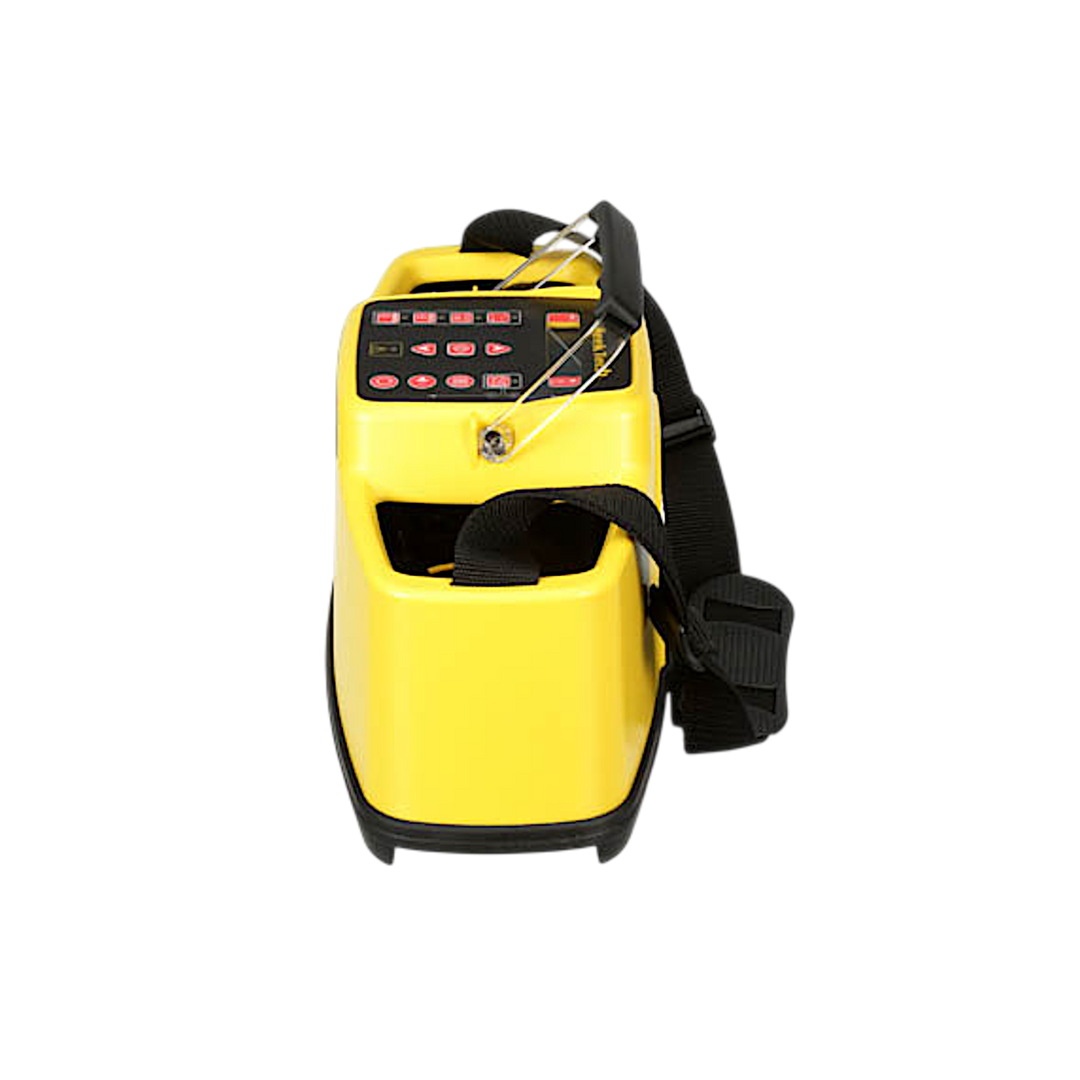

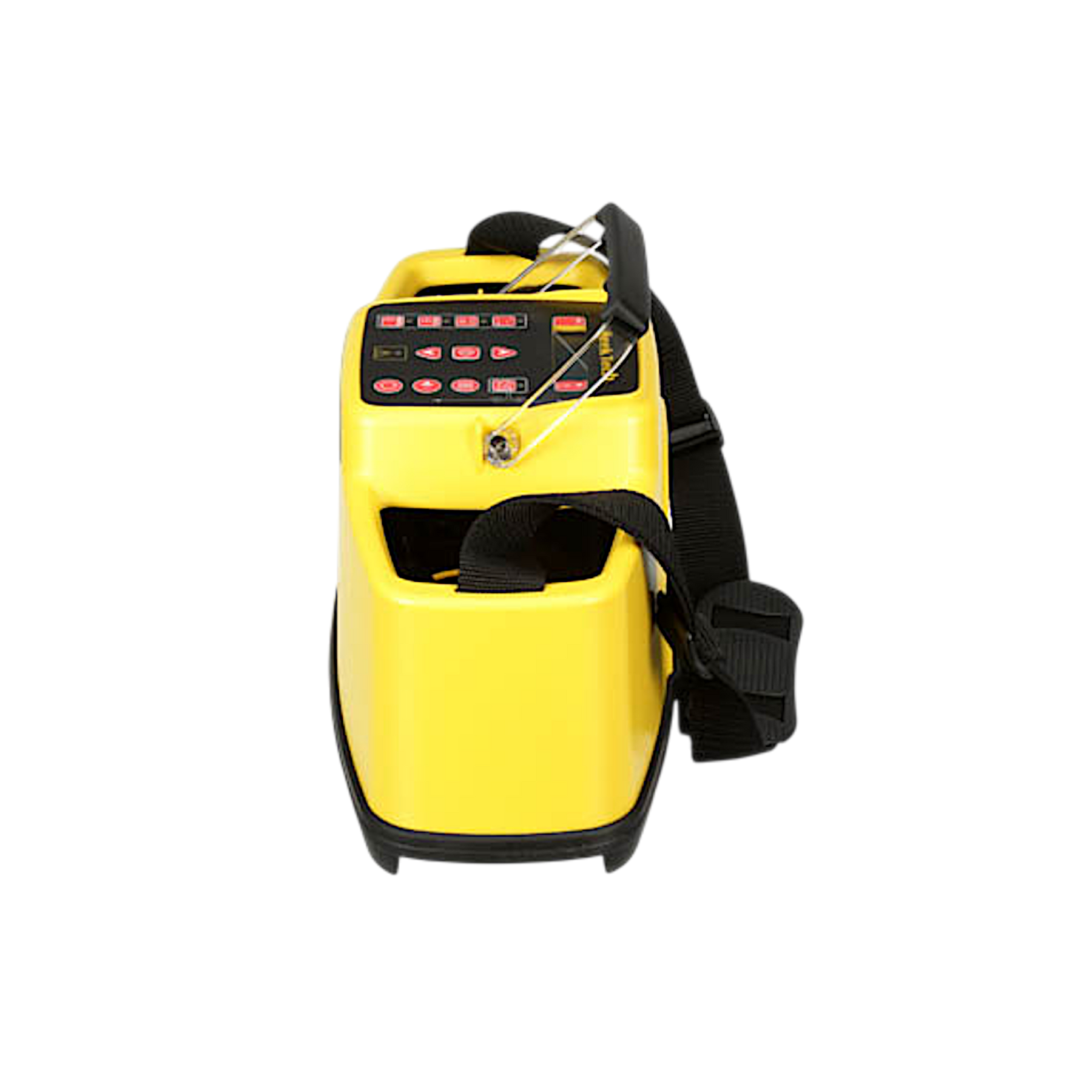

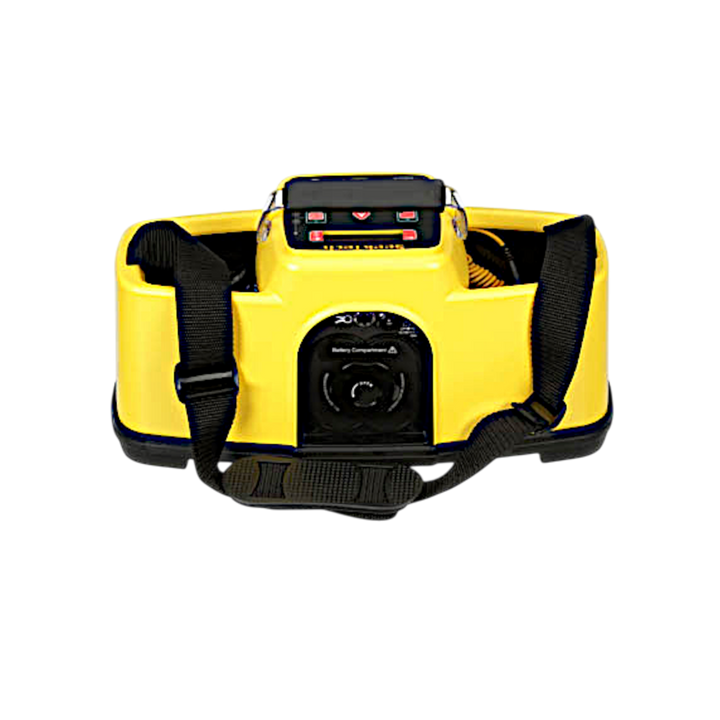

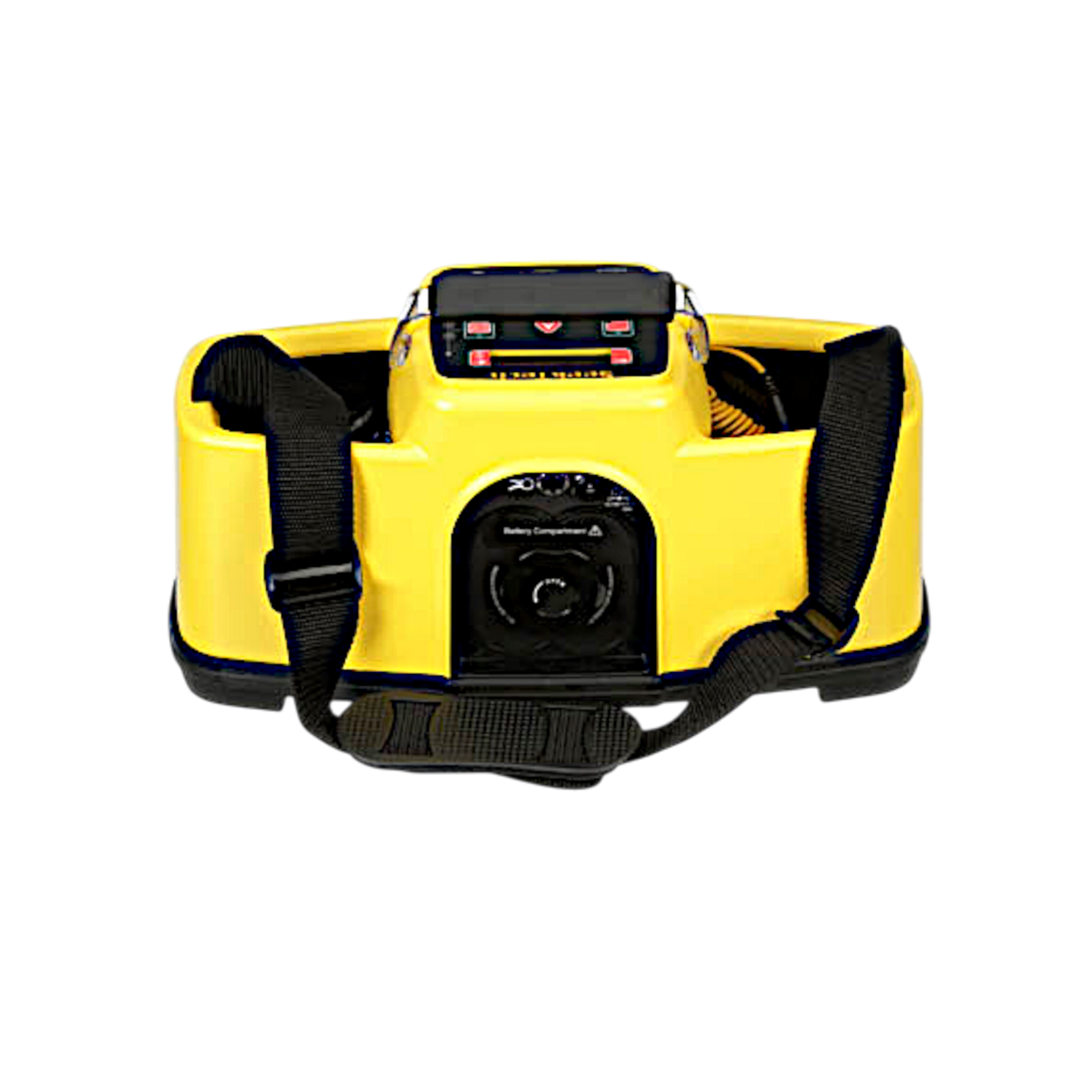

The RIDGID SeekTech ST-510 (21903) Pipe and Cable Line Transmitter (10 Watts) is used to generate an "active" signal on a metallic underground line so that it may be traced with a compatible receiver (such as the SeekTech SR-20 or SR-60). This allows the line's location to be correctly marked so it can be exposed for repair or avoided during excavation.
The ST-510 line transmitter can apply an active tracing signal to a target conductor in three ways:

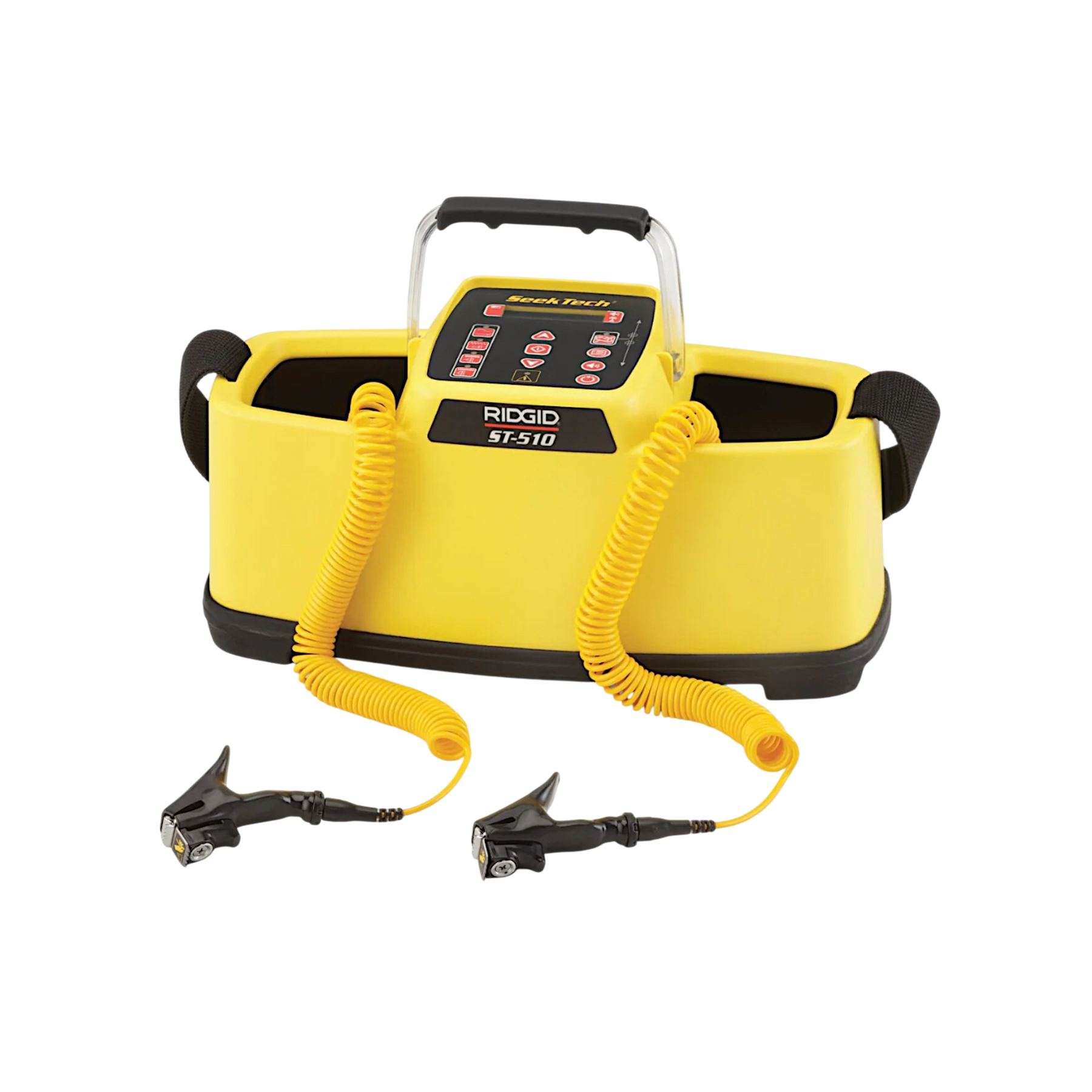

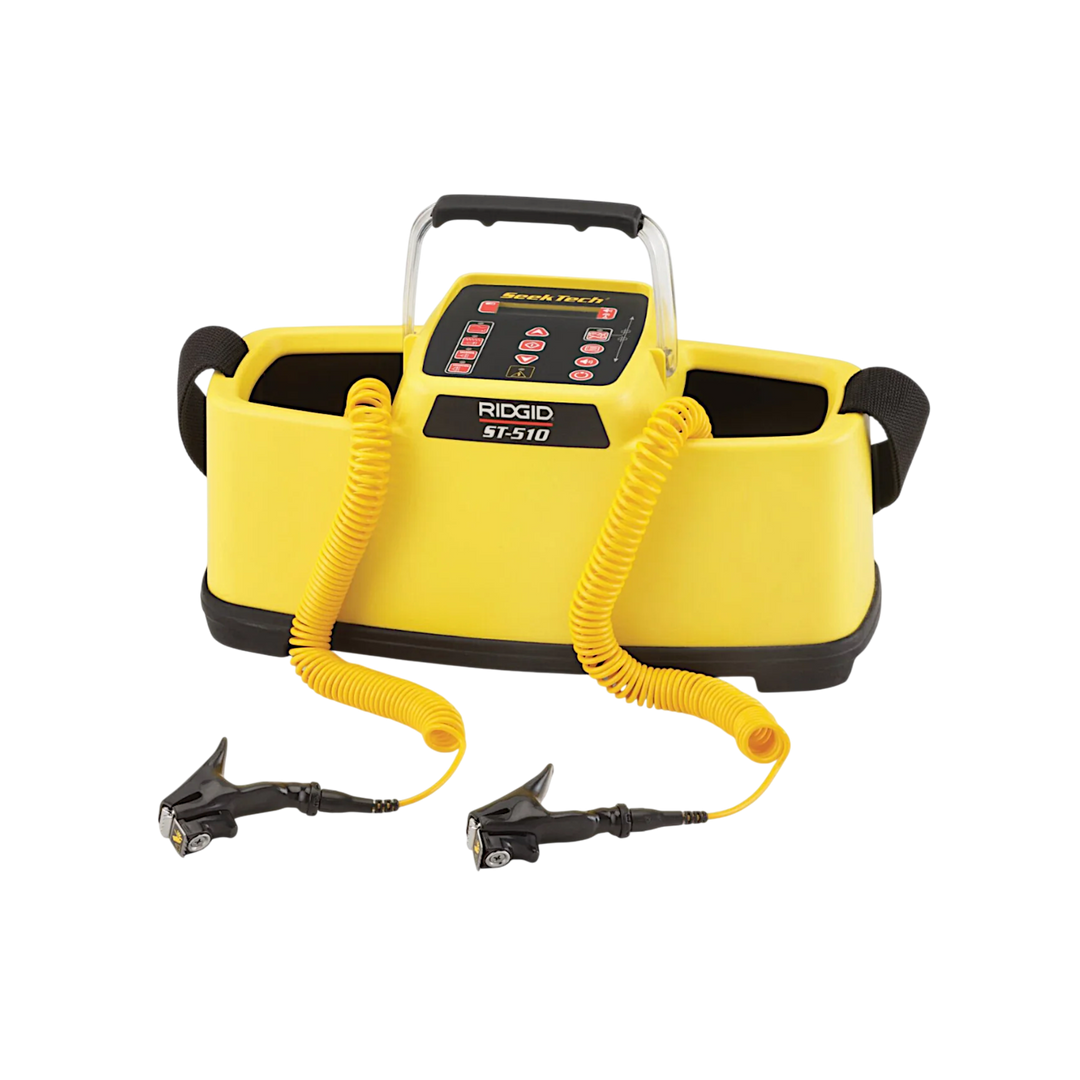

Direct Connect Method:Ā The transmitter's leads are connected directly to the target conductor and a suitable ground.
Inductive Clamp Method (optional accessory):Ā The jaws of the inductive clamp (sold separately) encircle the target conductor; there is no metal-to-metal contact
Inductive Mode:Ā The transmitter is placed over and in-line with a conductor. Its internal antenna induces a signal onto the target conductor.
