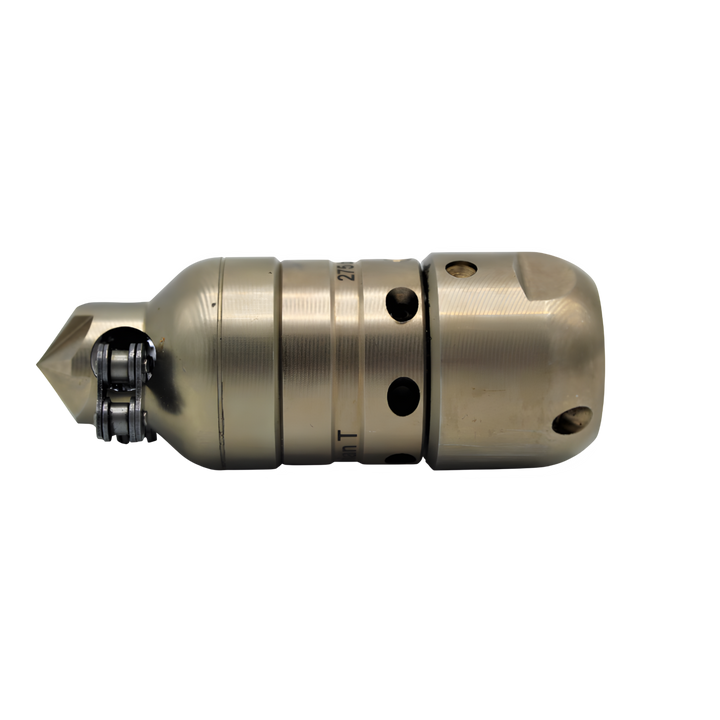

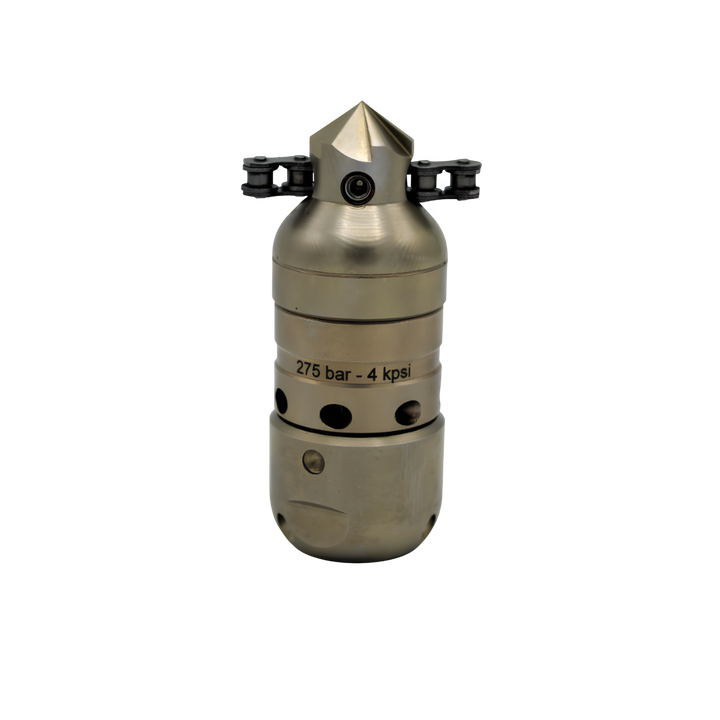

1/2" Avian Chain Head Nozzle
1/2" Avian Chain Head Nozzle
1/2" Avian Chain Head Nozzle

1/2" Avian Chain Head Nozzle

JD-650-ACH-12-2010

SS multi-functional nozzles with interchangeable rotating head. With chain-head and pipe centralizers it can be used to remove roots, rust, unsuccessful liners or point repairs. For this application it can be supplied as package in plastic case, including nozzle, centralizers, sets of chains and tools. With steel or carbide heads, it can be used as milling nozzle to break through hard obstructions. Round head can be installed for pipe cleaning operation.

Features:

  • 10-25 GPM, up to 4,000 PSI
  • 3 rear jets @ 90° on Rotation for all nozzles
  • Comes with case
  • Easy and fast changeable chain retainers

Specifications:

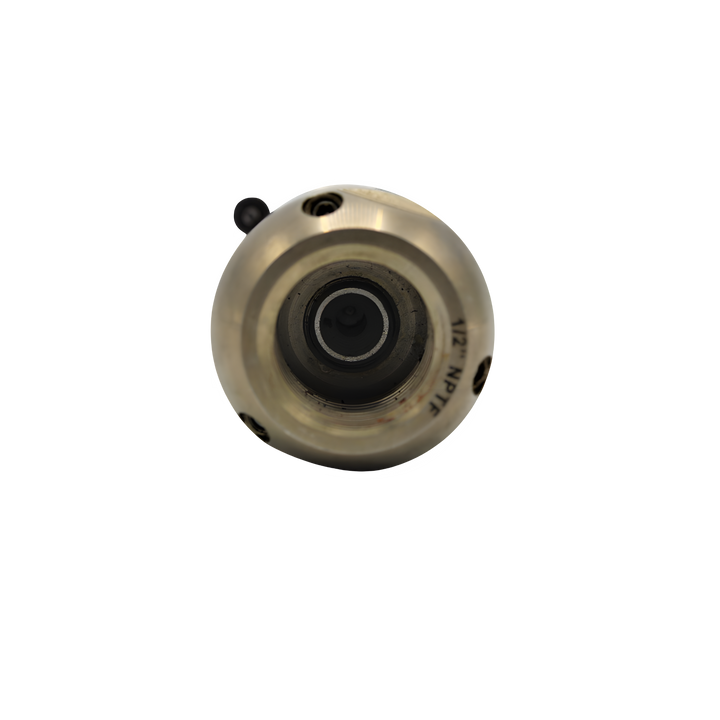

Inlet 1/2" F
Ø x L (inches) 1.42 x 2.36
Weight (lbs) 0.75
Rotation Jets 3 x 90°
Rear Jets 6 x 25°
Inserts M4x5
Max Pressure (psi) 3626
Flow (gpm) 15.85 - 42.27
Working DN (inches) 1.97 - 3.94

Regular price$1,440.58
/
Shipping calculated at checkout.
