1" Fara High Thrust Nozzle
1" Fara High Thrust Nozzle
1" Fara High Thrust Nozzle

1" Fara High Thrust Nozzle

JD4401-1-1560

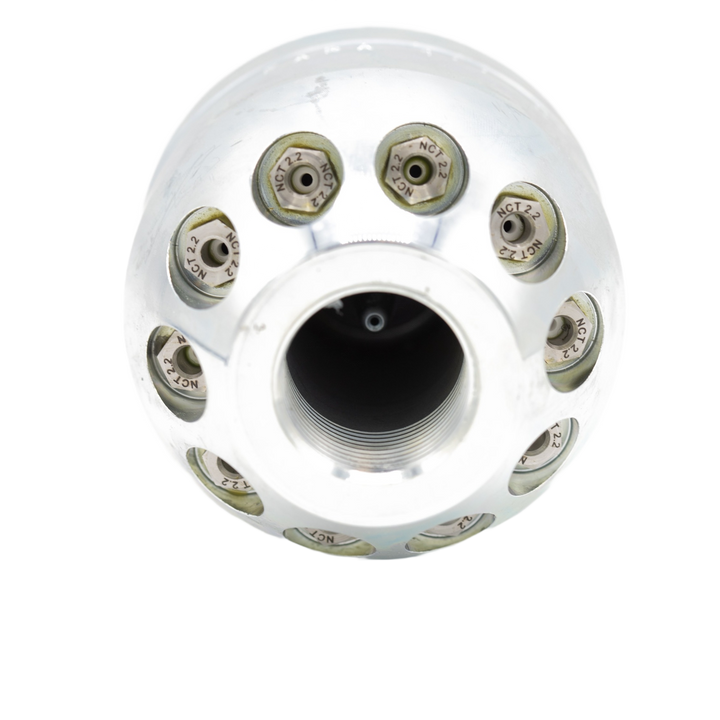

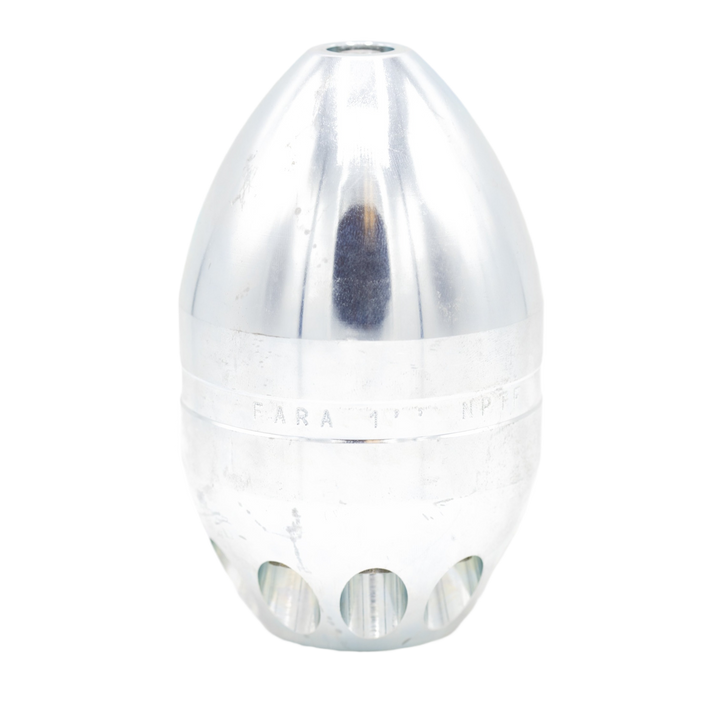

This high traction grenade nozzle has been designed and manufactured with a lot of rear jets that enable adequate cleaning in pipes up to DN 500. Low Angle Jets for High Thrust. The Ultimate flushing power in larger pipe.

These high efficiency nozzles are manufactured in hardened alloy steel and are designed for general cleaning and expelling of materials. These nozzles are supplied with ceramic inserts. To improve nozzle performance high efficiency nozzles have a deviator inside the nozzle to maximize flow efficiency, reducing pressure drop. A quality Cleaning or Flushing Nozzle for any large jetter.

Specifications:

Inlet 1"F
Ø x L (inches) 3.43 x 5.51
Weight (lbs) 7.94
Rear Jets 10 x 15°
Inserts TE M10x1
Max Pressure (psi) 4351
Flow (gpm) 31.70 - 79.25
Working DN (inches) 5.91 - 15.75

Regular price$829.10
/
