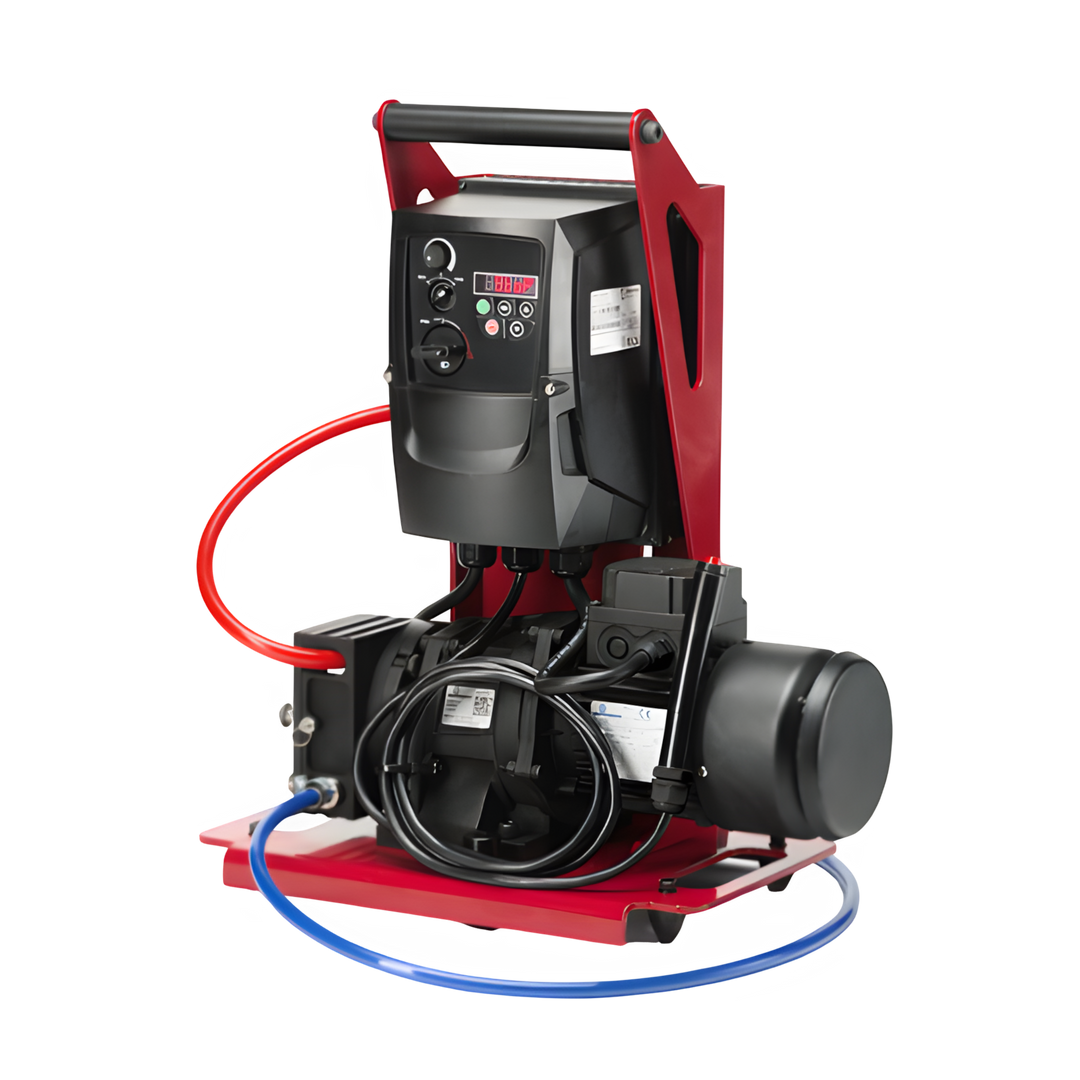

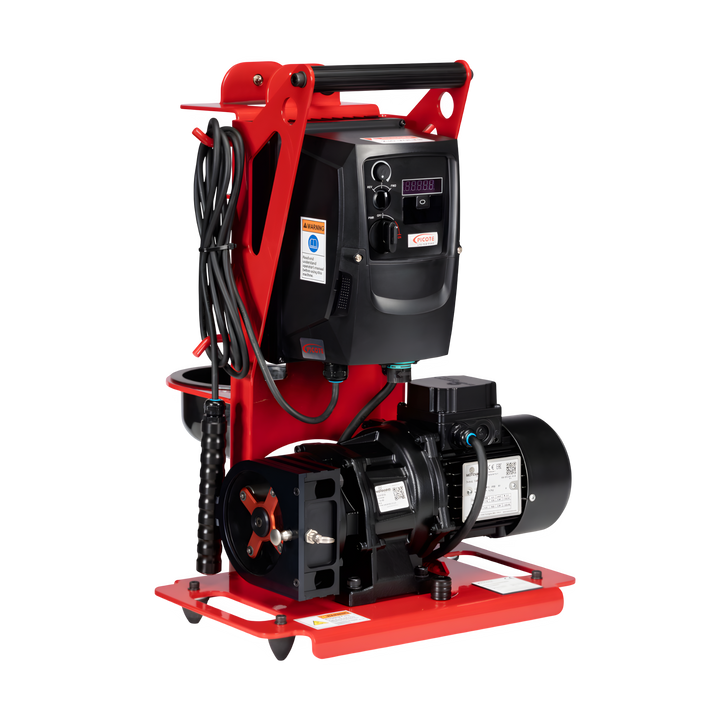

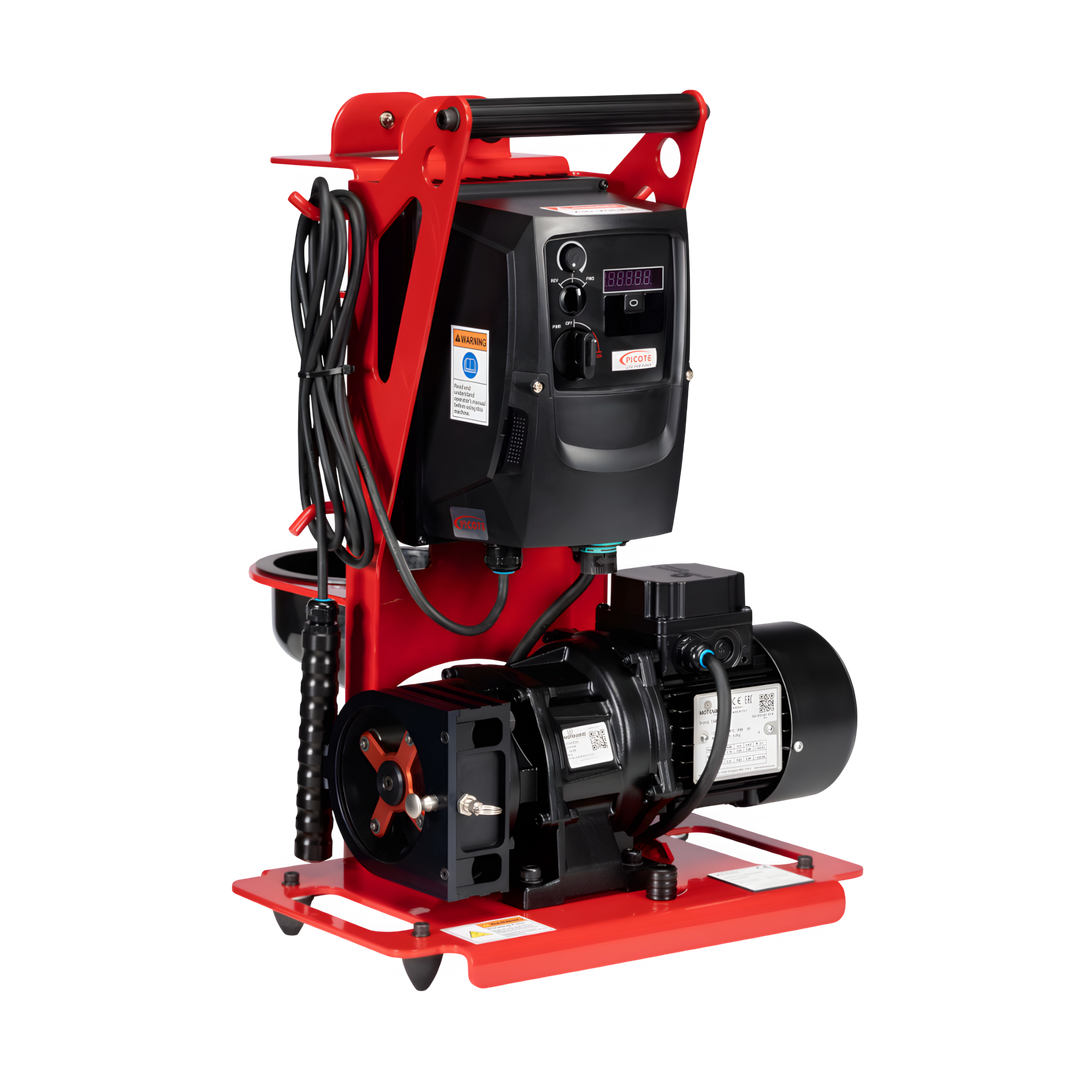

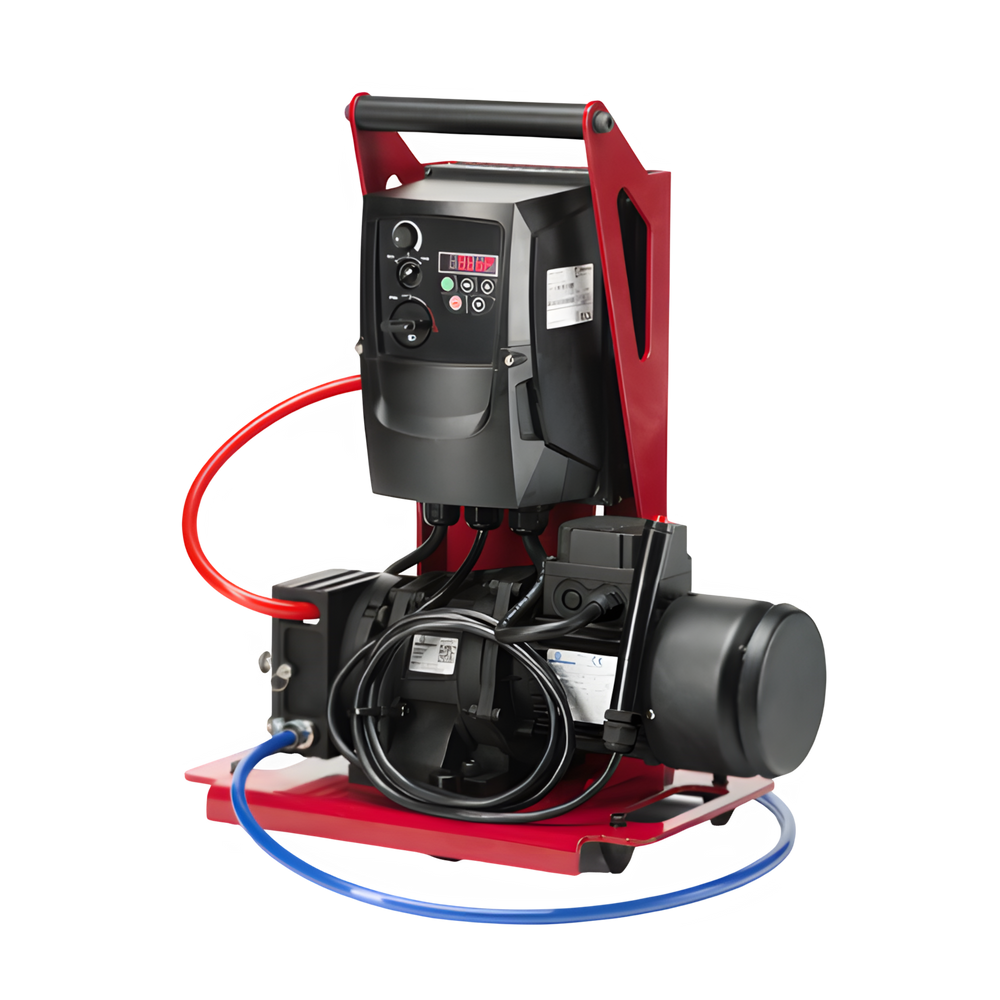

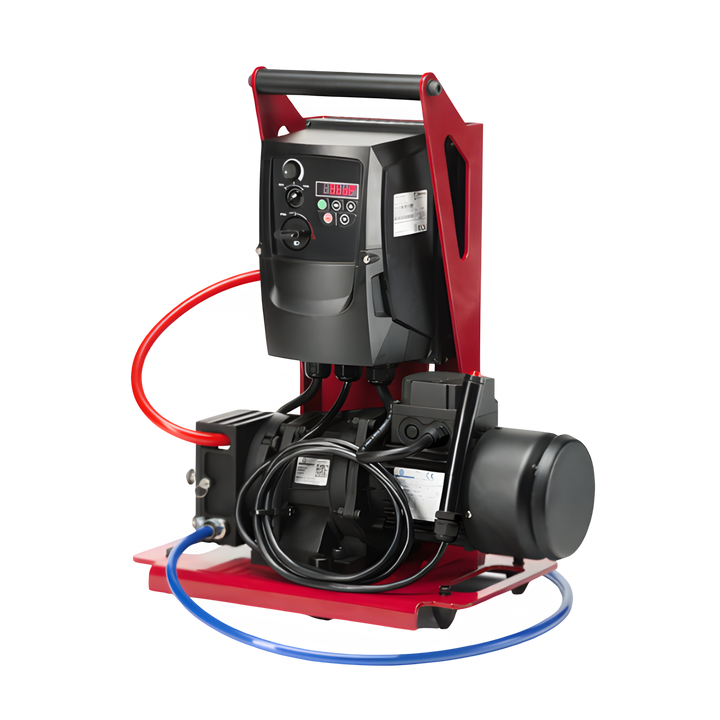

Picote Mini Miller Coating Pump
JD2220100002
The Picote Brush Coating system is a simple, fast, and practical coating solution used to renovate and prolong the life of stack pipes drains, sewers, water pipes*, electrical conduits, and more. Clean the pipe well and apply two coats for a corrosion barrier. Alternatively, apply additional coats of resin to form a new, seamless semi-structural rehabilitation that should last 30-50 years.* Can be combined with several different Miller models to meet project needs based on pipe length & diameter. For pipe coating and degreasing in 1 1/4 - 8" diameter pipes up to 75' in length.
FEATURES:
- Controls the flow of Picote Brush Coating DC1000E, Dual Color Epoxy Resin.
- Adjustable pump speed & direction.
- Hand-held locking operator control trigger. When the button is pushed the pump is engaged and will operate until pressed again.
- Combine and secure the Mini Coating Pump to the Mini Miller, Mini Cleaner, or Super Battery Mini Miller/Mini Cleaner frames for a portable compact system.
- Can also be used to remove fats, oils, and grease from pipes by pumping degreaser down the line to assist with cleaning.
- Includes Resin Cup Package, 3x Hose Connectors, Hose Clamps and 2x Brush Stoppers.
- *NSF61 Certified for 4" and larger pipes
SPECIFICATIONS:
|
Pipe Diameters (inch) |
1 1/4 - 8" |
| Max Range (feet) | 75' |
| Power (volt) | UK/US: 110, 15 Amp EU: 220, 16 Amp |
| Output (kilowatt) | 0.18 |
| Weight (lbs) | 35.5 |
| Size (inch) | 16.2 x 16.5 x 21.5 |
