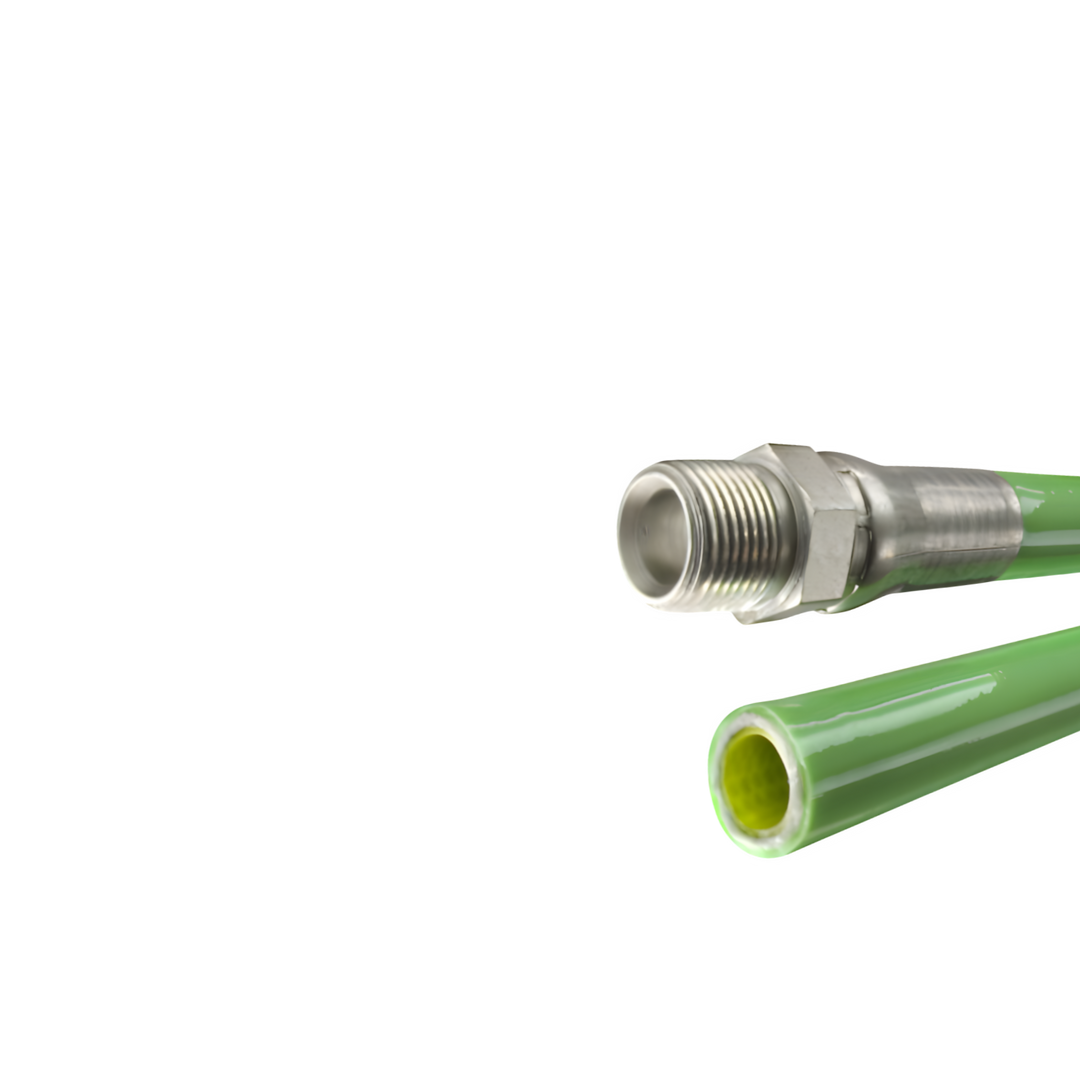

Piranha Green "Slither" High Pressure Hose
JD044-GS5
A yellow seamless thermoplastic tube, single or double high tensile synthetic fiber braid reinforcement and abrasion resistant slick green polyurethane cover.
Service Temperature Range 12, 16: -40°F (-40°C) to +150°F (+66°C)
Service Temperature Range 02, 03: -40°F (-40°C) to +160°F (+71°C)
Service Temperature Range 04, 06, 08: -40°F (-40°C) to +190°F (+87°C)
SPECIFICATIONS:
|
ID (inch) |
1/8 | 3/16 | 1/4 | 3/8 | 1/2 | 3/4 | 1 |
| OD (inch) | 0.32 | 0.41 | 0.50 | 0.65 | 0.83 | 1.30 | 1.63 |
| Max. Working Pressure (psi) | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 |
| Min. Burst Pressure (psi) | 10000 | 10000 | 10000 | 10000 | 10000 | 10000 | 10000 |
| Min. Bend Radius (inch) | 1.25 | 1.75 | 2.50 | 3.0 | 4.0 | 5.0 | 8.0 |
| Weight (lbs/ft) | 0.04 | 0.05 | 0.06 | 0.11 | 0.16 | 0.41 | 0.65 |
