ROM Economic

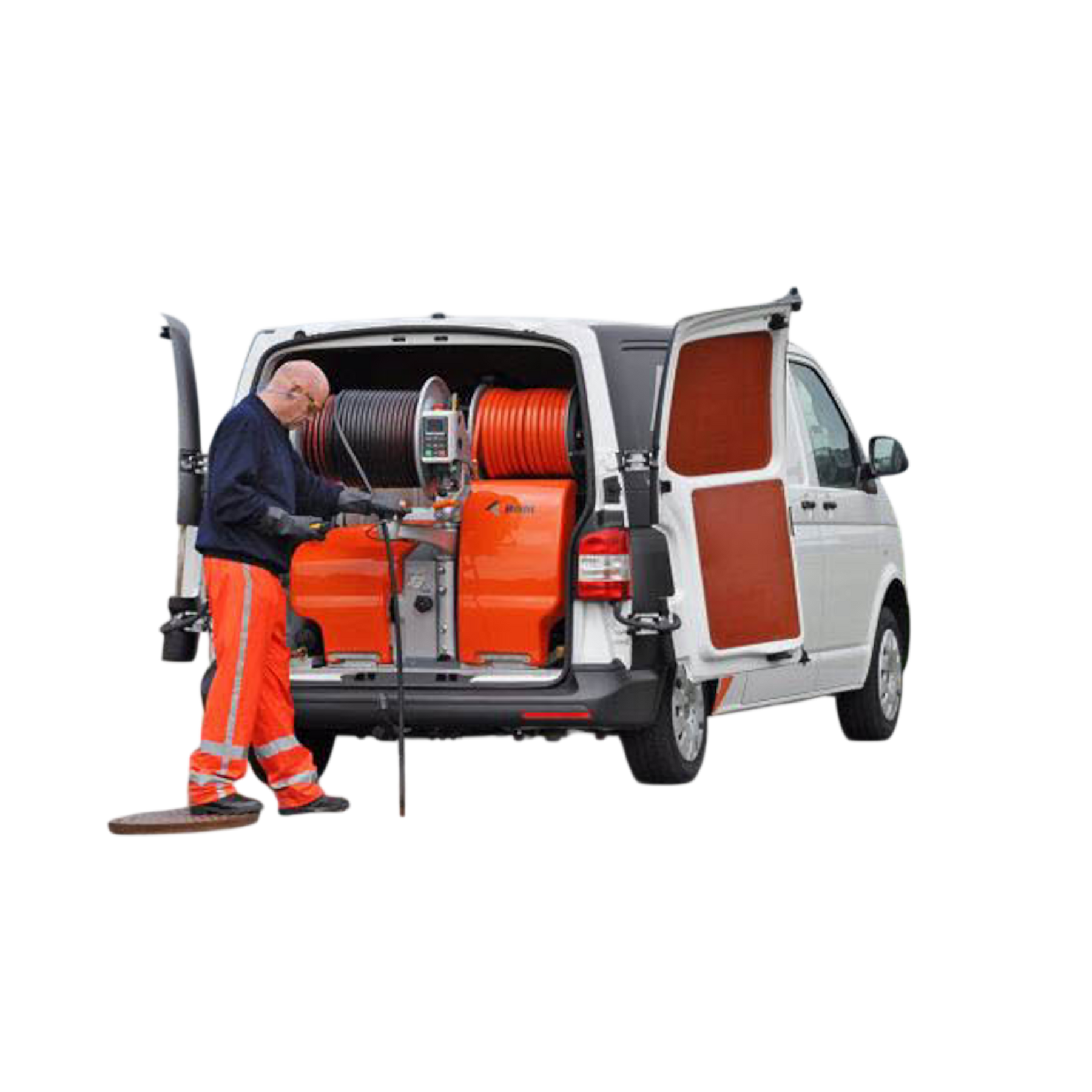

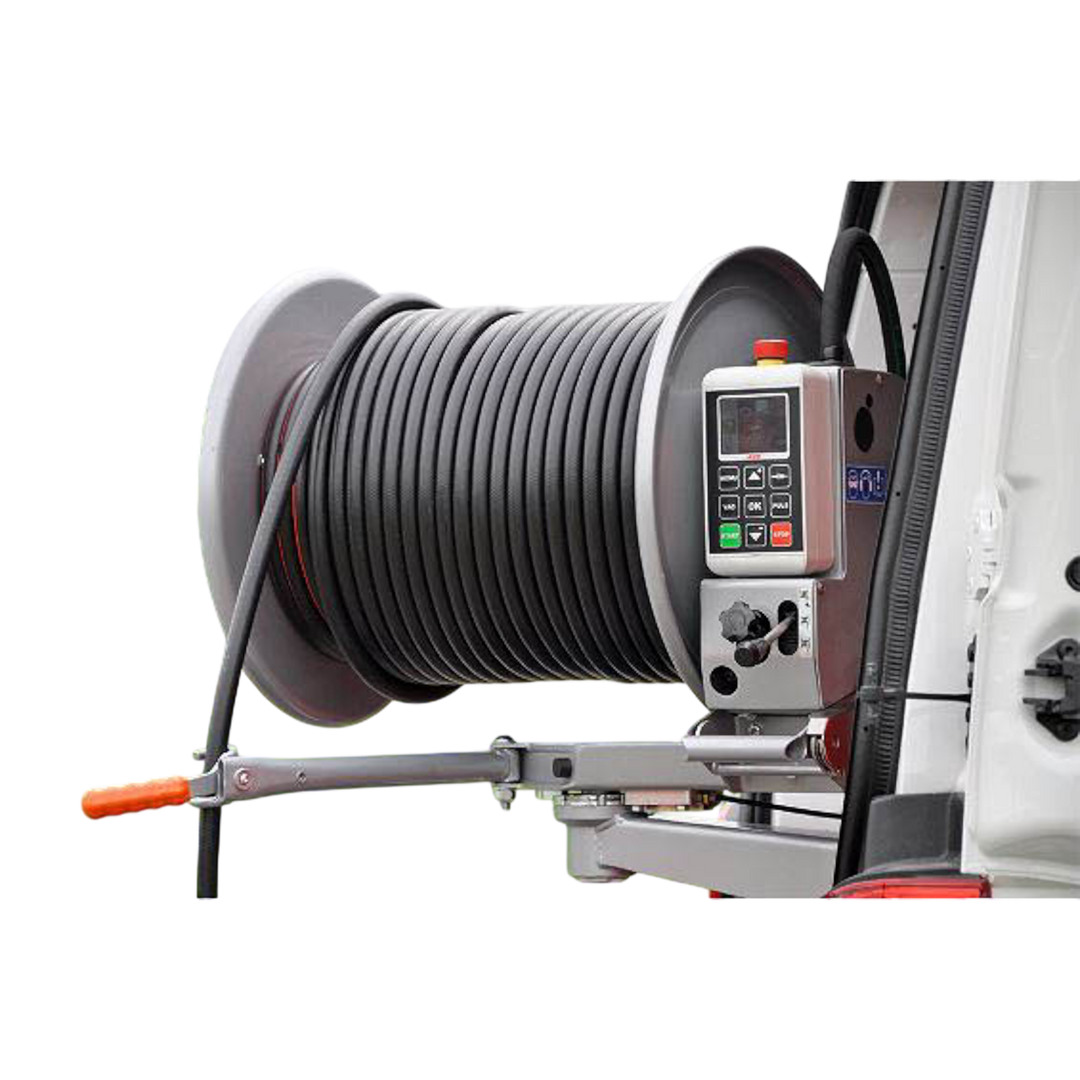

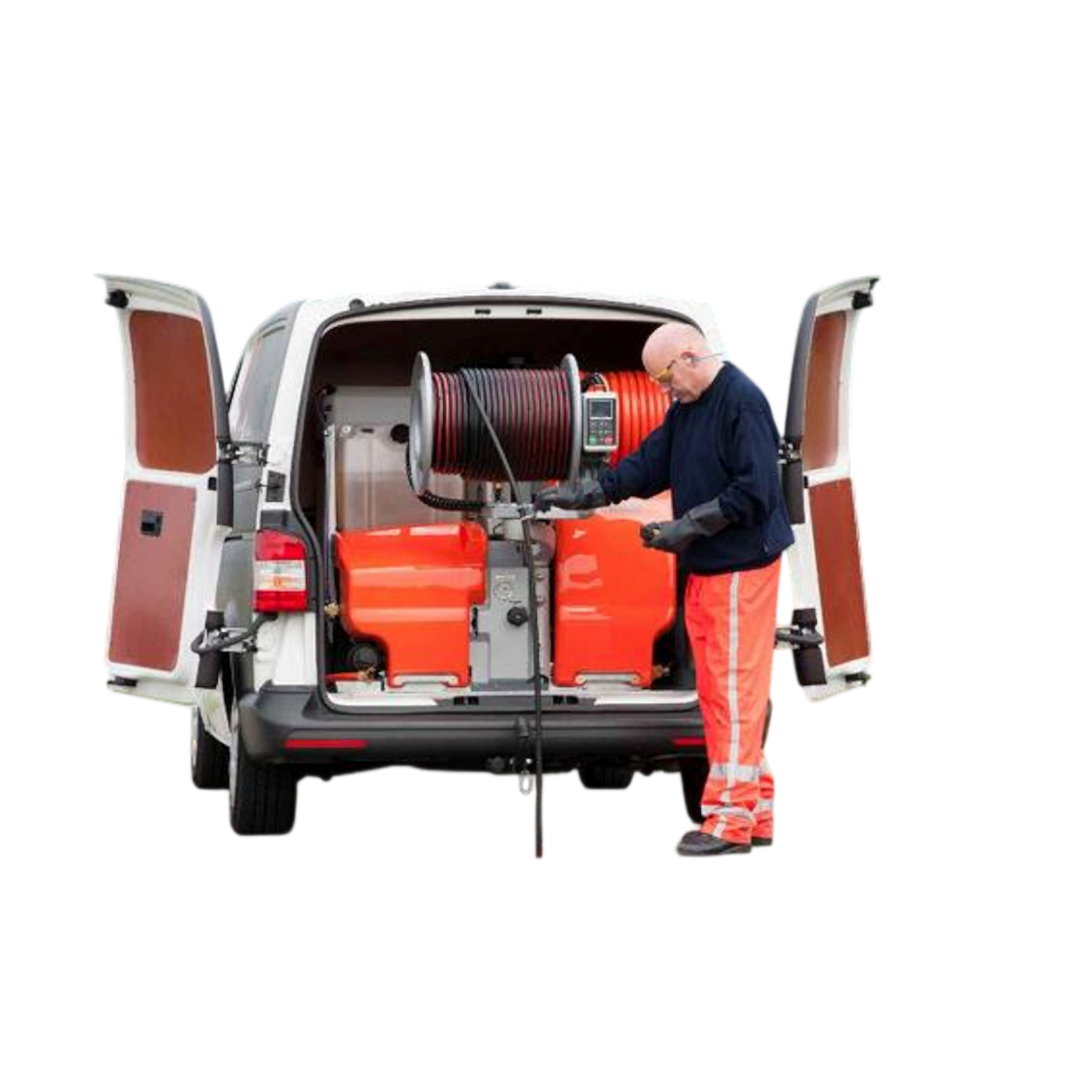

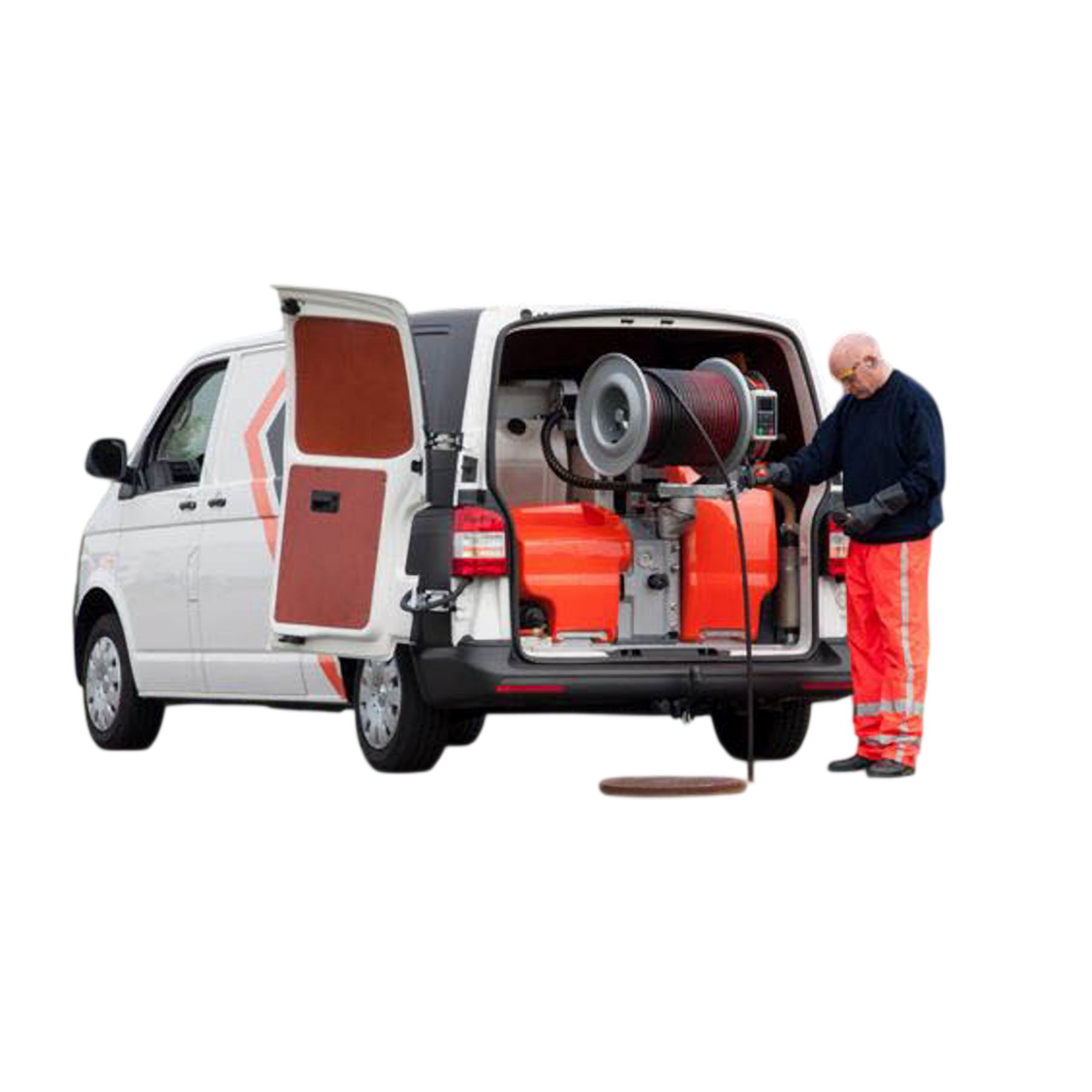

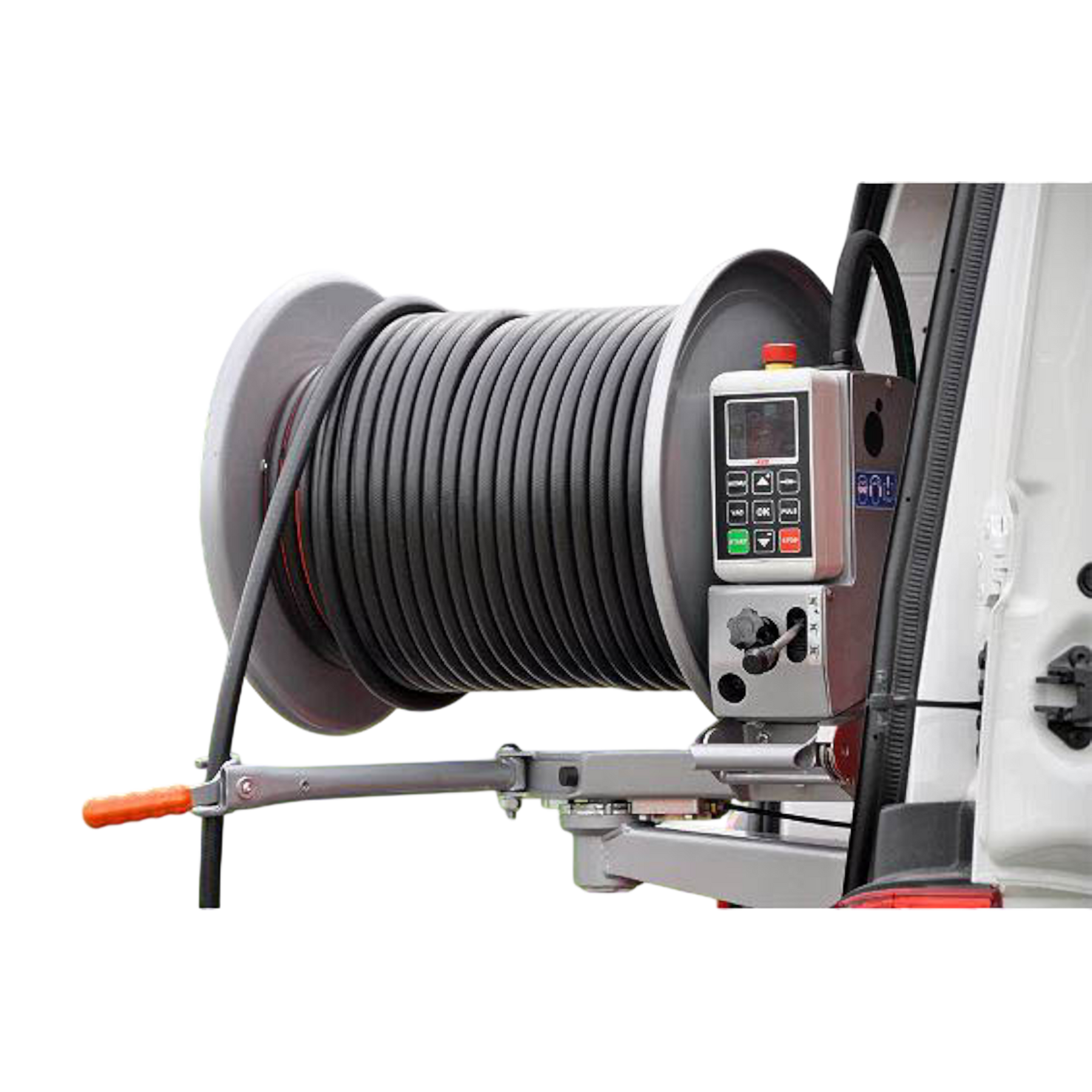

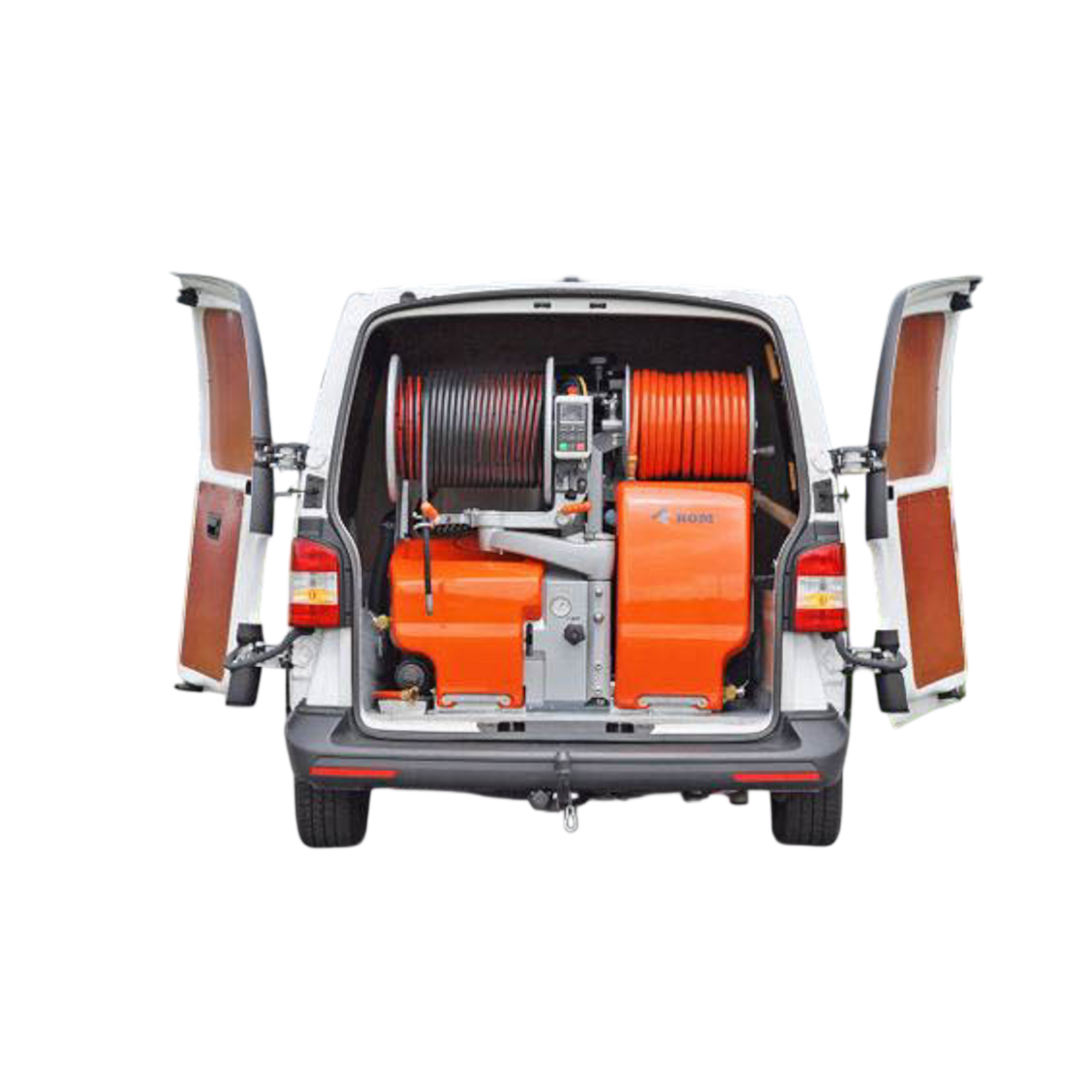

The EcoNomic is equipped as standard with a pivoting hydraulically-driven high-pressure reel. The benefits: 180° range so you can work at right angles to the vehicle (left and right). The reel extends far beyond the door opening of the vehicle but can also be used without having to swing it out. The reel is equipped with a hinged hose entry guide and a rotating control panel.

APPLICATIONS:

• Pipe Maintenance: Unblocking and cleaning sewer lines and pipes up to 24 inches in diameter.

• Surface Cleaning: Façade, surface, and drainage cleaning, as well as light graffiti removal.

PERFORMANCE FIGURES:

• 2,900 PSI / 16.0 GPM | 33 hp KUBOTA WG972 EPA Tier 4 Industrial Gasoline Engine | Comfort

• 2,200 PSI / 20.0 GPM | 33 hp KUBOTA WG972 EPA Tier 4 Industrial Gasoline Engine | Comfort

• 2,900 PSI / 20.0 GPM | 58 hp KUBOTA WG1605 EPA Tier 4 Industrial Gasoline Engine | Comfort

• 2,900 PSI / 20.0 GPM | 45 hp KUBOTA V1505-CR-T EPA Tier 4 Diesel Engine | Comfort

• 2,250 PSI / 26.5 GPM | 58 hp KUBOTA WG1605 EPA Tier 4 Industrial Gasoline Engine | Comfort

• 2,200 PSI / 26.5 GPM | 45 hp KUBOTA V1505-CR-T EPA Tier 4 Diesel Engine | Comfort

TECHNICAL CHARACTERISTICS:

• Insertion range: Max. 24" diameter

• Drive options:

  • 33 hp KUBOTA WG972 Industrial Gasoline Engine

  • 58 hp KUBOTA WG1605 Industrial Gasoline Engine

  • 45 hp KUBOTA V1505-CR-T EPA Tier 4 Diesel Engine

• High-pressure pump: Speck | 2,900 PSI - 16.0 GPM | 2,200 PSI - 20.0 GPM | 2,900 PSI - 20.0 GPM | 2,250 PSI - 26.5 GPM | 2,200 PSI - 26.5 GPM

• High-pressure hose: 262 ft. of 1/2” or 5/8” hose

• High-pressure reel: 225˚ pivoting hydraulically driven high-pressure reel (135˚ + 90˚) & fold-out hose entry guide

• High-pressure pump protection: Dry-running protection

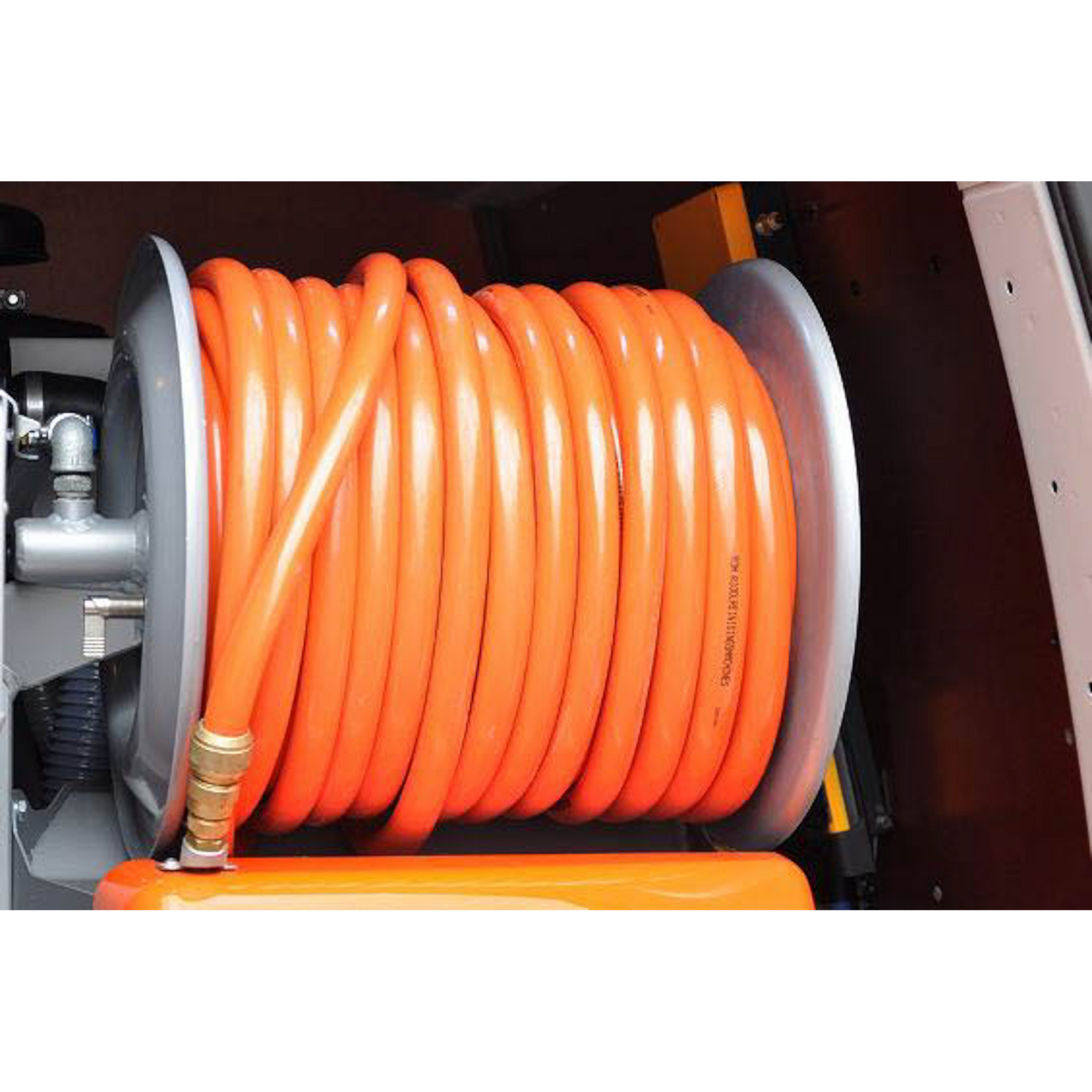

• Filling hose reel: 164 ft. of 3/4” water hose

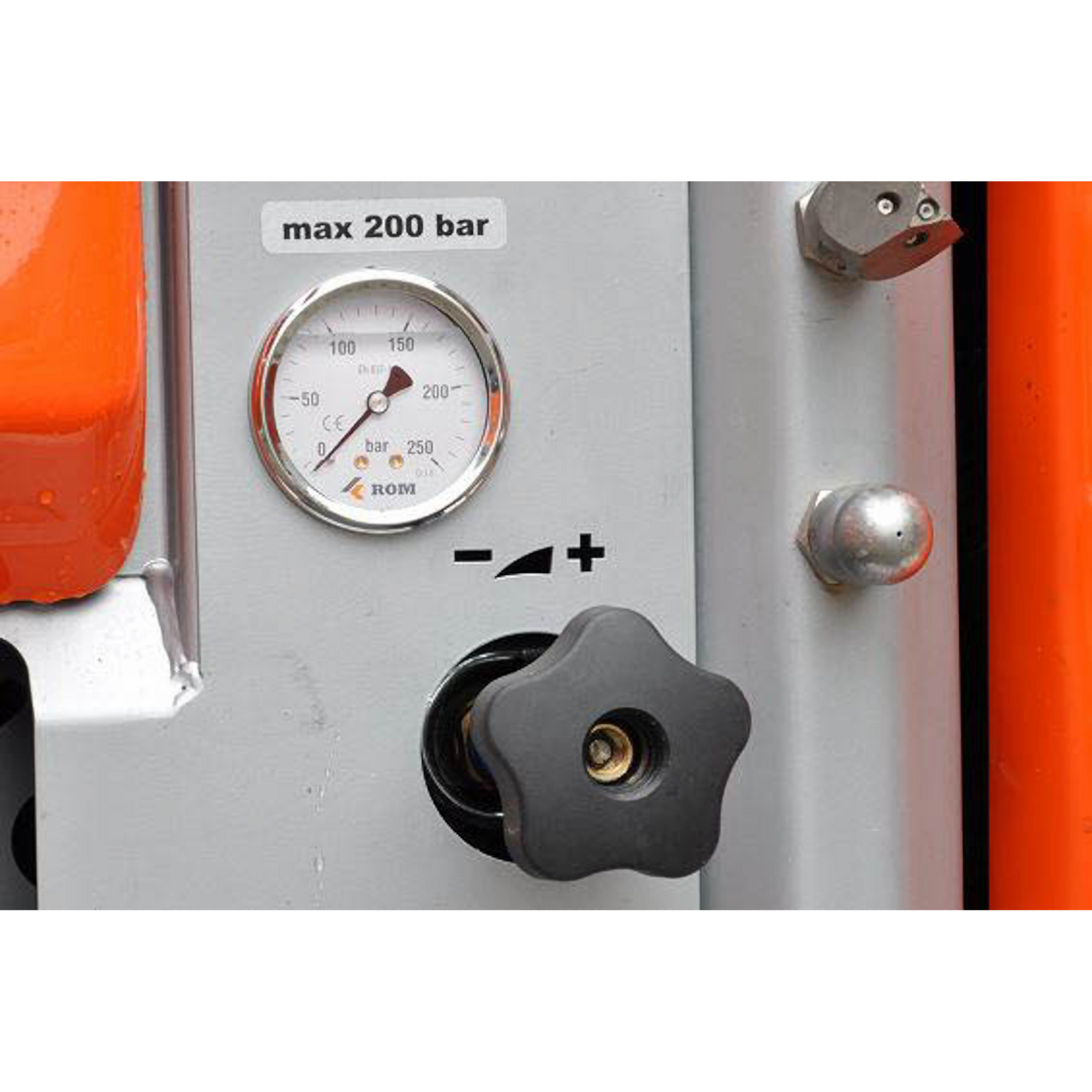

• Pressure regulator: Continuously adjustable

• Water tank capacity: 160 Gallons

• Fuel tank capacity: 8 Gallons

• Weight: From 1,268 lbs.

• Dimensions (L x W x H): 57.1" x 49.2" x 49.2"

• Operation: iROM control system, including daylight display with hour meter, tachometer, and automatic service interval indicator.

• Remote control: Professional-Remote ("In- & Outdoor"), 8 buttons

• Accessories: Spray lance with flat jet spray nozzle and machine-mounted nozzle rack

• Spray nozzles: Nozzle 33 with front jet and rear drive | Nozzle 36 rear jet

• Color: Orange cover, grey metal frame

STANDARD EQUIPMENT

• Engine: Economical EPA Tier 4 Kubota engine. Meets current and future emissions requirements.

• Tanks: Large 160-gallon water tank and 8-gallon fuel tank

• Ignition: Electronic start-up system

• High-Pressure Reel: 225˚ pivoting hydraulically driven high-pressure reel (135˚ + 90˚) & fold-out hose entry guide

• High-Pressure Hose: 262 ft. of 1/2” or 5/8” high-pressure hose

• Filling Hose Reel: Includes 164 ft. of 3/4” water hose

• Control System: Rotating iROM control system, including daylight display and waterproof touch-key operation (IP65)

• Pump Protection: Dry-running protection for the high-pressure pump

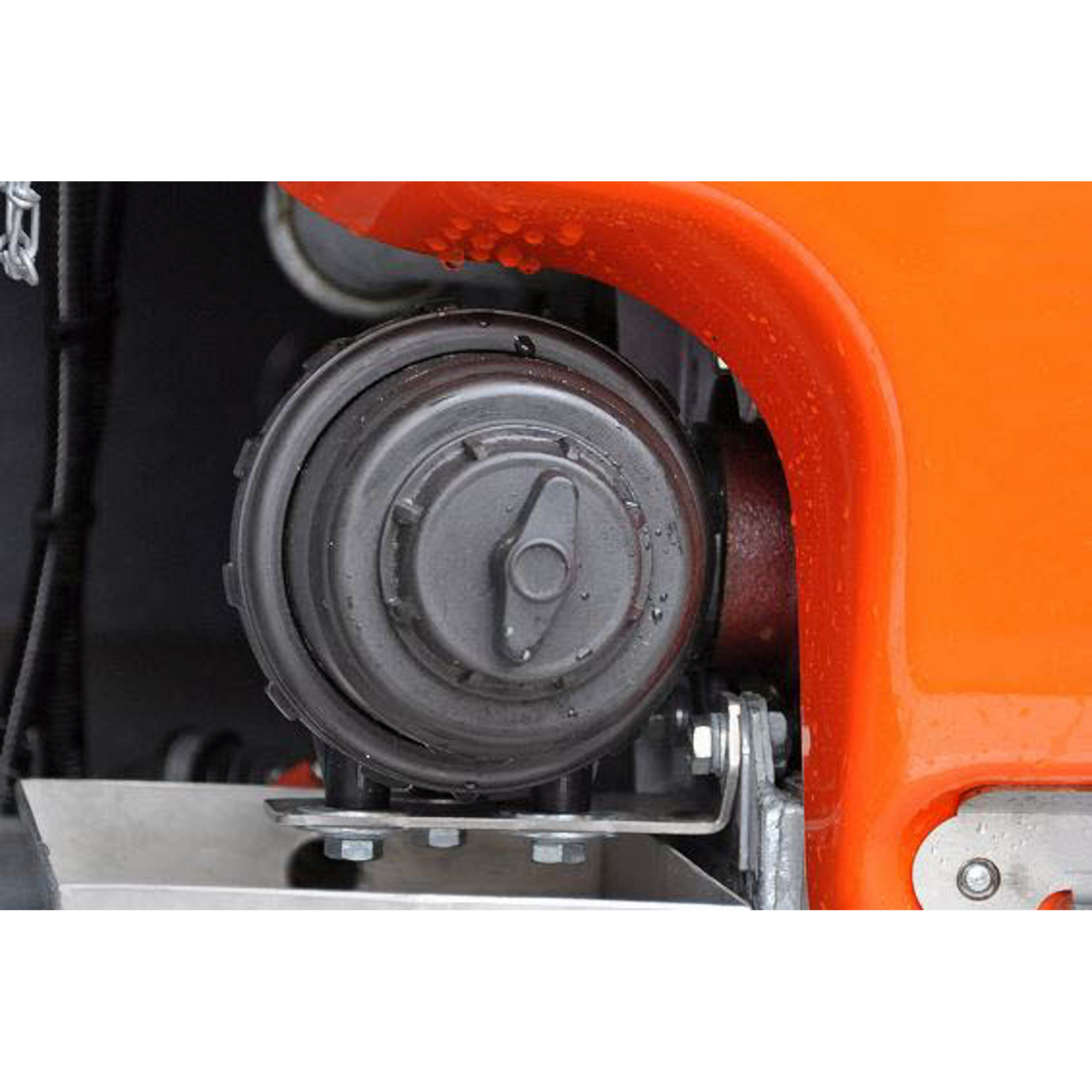

• Included Accessories: Spray nozzles, stepless pressure regulator, pressure gauge, water filter with automatic water stop and flushing element, spray lance with flat jet spray nozzle, and a machine-mounted spray nozzle rack.
