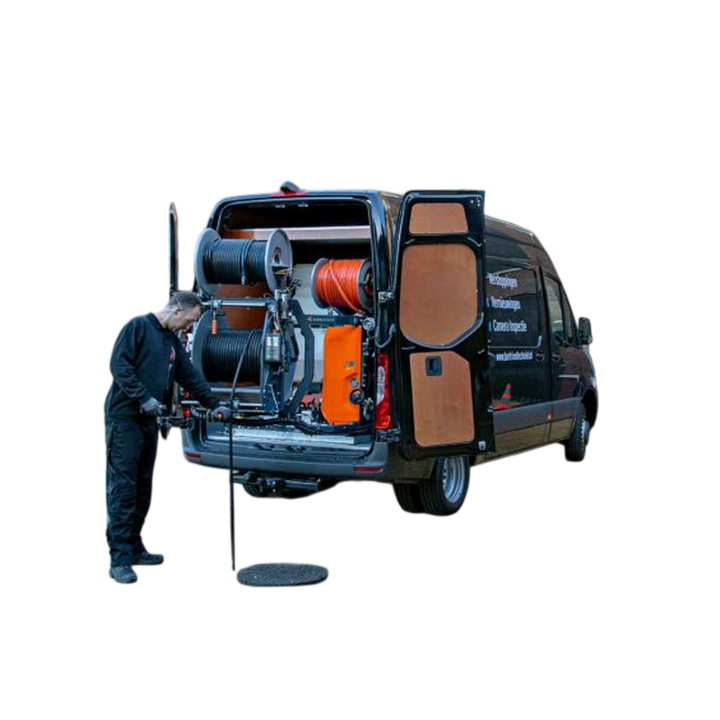

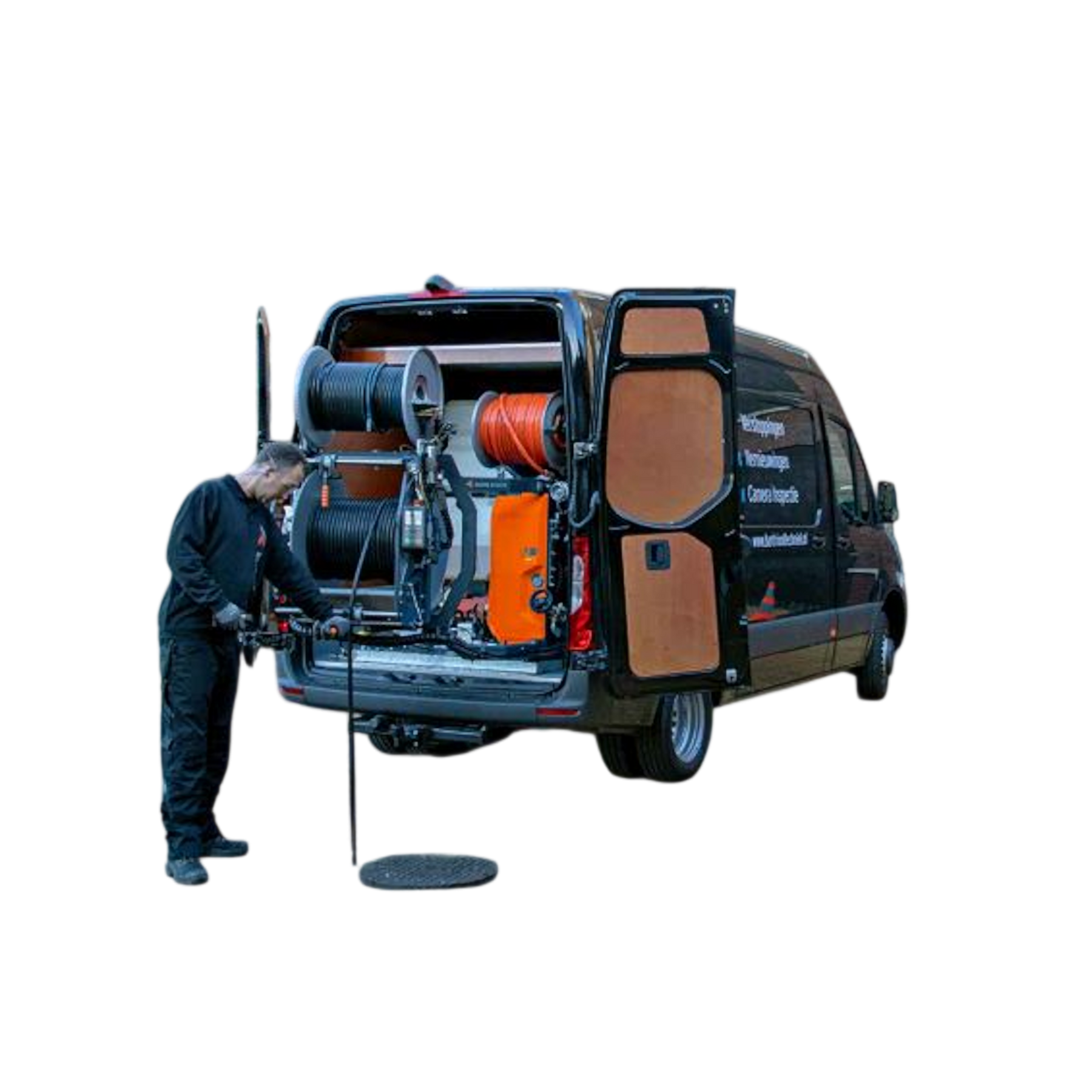

ROM EcoFit

• Pipe Maintenance: Unblocking and cleaning sewer lines and pipes up to 24 inches in diameter.

• Surface Cleaning: Façade, surface, and drainage cleaning, as well as light graffiti removal.

• 2,900 PSI - 20.0 GPM | 58 hp KUBOTA WG1605 EPA Tier 4 Industrial Gasoline Engine

• 2,900 PSI - 20.0 GPM | 50 hp KUBOTA D1803-CR-T EPA Tier 4 Diesel Engine

• 2,250 PSI - 26.5 GPM | 58 hp KUBOTA WG1605 EPA Tier 4 Industrial Gasoline Engine

• 2,200 PSI - 26.5 GPM | 50 hp KUBOTA D1803-CR-T EPA Tier 4 Diesel Engine

• 2,900 PSI - 26.5 GPM | 60 hp KUBOTA V2403-CR-T EPA Tier 4 Diesel Engine

• 2,300 PSI - 34.3 GPM | 60 hp KUBOTA V2403-CR-T EPA Tier 4 Diesel Engine

TECHNICAL CHARACTERISTICS:

• Insertion range: Max. 24" diameter

• Drive options:

  • 50 hp KUBOTA D1803-CR-T EPA Tier 4 Diesel Engine

  • 58 hp KUBOTA WG1605 Industrial Gasoline Engine

  • 60 hp KUBOTA V2403-CR-T EPA Tier 4 Diesel Engine

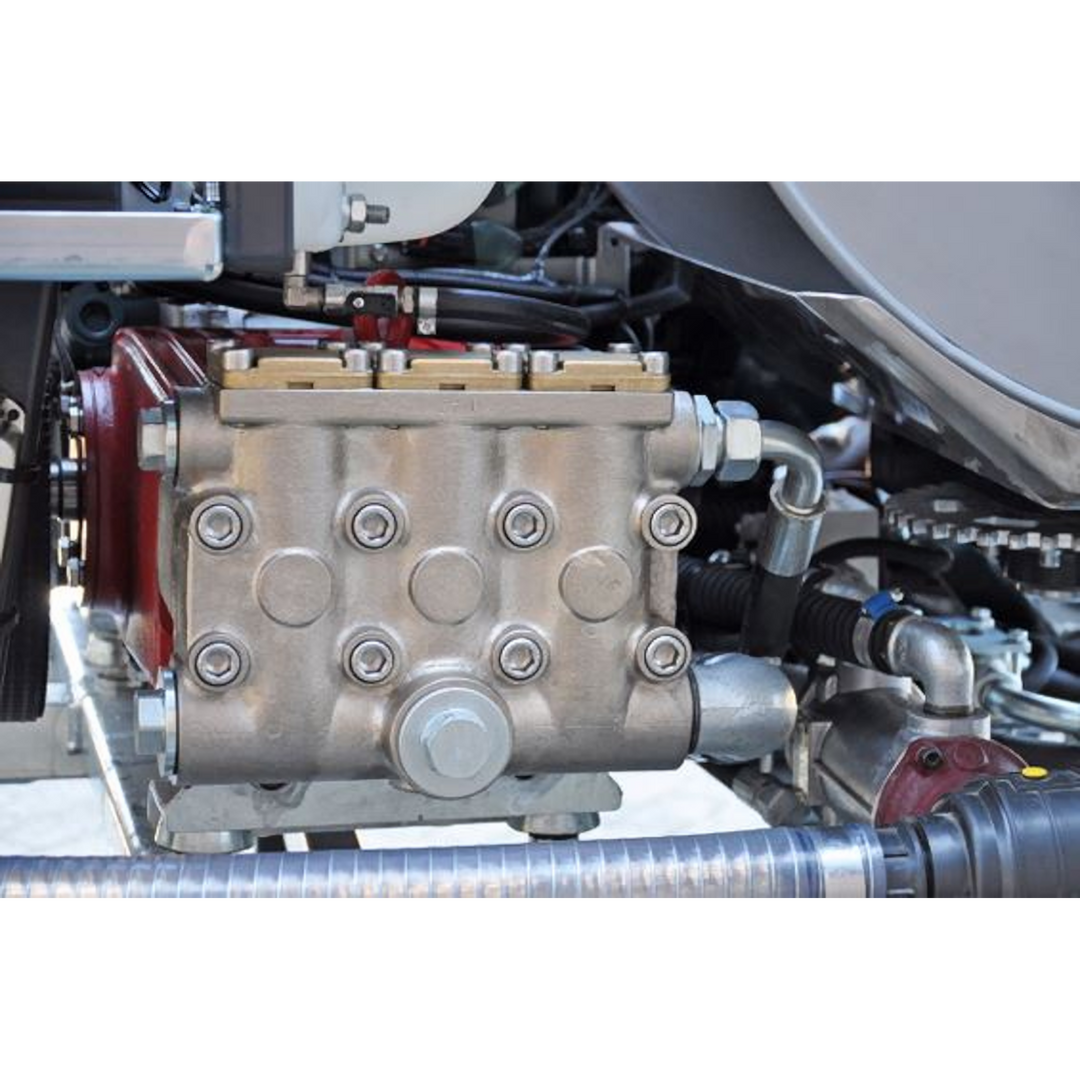

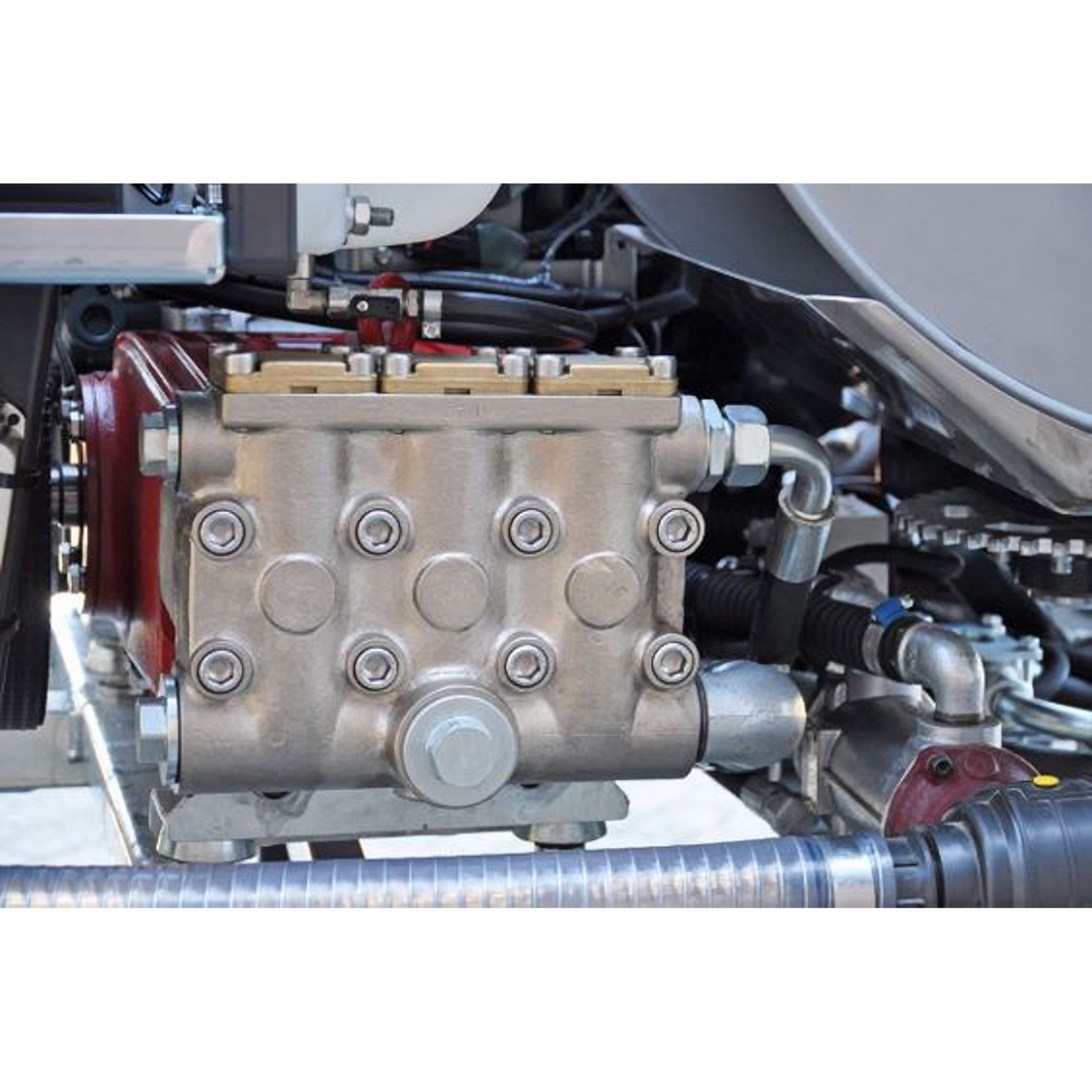

• High-pressure pump: Speck | 2,900 PSI - 20.0 GPM | 2,250 PSI - 26.5 GPM | 2,200 PSI - 26.5 GPM | 2,900 PSI - 26.5 GPM | 2,300 PSI - 34.3 GPM

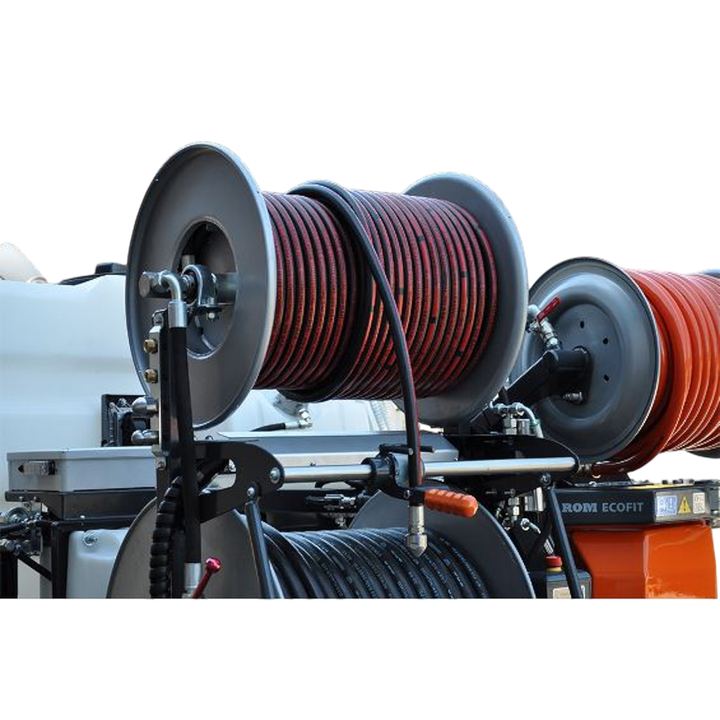

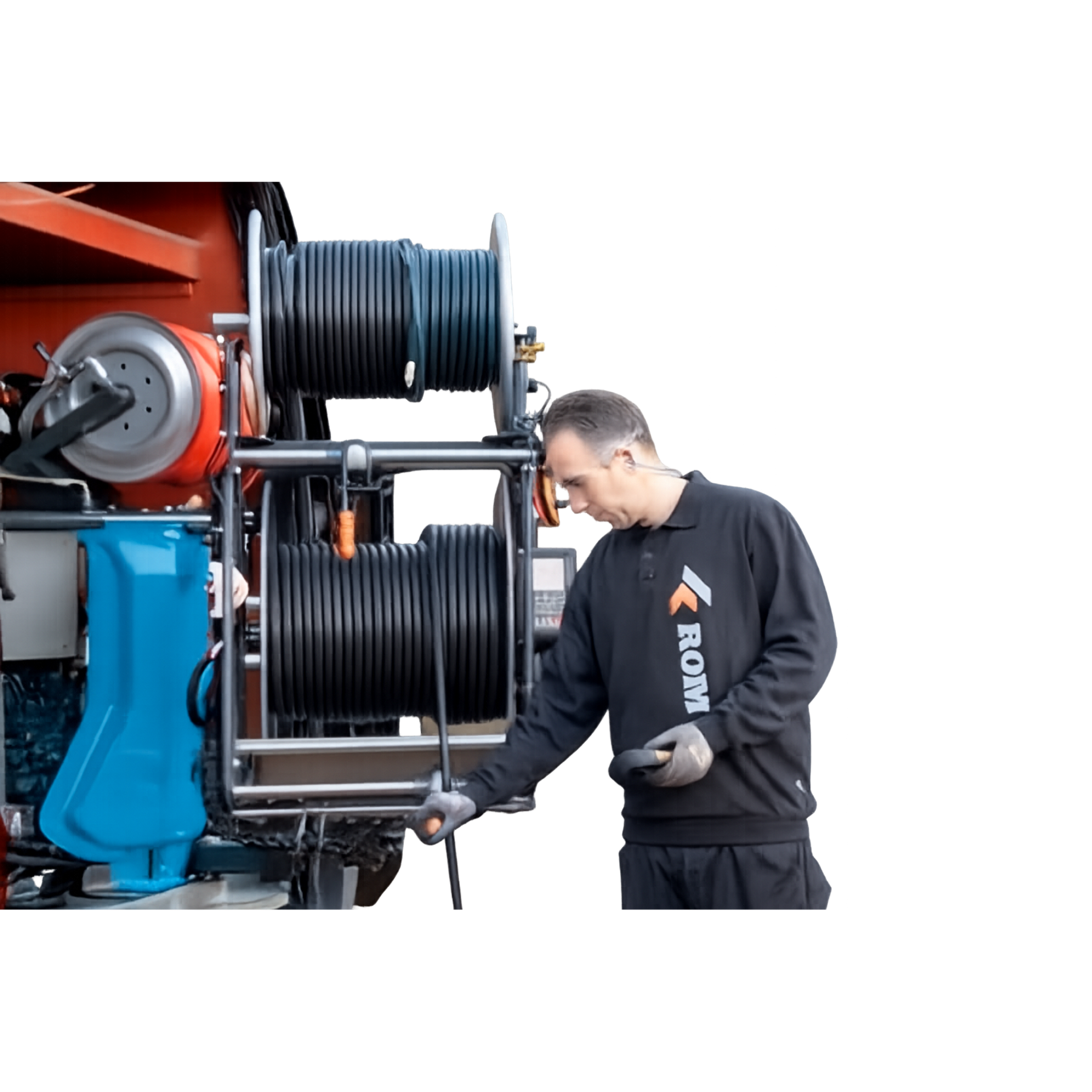

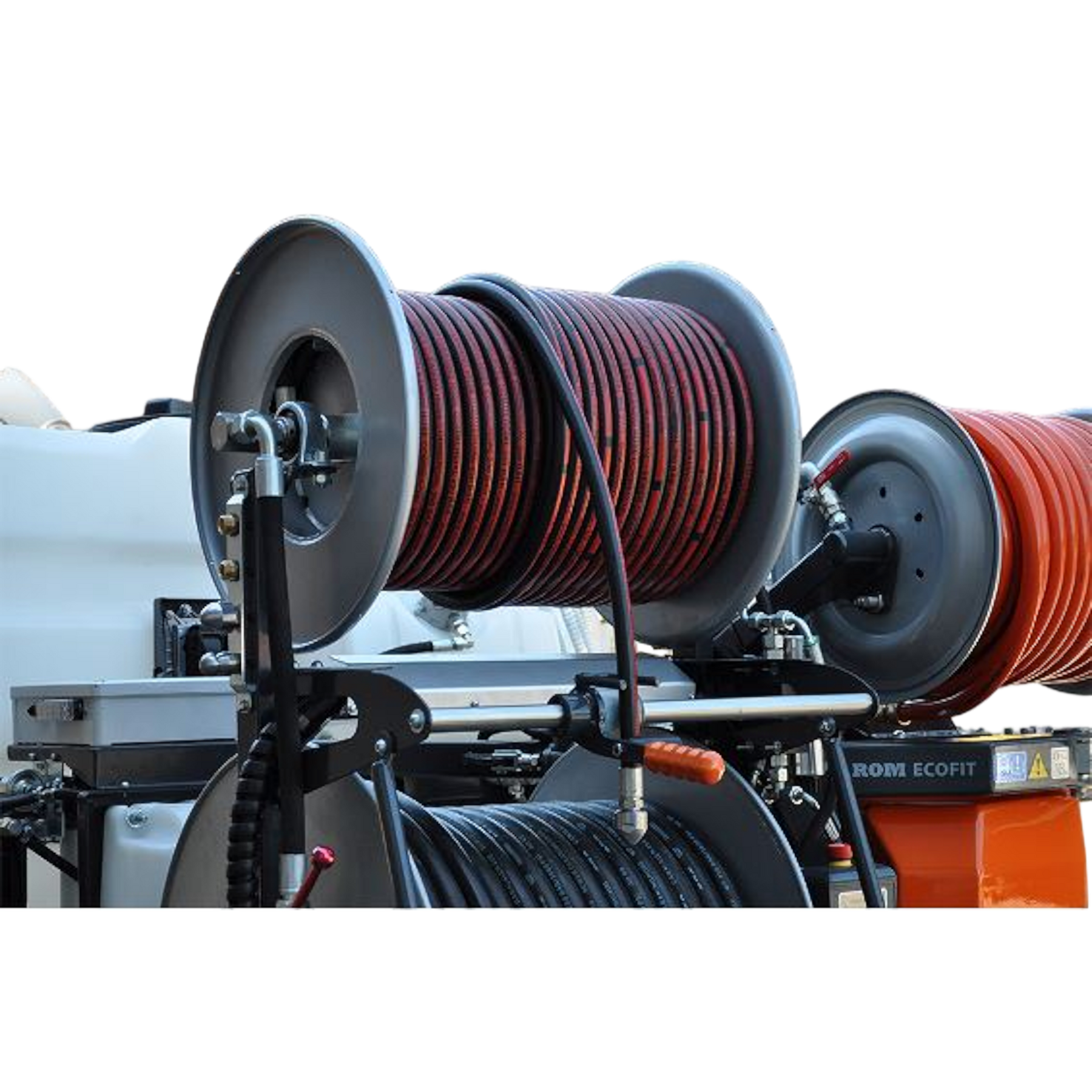

• Reel System: Two 270˚ rotatable and hydraulically operated reels (180˚ + 90˚)

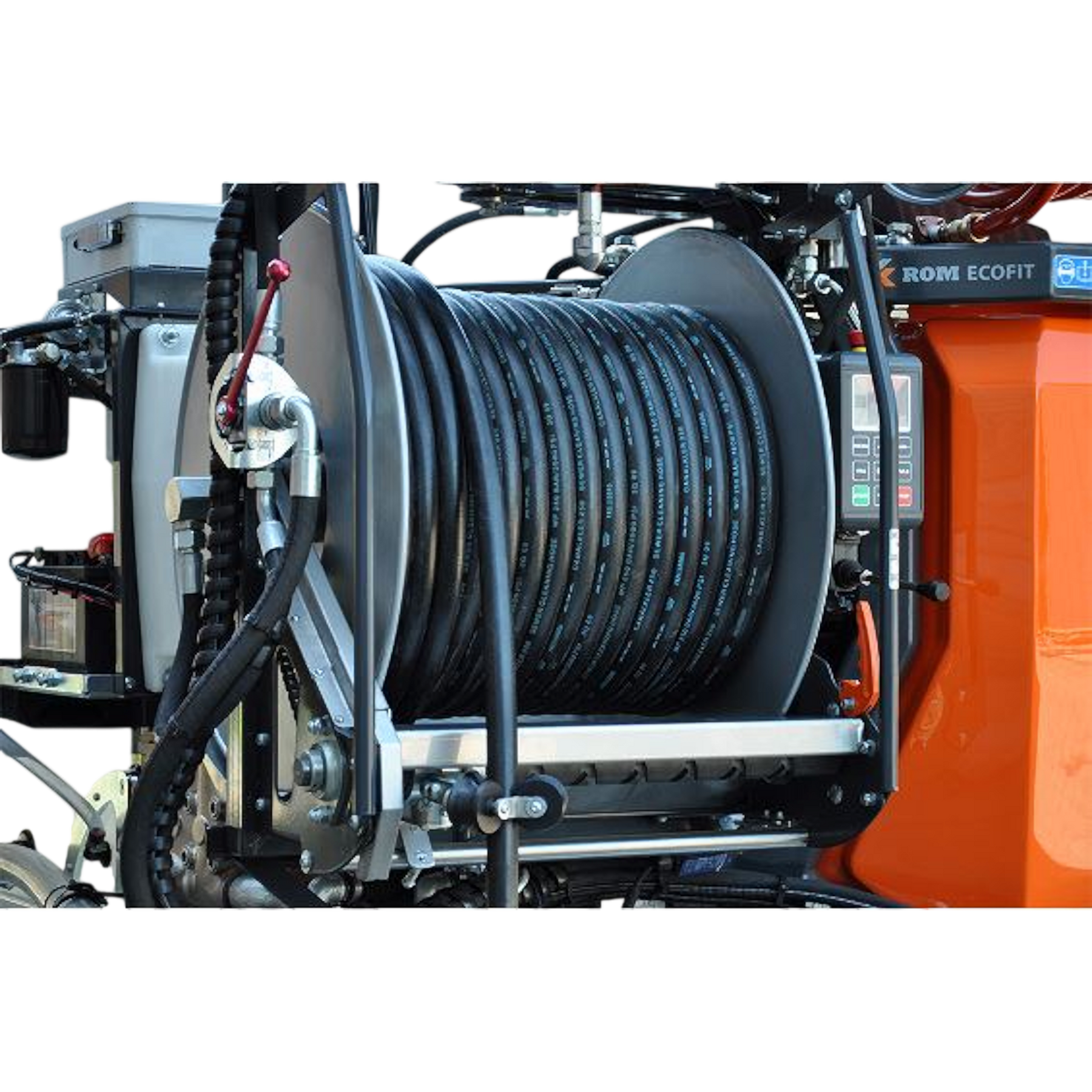

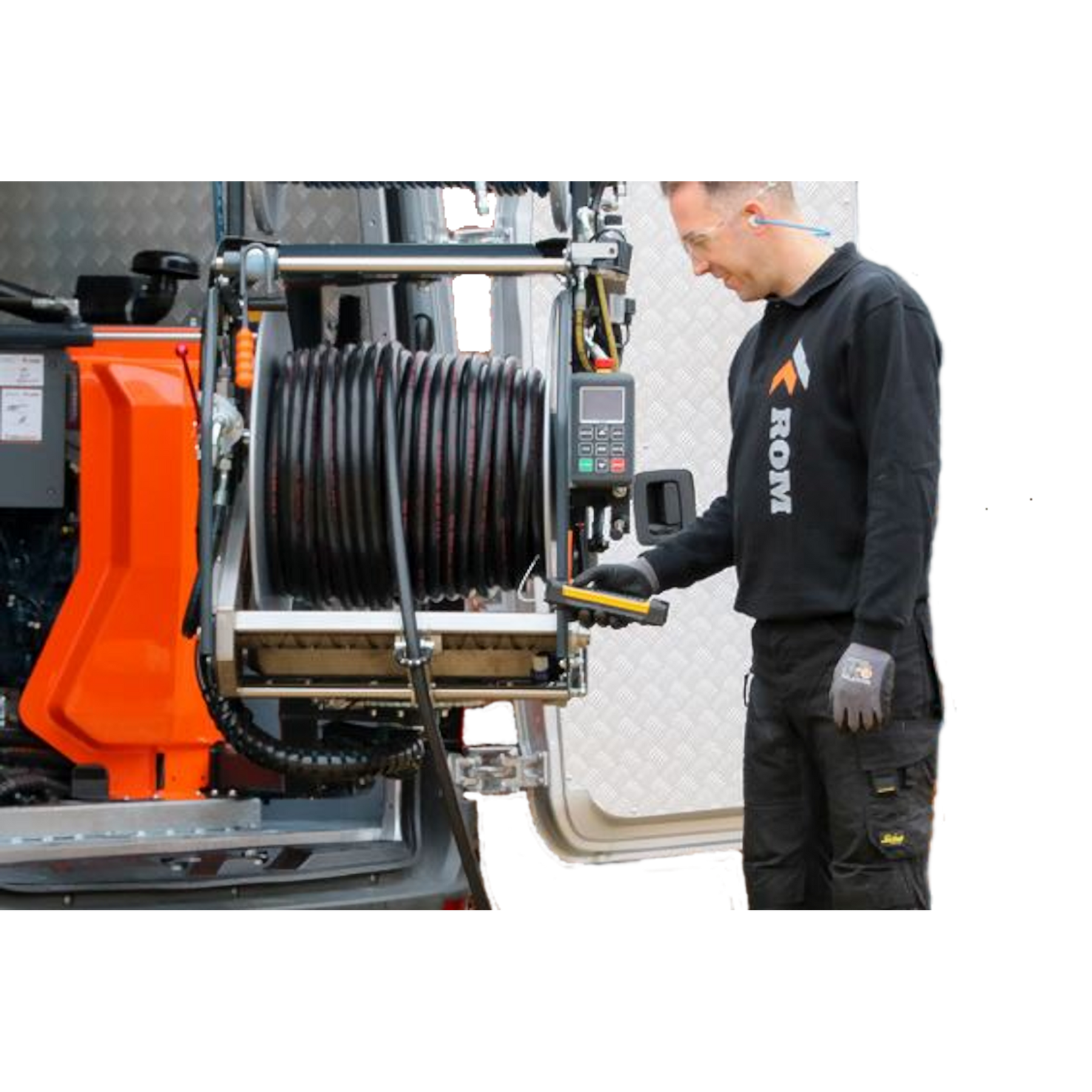

  • Reel 1 (Hydraulically driven high-pressure reel):

    • Max capacity of 394 ft. of 1/2”, 5/8”, or 3/4” Trelljet hose

    • Delivered with 262 ft. of 1/2”, 5/8”, or 3/4” high-pressure hose

    • Includes hose entry guide, rotating iROM control system, and stainless-steel drip tray

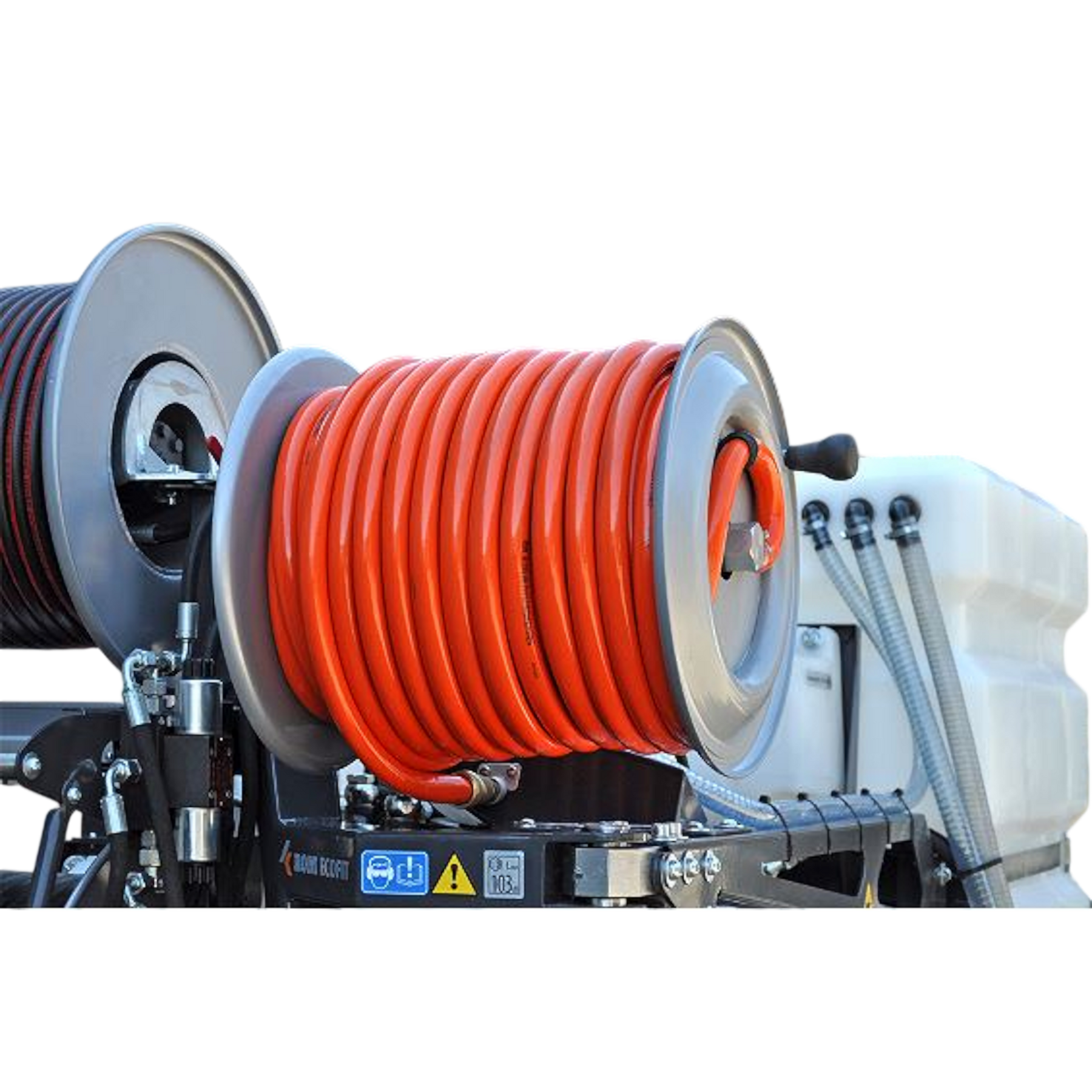

  • Reel 2 (Hydraulically driven water filling hose reel):

    • Includes 164 ft. of 3/4” water hose

    • Optional: Replace water filling reel with a 2nd hydraulically operated high-pressure reel (max capacity 394 ft. of 1/2” hose)

  • Reel 3 (Optional):

    • Extra, manually operated water filling hose reel including 164 ft. of 3/4” water hose. (Used if Reel 2 is upgraded to the 2nd high-pressure reel configuration).

• High-pressure pump protection: Dry-running protection

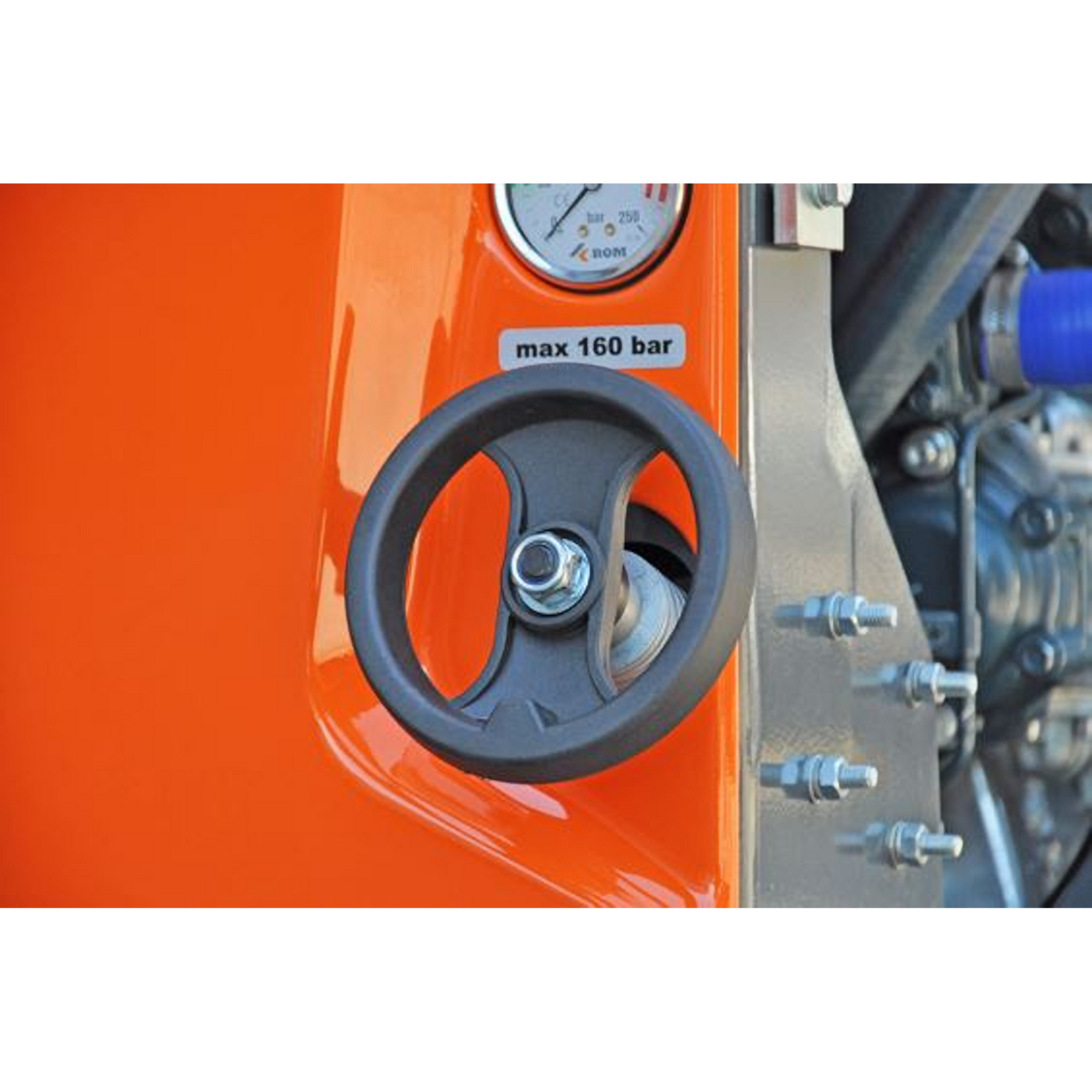

• Pressure regulator: Continuously adjustable

• Water tank capacity options: 211, 264, or 356 Gallons

• Fuel tank capacity: 8 Gallons

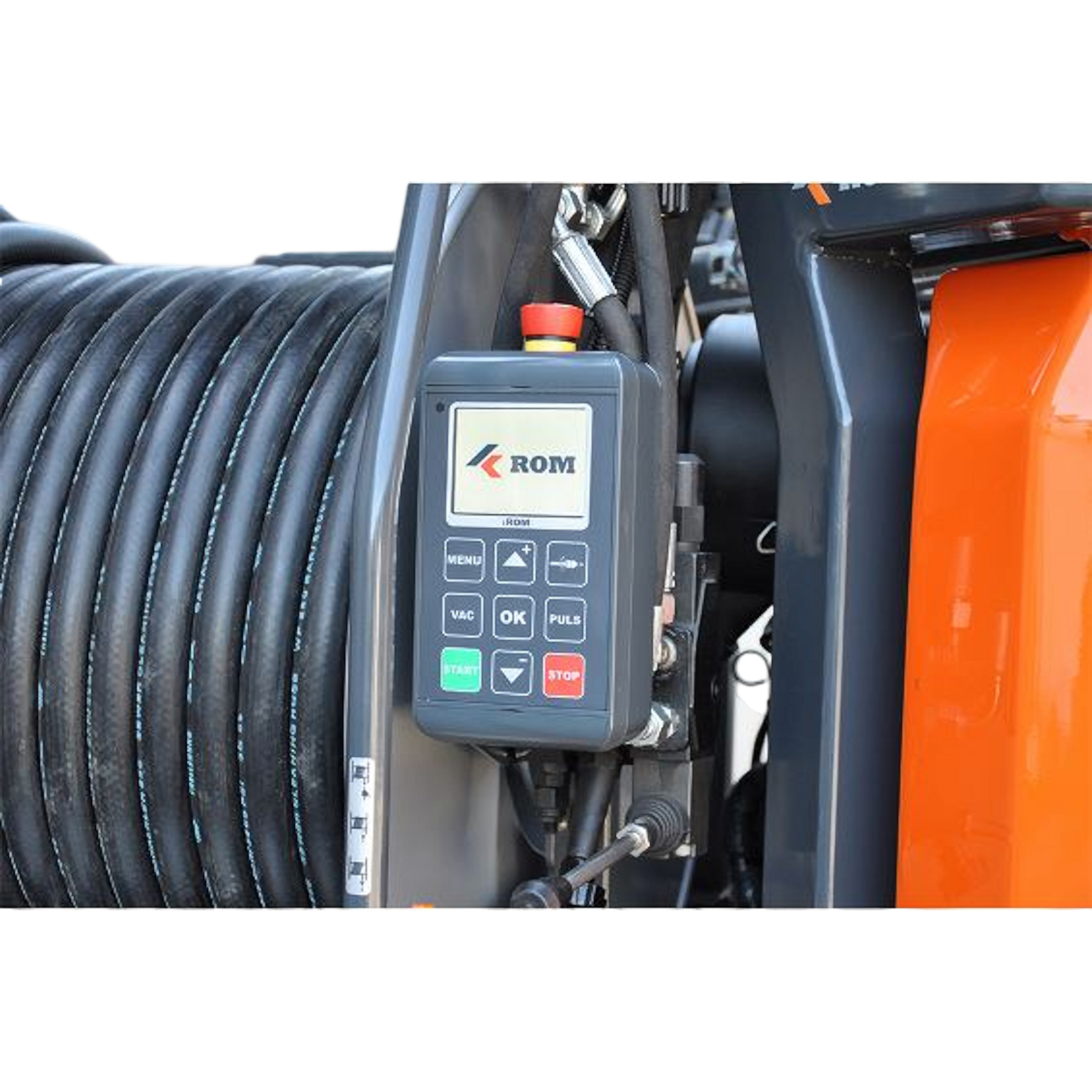

• Operation: iROM control system, including daylight display with hour meter, tachometer, and automatic service interval indicator.

• Remote control: Optional 8 or 10-button remote (press on/off, stepless speed control, LED feedback, emergency stop, and more)

• Weight: From 1,874 lbs.

• Dimensions (L x W x H): From 63.2" x 53.7" x 62.4"

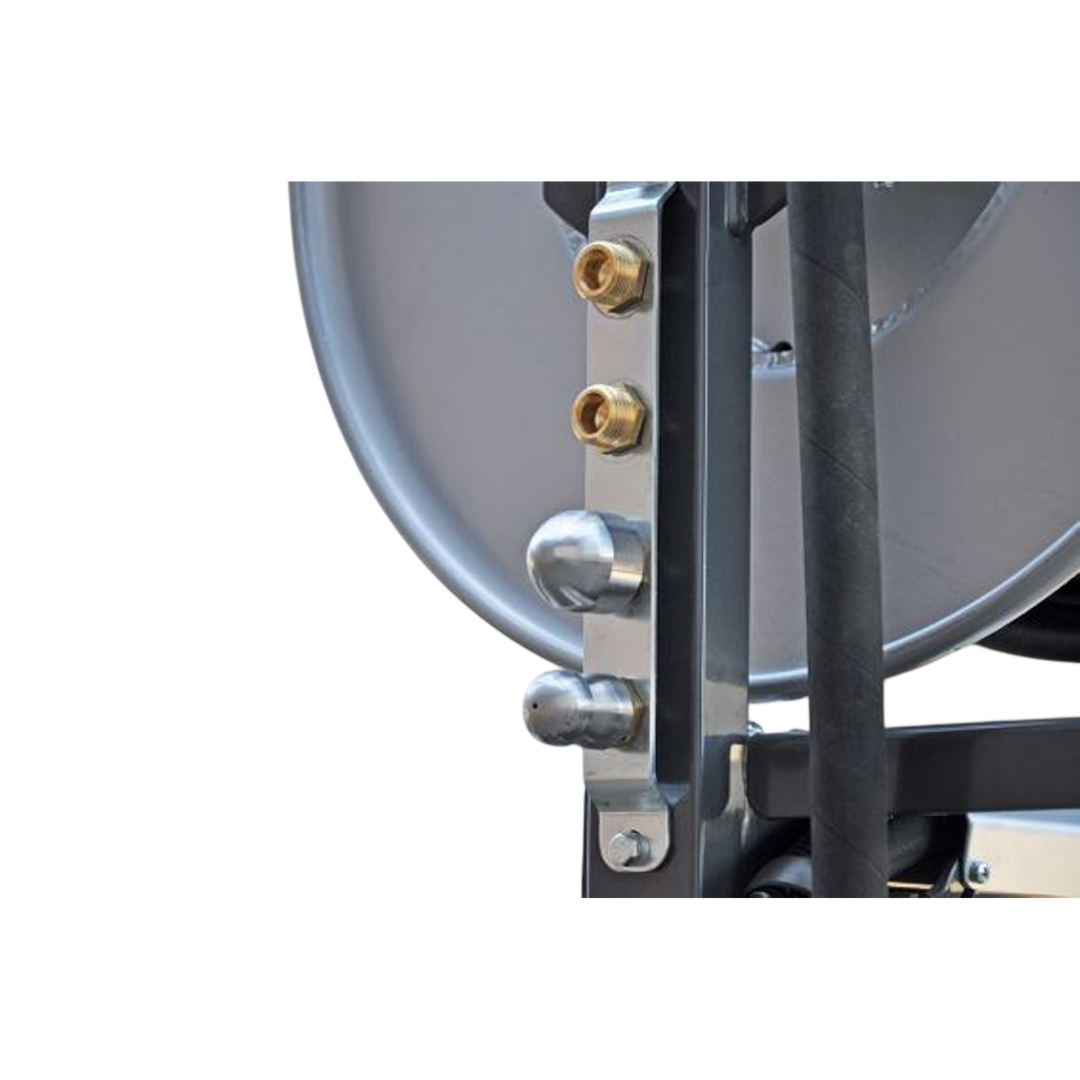

• Spray nozzles: Nozzle 33 with front jet and rear drive | Nozzle 36 rear jet

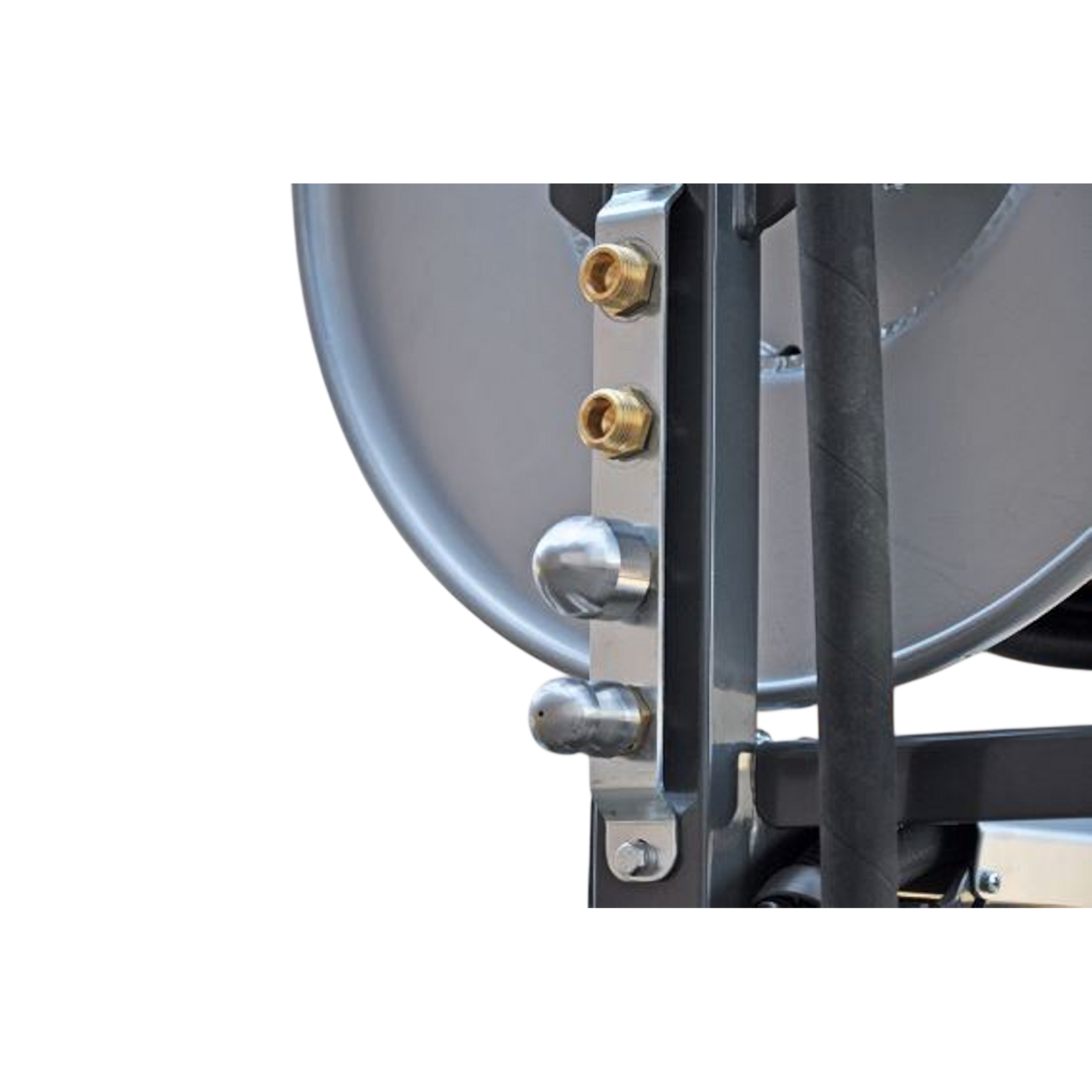

• Accessories: Spray lance with flat jet spray nozzle and machine-mounted nozzle rack

• Color: Orange cover, anthracite metal frame

STANDARD EQUIPMENT:

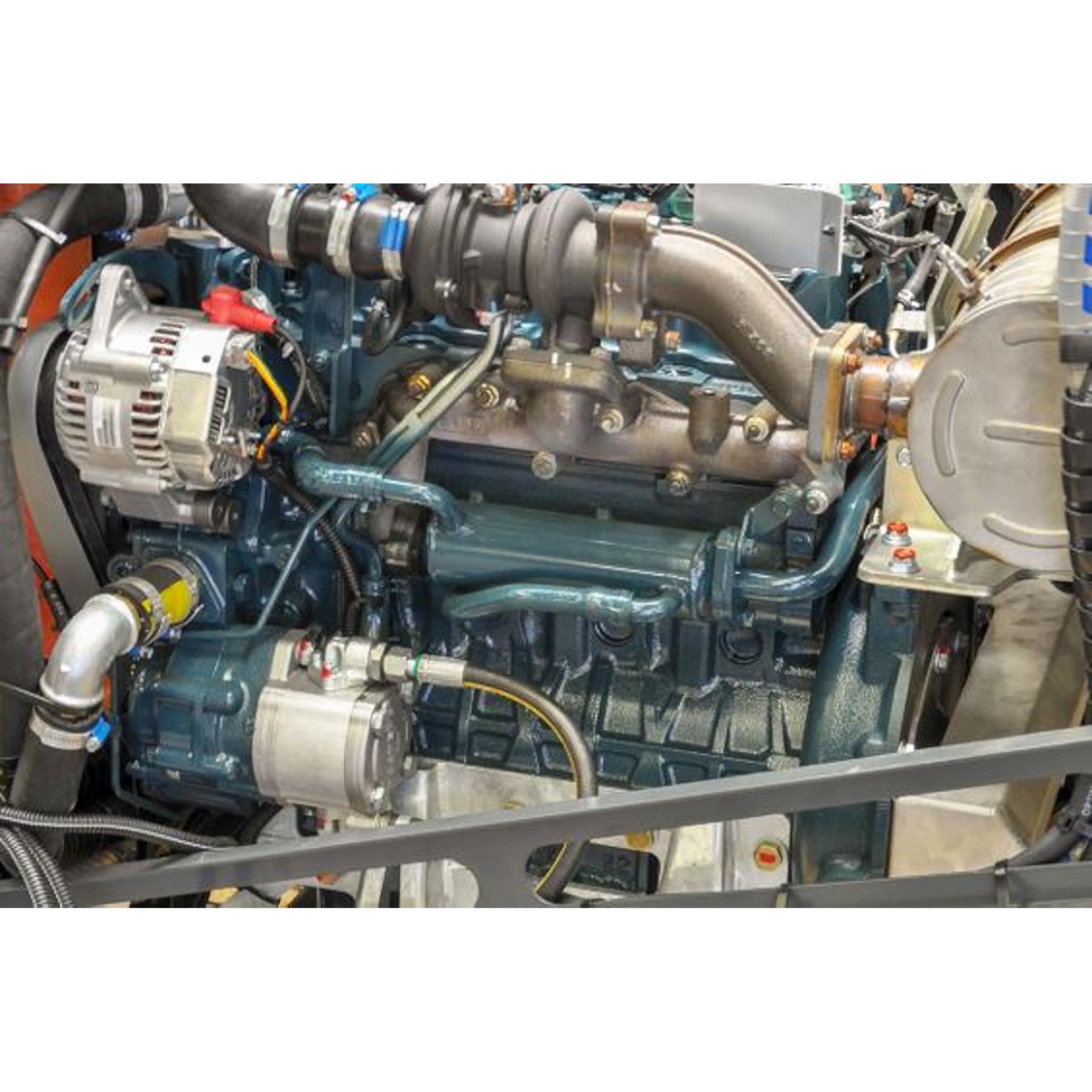

• Engine: Economical EPA Tier 4 Kubota engine. Meets current and future emissions requirements.

• Tanks: Large 211/264/356-gallon water tank and 8-gallon fuel tank

• Ignition: Electronic start-up system

• Reel Setup: Two 270˚ rotating and hydraulically operated reels (optional 3rd reel available)

• Reel Accessories: Hose entry guide, rotating iROM control system, and stainless-steel drip tray

• High-Pressure Hose: 262 ft. of 1/2”, 5/8”, or 3/4” high-pressure hose

• Filling Hose Reel: Includes 164 ft. of 3/4” water hose

• Control System: iROM operating system, including daylight display and waterproof touch-key operation (IP65)

• Pump Protection: Dry-running protection for the high-pressure pump

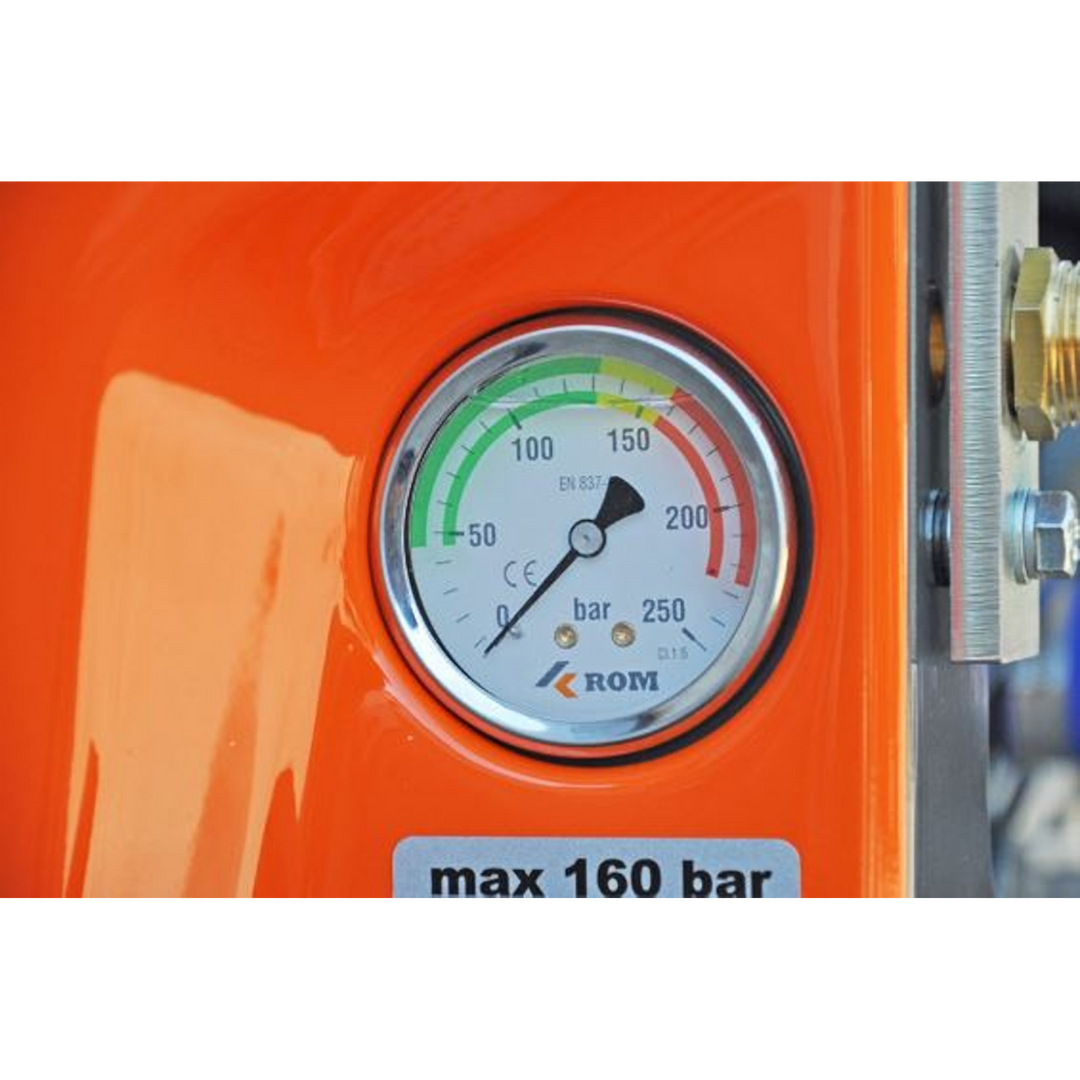

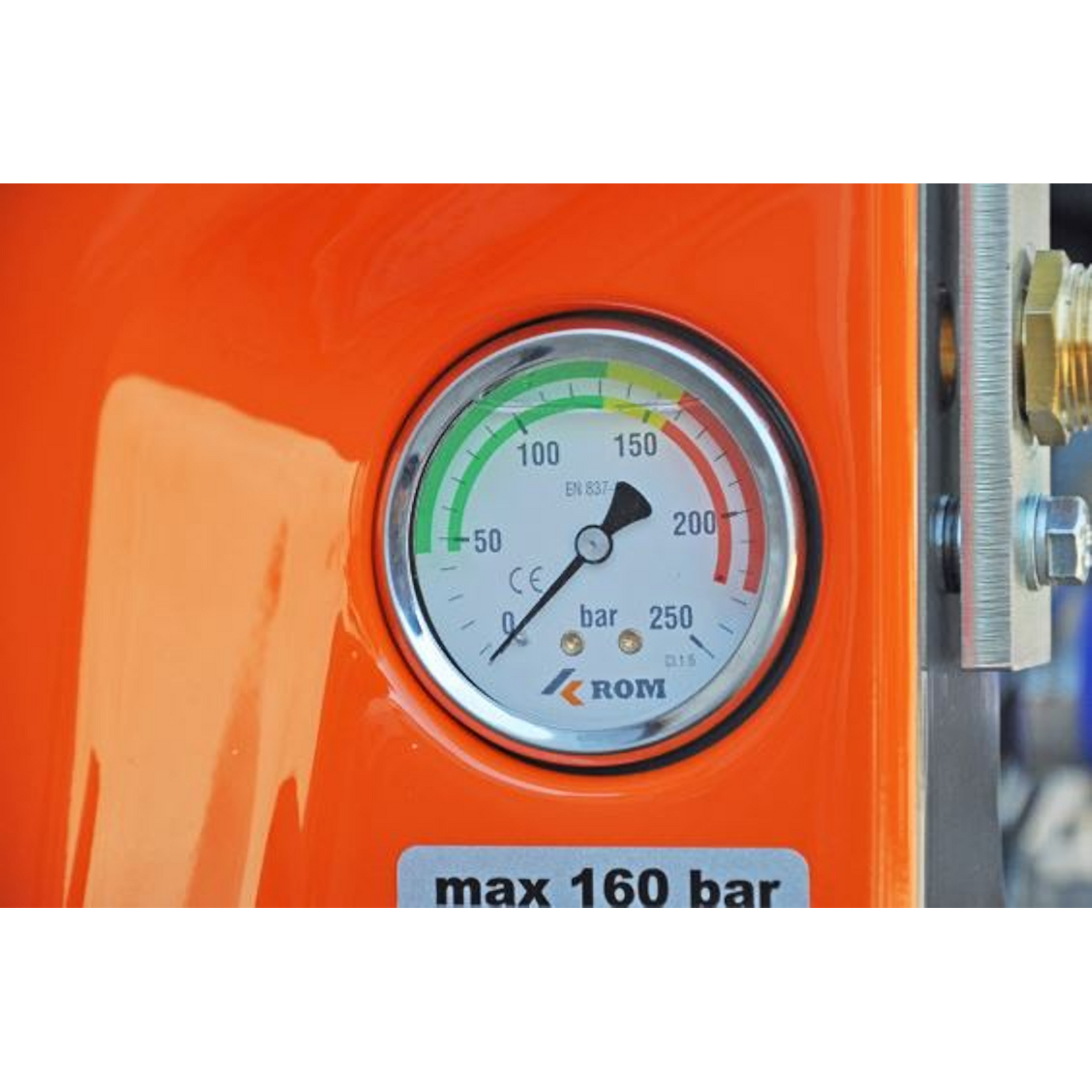

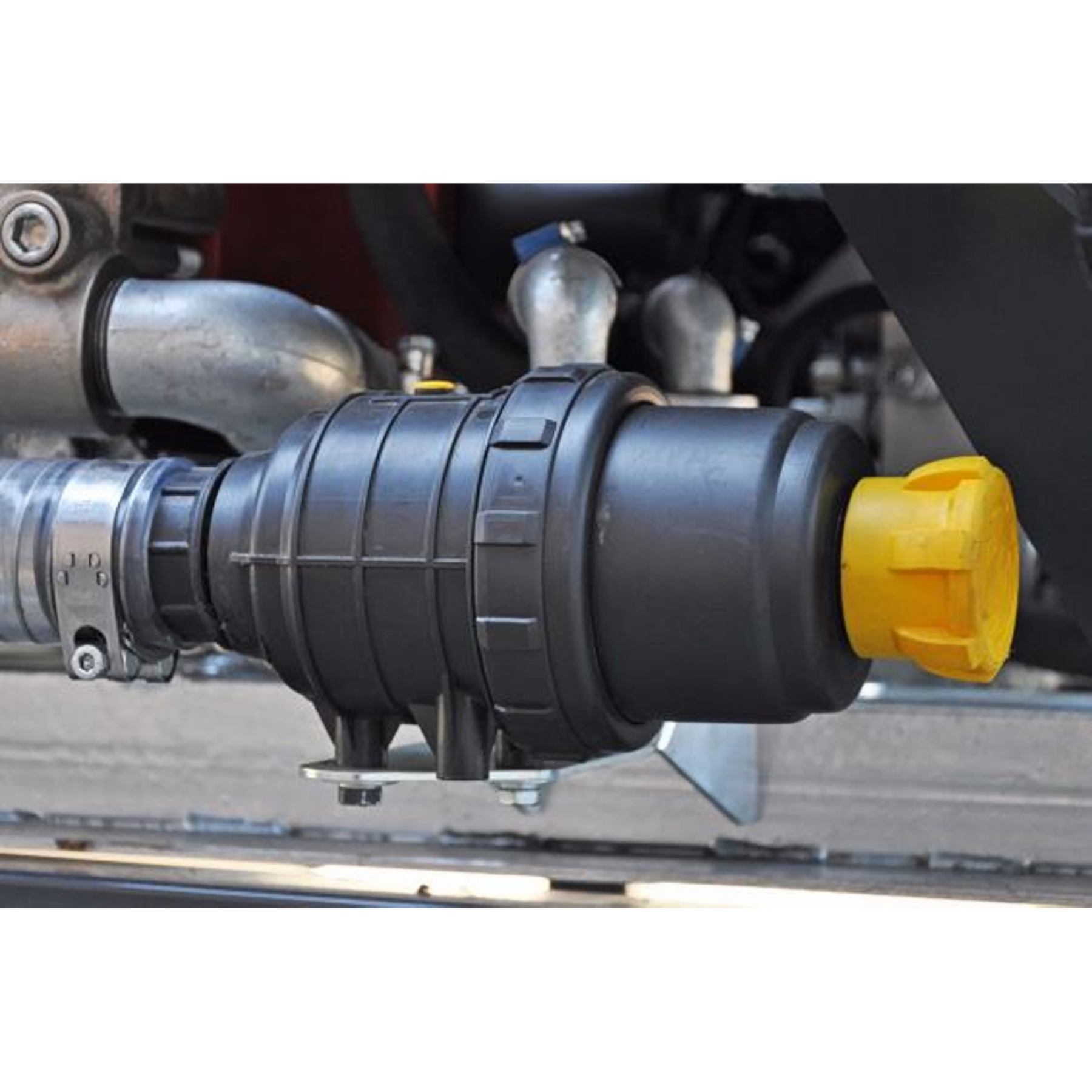

• Included Accessories: Spray nozzles, stepless pressure regulator, pressure gauge, water filter with automatic water stop and flushing element, spray lance with flat jet spray nozzle, and a machine-mounted spray nozzle rack.
